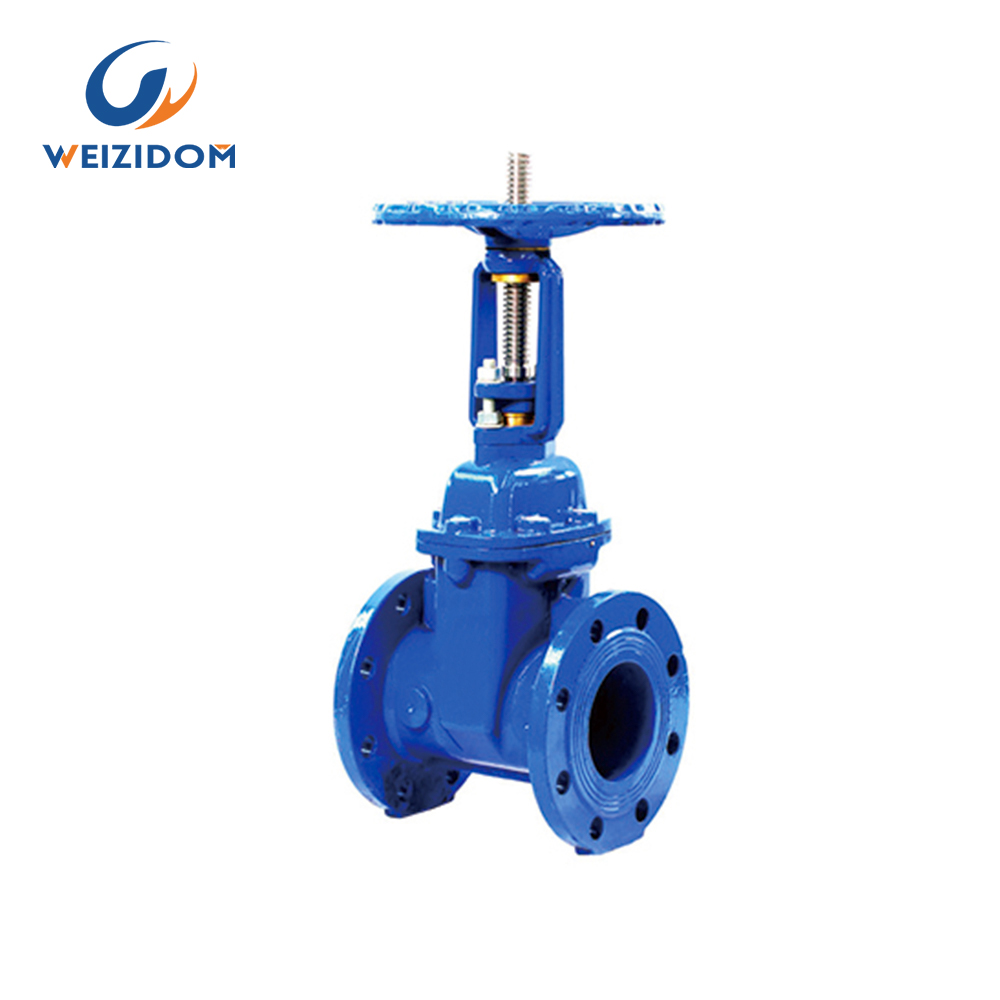

BS5163 rising stem soft seal gate valve-WESDOM Group

Product Introduction

BS5163 rising stem soft seal gate valve is one of the most widely used valves in various fluid transportation projects. In traditional gate valves, there are common phenomena such as fluid leakage and serious internal corrosion. Common soft-seal gate valves and stems on the market The shaft seal is easy to leak, and it is impossible to replace the seal ring under the condition of constant water and any opening. WESDOM elastic seat seal gate valve adopts a novel structural design, strict manufacturing technology, and high-performance new materials, which overcomes the traditional gate seal failure. The internal parts, especially the gate plate, are easy to be corroded and rubber elastic. Suitable for domestic water systems, water supply and drainage systems, sewage treatment systems, and chemical fluid transportation systems It can be used as a cut-off device on fluid pipelines in construction, urban environmental protection, petrochemical, pharmaceutical, food, metallurgy, textile, power and other industries (not suitable for throttling).

Why choose us!

WESDOM patent products, patent certification

The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards

for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

W
The product has an independent identity to ensure traceability

Each wesdom product has its own unique identification number, to ensure product traceability.

E
Provide material inspection report

All wesdom products can provide the material inspection report of the main parts.

S
One-stop service

One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

D
WESDOM has a lot of project experience

We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

O
WESDOM has a strict quality control system

WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

M

Quality Control Process

quality control process

Standard Test

test

Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang

and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

Factory

Workshop

Quality inspection

Workshop

Product show

Product show

Workshop

Detailed parameters

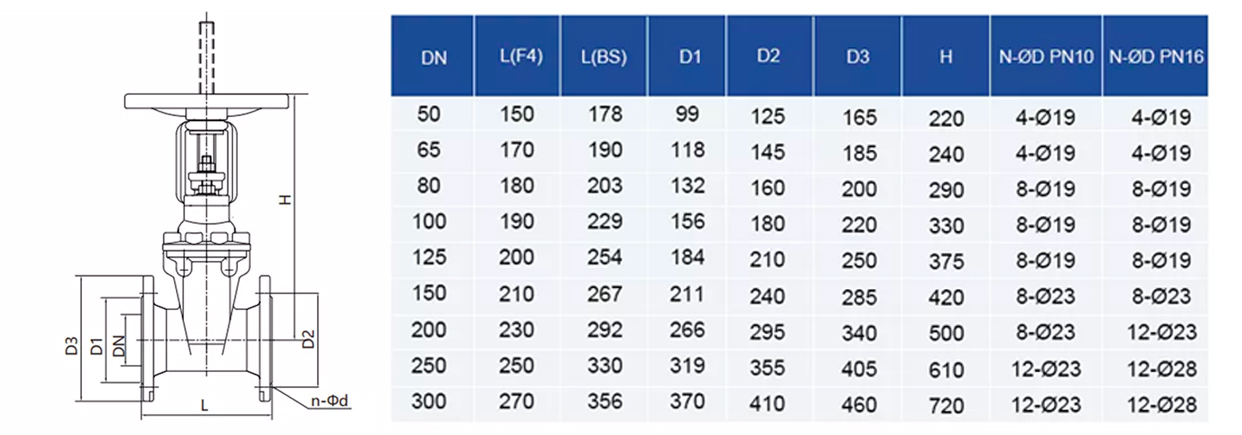

structure of gate valve

DN	L(F4)	L(BS)	D1	D2	D3	H	N-øD
DN	L(F4)	L(BS)	D1	D2	D3	H	PN10	PN16
50	150	178	99	125	165	220	4-ø19	4-ø19
65	170	190	118	145	185	240	4-ø19	4-ø19
80	180	203	132	160	200	290	8-ø19	8-ø19
100	190	229	156	180	220	330	8-ø19	8-ø19
125	200	254	184	210	250	375	8-ø19	8-ø19
150	210	267	211	240	285	420	8-ø23	8-ø23
200	230	292	266	295	340	500	8-ø23	12-ø23
250	250	330	319	355	405	610	12-ø23	12-ø28
300	270	356	370	410	460	720	12-ø23	12-ø28

Rising stem gate valves have the following advantages!

Easy to install and maintain

The relatively simple structure of the rising stem gate valve makes it easier to install and maintain.

W
Low flow resistance

The valve does not have any internal protrusions, and the resistance of the flow pipe is relatively small.

E
Good sealing

The sealing surface is flat and the sealing performance is good, there will be no air leakage, liquid leakage, and so on.

S
Wide range of applications

The rising stem gate valve is suitable for a variety of media, temperatures, pressure, pipe diameter, and other occasions.

D
High reliability

As it is the gate plate lifting to control the fluid flow, it will not be eroded or polluted by the medium and has a long service life.

O
Lower maintenance costs

The sealing ring of the resilient seated gate valve is made of highly elastic materials. It has a long service life and can save more maintenance costs.

At the same time, the valve body is made of ductile iron. The weight is about 20% to 30% lighter than the traditional valve. It is easy to install and

maintain and can reduce maintenance costs and time.

M

wesdom butterfly valve

Project Name: A customer in Pakistan purchases check valves, gate valves, pipe fittings, etc.

Main Products: ball valve check valve, gate valve, pipe fittings, etc.

Project Description:

The client in this case is from Pakistan and is a large-scale local valve distributor. They have their own store locally and often import some valves from abroad to store or supply to local customers.

This client has cooperated with WESDOM many times. Almost every once in a while, they will contact the foreign trade salesman of WESDOM. They bought a batch of valves from WESDOM and stocked them in their store.

Through many cooperations with WESDOM, the two sides have established a very close cooperative relationship. Of course, they contacted WESDOM without hesitation, and purchased check valves, gate valves, pipe fittings, etc. from WESDOM.

Client Feedback:

We have worked with WESDOM many times and have been very satisfied each time. We are very willing to maintain a long-term cooperative relationship with WESDOM.

Project Pictures:
