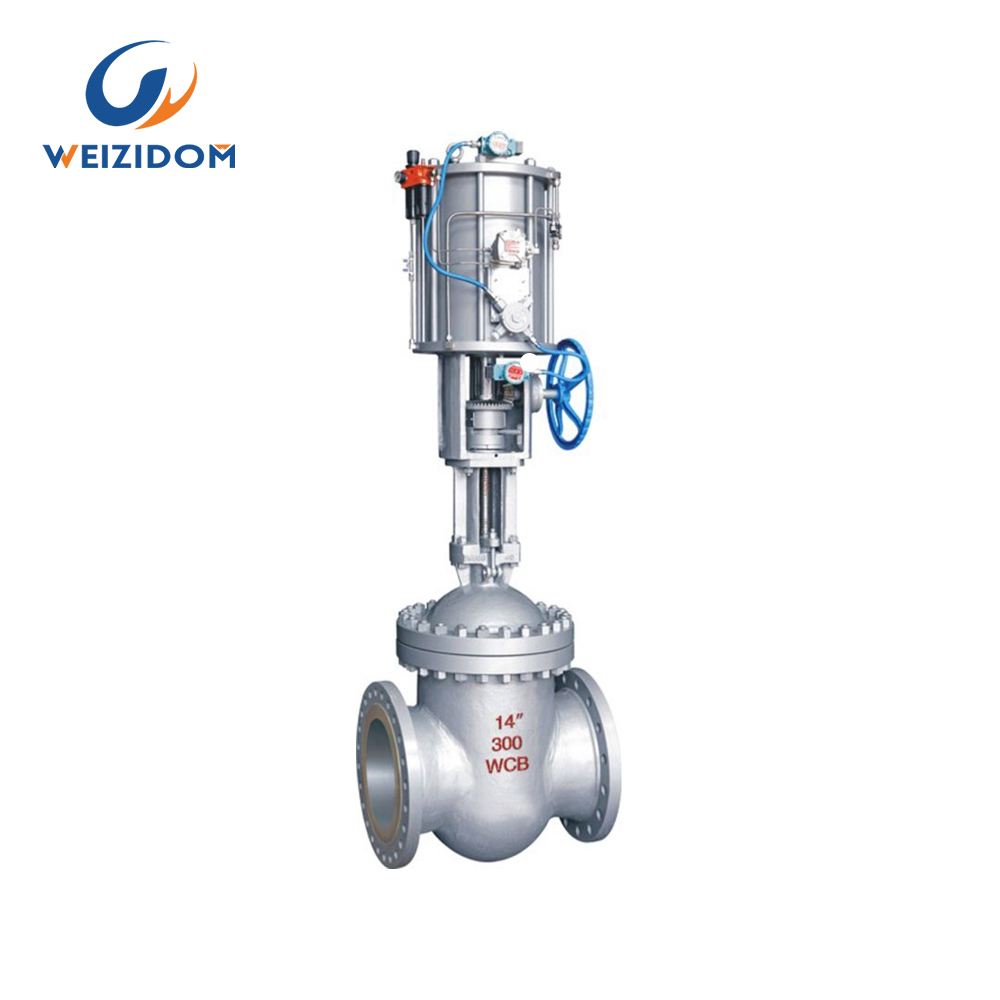

Pneumatic gate valve Control valve

Size:DN40-600

Pressure Rating:PN1.66.4,0.3-0.5MPa

Material: alloy steel,Stainless steel

Design Standard: API6D,ASME B16.34

Inspection Standard: API598

Application medium: gas, liquid

Application Temperature:-196-500℃

Product Introduction

Pneumatic gate valve Control valve, with the help of a valve driven by compressed air, when the gate valve is used, the sealing surface can only be used for sealing, that is, the pressure of the plate is sealed to the side of the sealing surface, and the sealing surface of the other sealing surface, this gate valve is forced to seal When the valve is closed, use external force to force the gate to press the seat to ensure the sealing of the valve sealing surface.

Why choose us!

  • Our advantage

    We’ve been in the valve industry for more than 25 years. WESDOM GROUP consists of 5 factories and 4 overseas branches. We face the global valve

    service.Its product classification is complete, the commonly used product size is sufficient, and you can buy it with confidence!

    A
  • Our Mission

    To be a high-quality supplier of fluid control systems and plan maker; To contribute our wisdom and strength to the development of the cutting-edge

    technology of fluid control systems.

    M

Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang and Wenzhou.

The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

Detailed parameters

Pneumatic gate valve

wesdom gate valve

1.The purpose is a right-angle rotation structure. It is used in conjunction with the valve positioner to realize proportional adjustment; the V-shaped spool is most suitable for various adjustment occasions. The adjustment performance is zero sensitive, the volume is small, and it can be installed vertically. Suitable for controlling gas, steam, liquid and other media.



2.Features: It is a right-angle rotary structure, consisting of a V-shaped valve body, a pneumatic actuator, a positioner and other accessories; it has an inherent flow characteristic of approximately equal percentage; it adopts a double bearing structure, with low starting torque and extremely high performance. Good sensitivity and induction speed; super shearing ability.



3.The pneumatic piston actuator uses compressed air as the power source, and drives the crank arm to rotate 90 degrees through the movement of the piston to automatically open and close the valve. Its components are: adjusting bolt, actuator box, crank arm, cylinder block, cylinder shaft, piston, connecting rod, universal shaft.



4.The working principle of the pneumatic control valve: the pneumatic control valve is composed of an actuator and a regulating mechanism. The actuator is the thrust component of the regulating valve, which generates corresponding thrust according to the size of the control signal pressure, and pushes the regulating mechanism to act. The valve body is the regulating part of the pneumatic regulating valve, which is in direct contact with the regulating medium to regulate the flow of the fluid.
