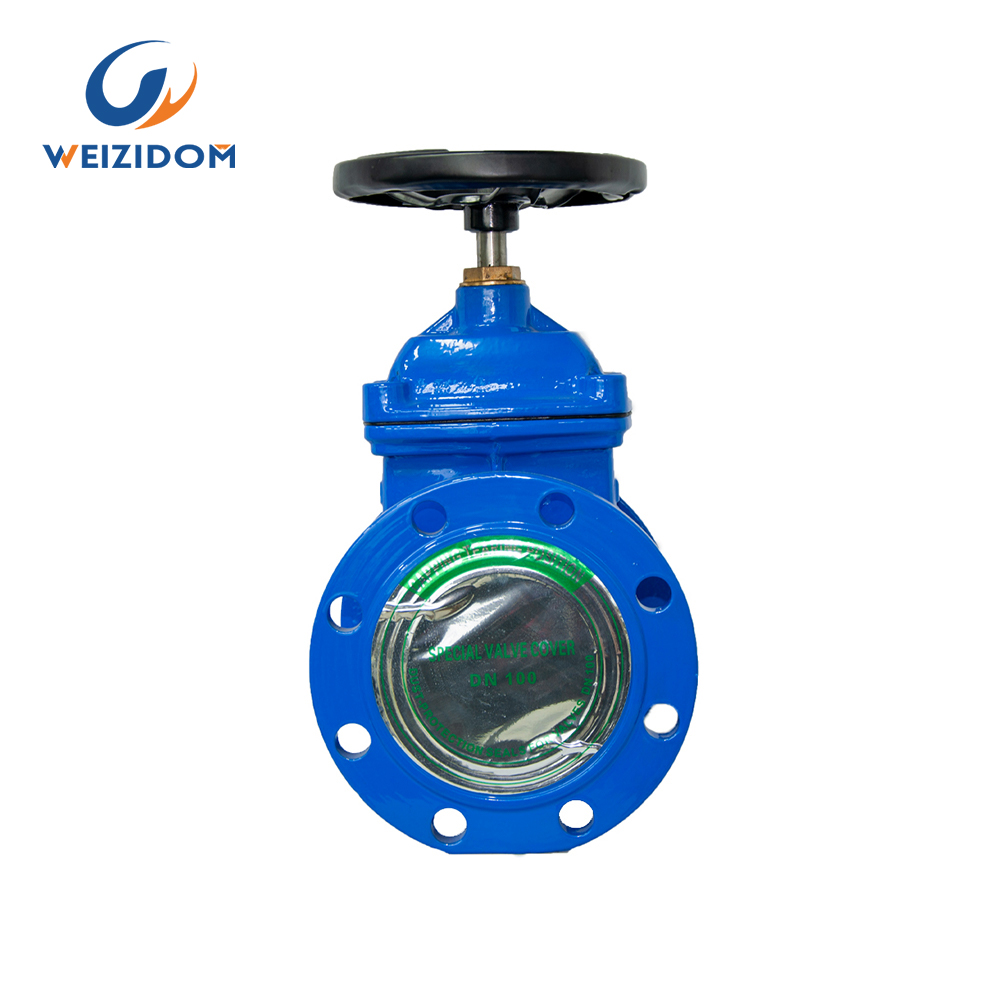

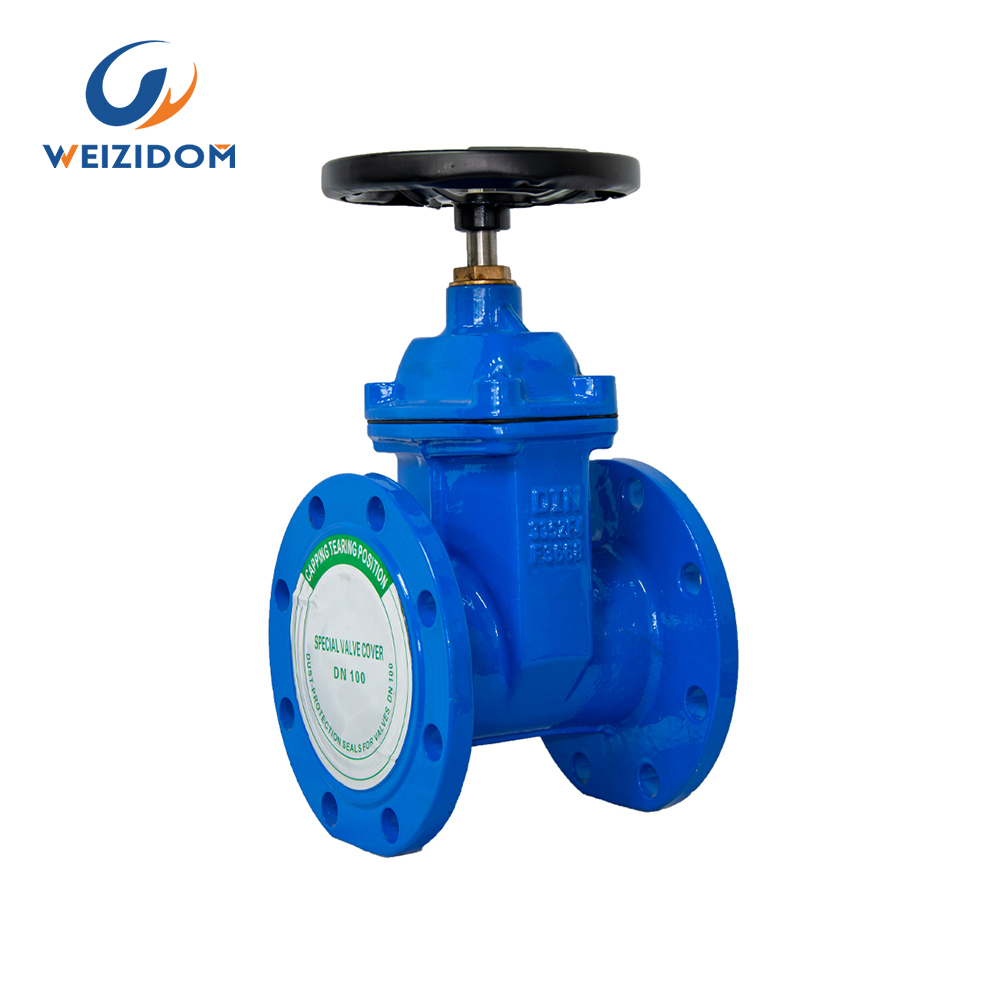

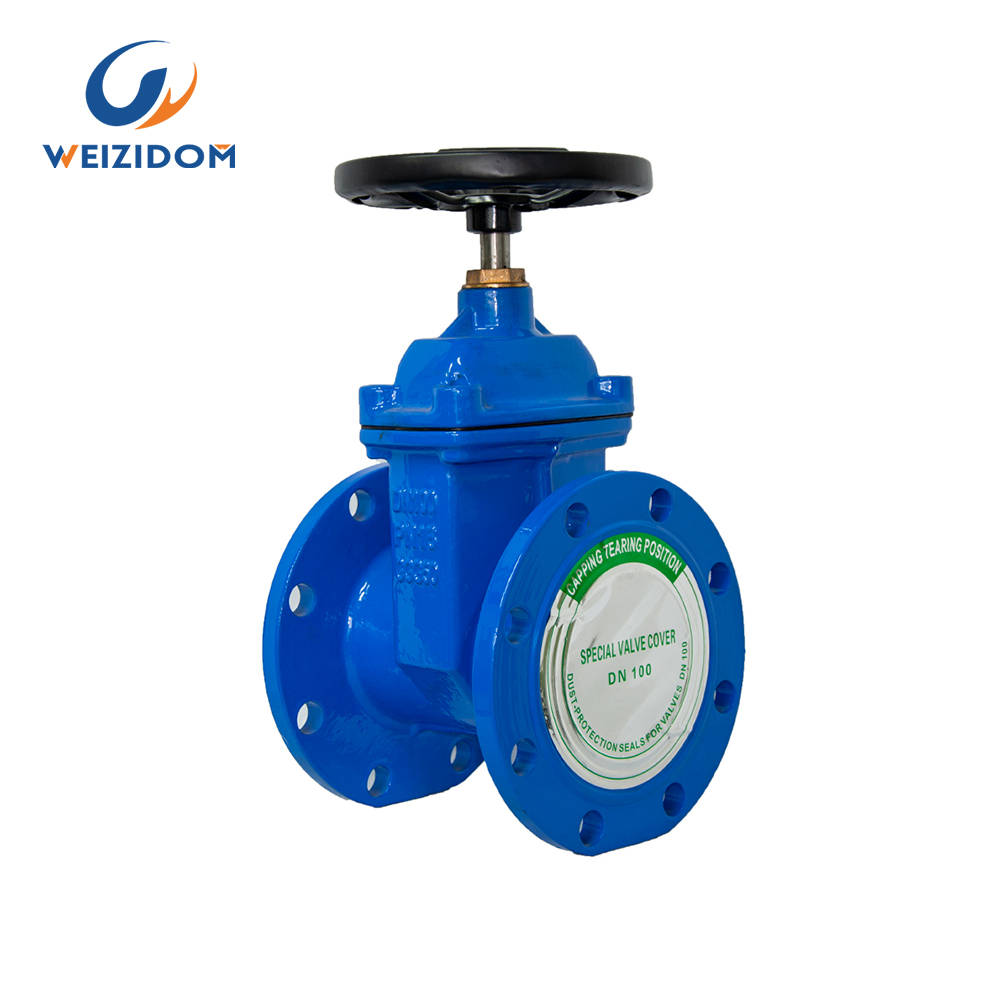

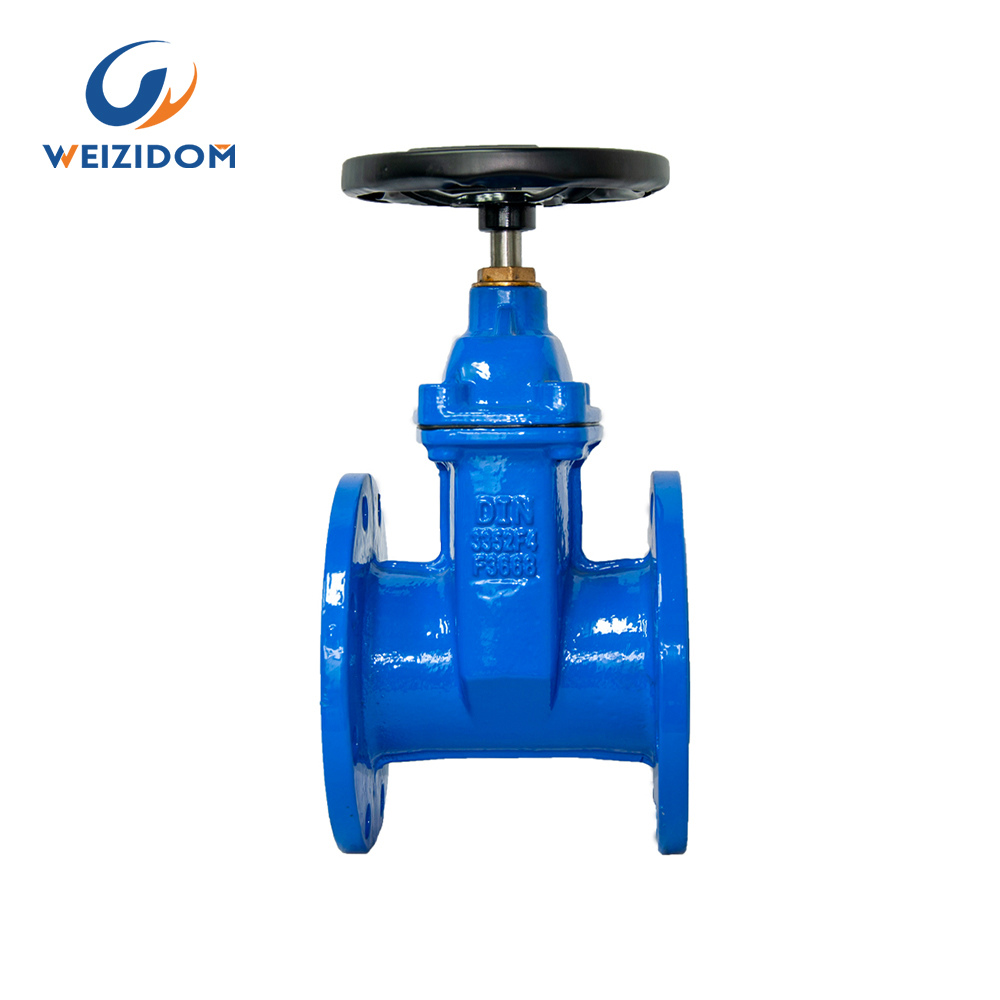

DIN F4 resilient seated gate valve

Diameter: DN40-600

Pressure: PN1.0 / 1.6mpa

Temperature: 0-80 ℃

Valve design: DIN3352-F4

Pressure test: DIN3230

Medium: Water, gas etc.

Send E-mail:info@wsdvalve.com Mobile: +86-173197327665

Product Introduction

DIN F4 resilient seated gate valve is a new type of valve equipment. It is characterized by the use of soft materials such as rubber rings between wedge discs and seats to achieve sealing. Compared with the traditional hard and dense sealing valve, the sealing and performance have obtained a lot promote. The soft sealing gate valve provides a tightening force through high-quality spring and pressure plates to achieve a better sealing effect. It can adapt to different working environments and needs. The soft sealing gate valve has the advantages of sealing reliability, long service life, and energy saving and consumption reduction. It is widely used in the fields of power stations, pharmaceuticals, chemicals, and sewage treatment. Due to the sealing ring of the soft sealing gate valve being made of highly elastic materials, it has a long service life, and it is also helpful to reduce maintenance costs.

Why choose us!

  • WESDOM patent products, patent certification

    The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards

    for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

    W
  • The product has an independent identity to ensure traceability

    Each wesdom product has its own unique identification number, to ensure product traceability.

    E
  • Provide material inspection report

    All wesdom products can provide the material inspection report of the main parts.

    S
  • One-stop service

    One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

    D
  • WESDOM has a lot of project experience

    We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

    O
  • WESDOM has a strict quality control system

    WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

    M

Quality Control Process

quality control process

Standard Test

test



Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

Detailed parameters

DIN F4 resilient seated gate valve

DN L D K G N-ød
PN16  PN25   PN16  PN25  PN16 PN25  PN16 PN25
40 165 150 150 110 110 19 20 4-ø19 4-ø19
50 178 165 165 125 125 19 20 4-ø19 4-ø19
65 190 185 185 145 145 19 22 4-ø19 8-ø19
80 203 200 200 160 160 19 22 8-ø19 8-ø19
100 229 220 235 180 190 19 24 8-ø19 8-ø23
125 254 250 270 210 220 19 28 8-ø19 8-ø26
150 267 285 300 240 250 19 30 8-ø23 8-ø26
200 292 340 360 295 310 20 32 12-ø23 12-ø26
250 330 405 435 355 370 22 12-ø28 12-ø30
300 356 460 485 410 430 25 38 12-ø28 12-ø30

wesdom gate valve

Advantages of resilient seated gate valve!

  • Overall rubber coating

    The overall coating of the inside and outside of the disc is used with high-quality rubber, and the domestic leading rubber vulcanization technology is

    used to keep the valve that maintains accurate geometric size. More importantly, the high stickiness between rubber and disc sticks the rubber stably

    together and has good elastic memory.

    W
  • Strong corrosion resistance

    The valve body is coated with epoxy resin powder to prevent the valve from corrosion and rust, and the valve can be used for the wastewater system.

    It is difficult to break, and the traditional gate valve has broken due to impact or collision with other objects. The new valve body material is ductile

    iron, which significantly reduces the broken condition of this material.

    E
  • Non -toxic epoxy resin coating

    Due to the internal and non-toxic epoxy resin coating inside the valve body, the surface of the inside and outside of the valve is completely covered

    with rubber. Rust or corrosion will not occur, which ensures that the water can drink.

    S
  • The valve body uses precision casting

    The valve body is made of precision, and the precise geometric shape makes it possible to ensure the sealing of the valve without any other

    processing inside the valve.

    D
  • Better sealing performance

    The soft sealing gate valve uses soft materials such as rubber to achieve sealing between the wedge disc and the seat. The sealing effect is

    better; it can adapt to a complex environment and has higher sealing reliability and service life.

    O
  • Lower maintenance costs

    The sealing ring of the soft sealing gate valve is made of highly elastic materials. It has a long service life and can save more maintenance

    costs. At the same time, the valve body is made of ductile iron. The weight is about 20% to 30% lighter than the traditional valve. It is

    easy to install and maintain and can reduce maintenance costs and time.

    M
  • Smaller traffic noise

    The material of the soft sealing gate valve can effectively reduce the flow noise of the fluid through the valve, make it work more stable,

    and be suitable for occasions with higher requirements for flow noise.

    S



wesdom butterfly valve

Project Name: Laos Water Project Treatment

Main Products: Soft seal gate valve, ductile iron fittings

Client Feedback:

Very satisfied with the products received, and have been applied to the project, and will order more products from WESDOM;

Project Pictures:







wesdom gate valve

WESDOM GATE VALVE
