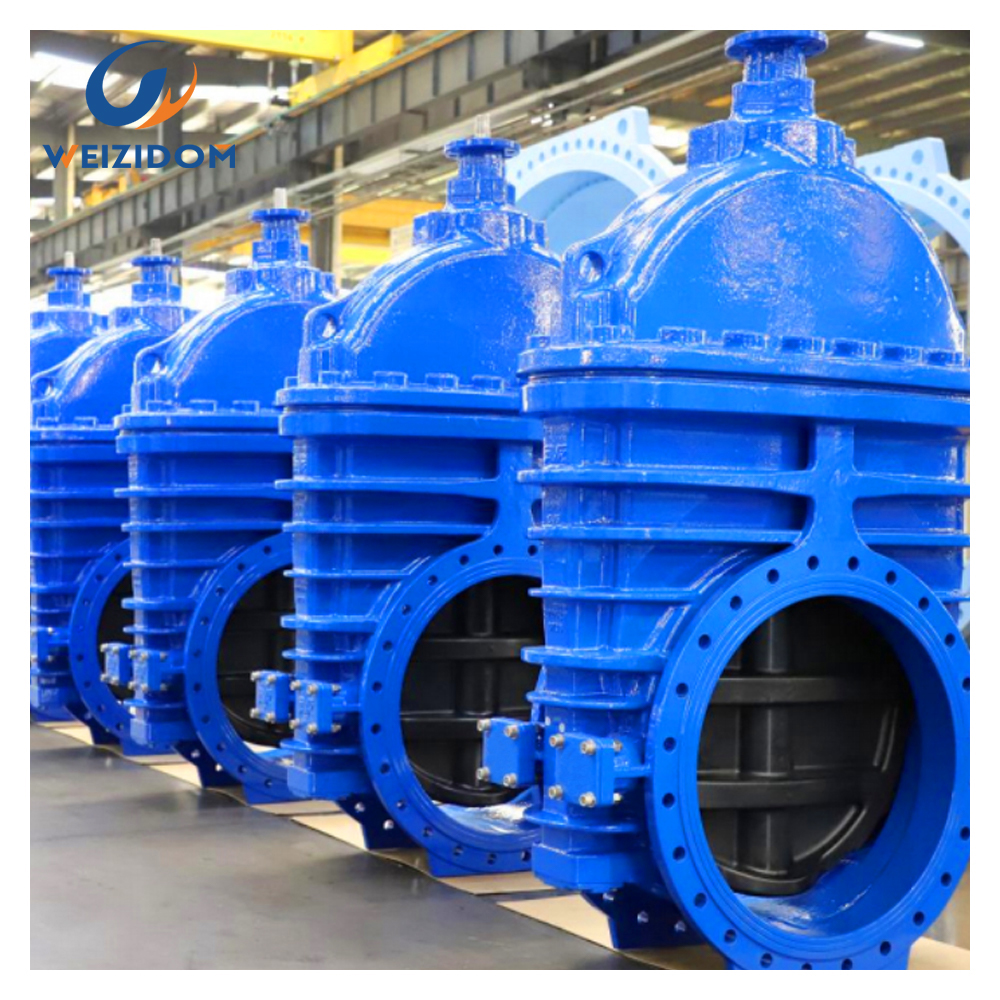

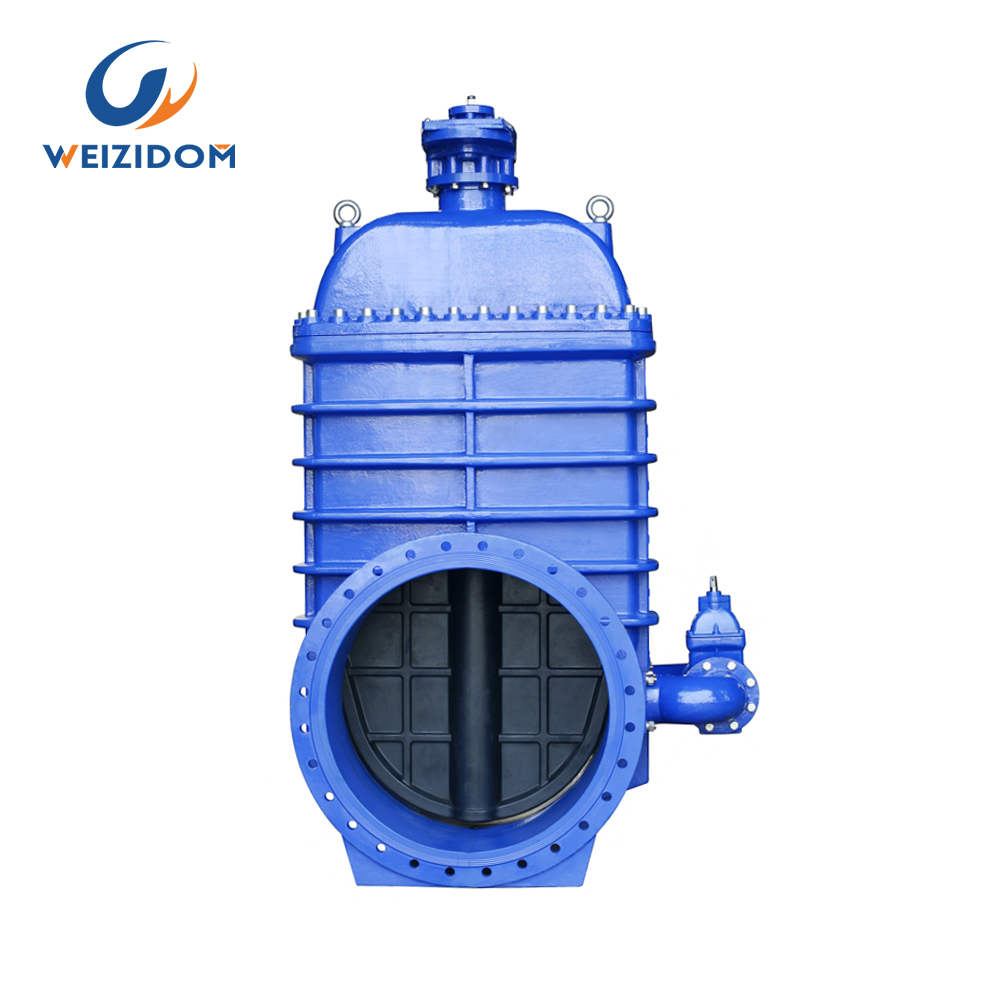

DN450 Resilient Seated Gate Valve

Size Range: DN450 – 1200

Pressure Ratings: PN10 & PN16

Application: Isolate the flow with infrequent operation

Types: Rising/Non-rising stem, Different closing direction

Different flange drillings/Coatings/material

Operation: Stem cap, Handwheel, Gearbox, Electric actuator


Product Introduction

Gate valve is one of the most widely used valves in various fluid transportation projects.In traditional gate valves, there are common phenomena such as fluid leakage and serious internal corrosion. Common soft-seal gate valves and stems on the market The shaft seal is easy to leak, and it is impossible to replace the seal ring under the condition of constant water and any opening. WESDOM elastic seat seal gate valve adopts novel structural design, strict manufacturing technology and high-performance new materials, which overcomes the traditional gate seal failure. The internal parts, especially the gate plate, are easy to be corroded and rubber elastic. Suitable for domestic water system, water supply and drainage system, sewage treatment system, chemical fluid transportation system It can be used as a cut-off device on fluid pipelines in construction, urban environmental protection, petrochemical, pharmaceutical, food, metallurgy, textile, power and other industries (not suitable for throttling).

Why choose us!

  • Our advantage

    We’ve been in the valve industry for more than 25 years. WESDOM GROUP consists of 5 factories and 4 overseas branches. We face the global valve

    service.Its product classification is complete, the commonly used product size is sufficient, and you can buy it with confidence!

    A
  • Our Mission

    To be a high-quality supplier of fluid control systems and plan maker; To contribute our wisdom and strength to the development of the cutting-edge

    technology of fluid control systems.

    M

Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang

and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

Detailed parameters

gate valve wesdom

1

2

3

4

5

6

7

8

Stem

Wiper ring

O-ring

Bearing

Bonnet

Thrust collar

Manchette

Bonnet bolt

Stainless steel 1.4104 (430F)

NBR rubber

NBR rubber

Polyamide

Ductile,iron GJS-500-7 (GGG-50)

Brass,DZR Cw602N

NBR rubber

Stainless steel A2,sealed with hot melt

9

10

11

12

13

14

15

16

Bonnet gasket

Wedge nut

Wedge

Body

Key

Wiper ring

O-ring

Bearing

NBR rubber

Brass,DZR CW626N

Ductile iron,NBR encapsulated

Ductile iron,GJS-500-7(GGG-50)

Stainless steel

NBR rubber

NBR rubber

Polyamide

17

18

19

20

21

22



Thrust washer

Roller bearing

Thrust collar

O-ring

Manchette

Wedge shoe

Stainless steel 1.4104 (430F)

Stainless steel

Stainless steel

1.4104(43OF)

NBR rubber

NBR rubber

Polyamide



wesdom gate valve
