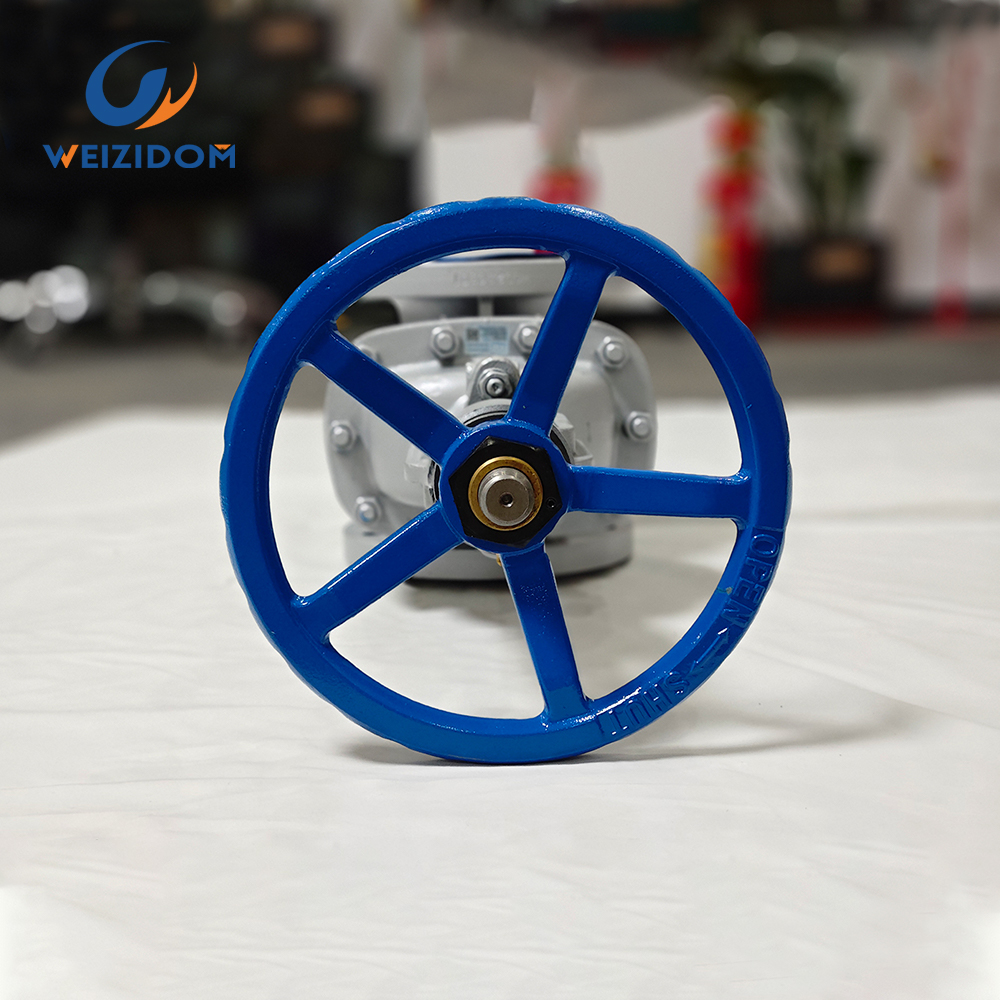

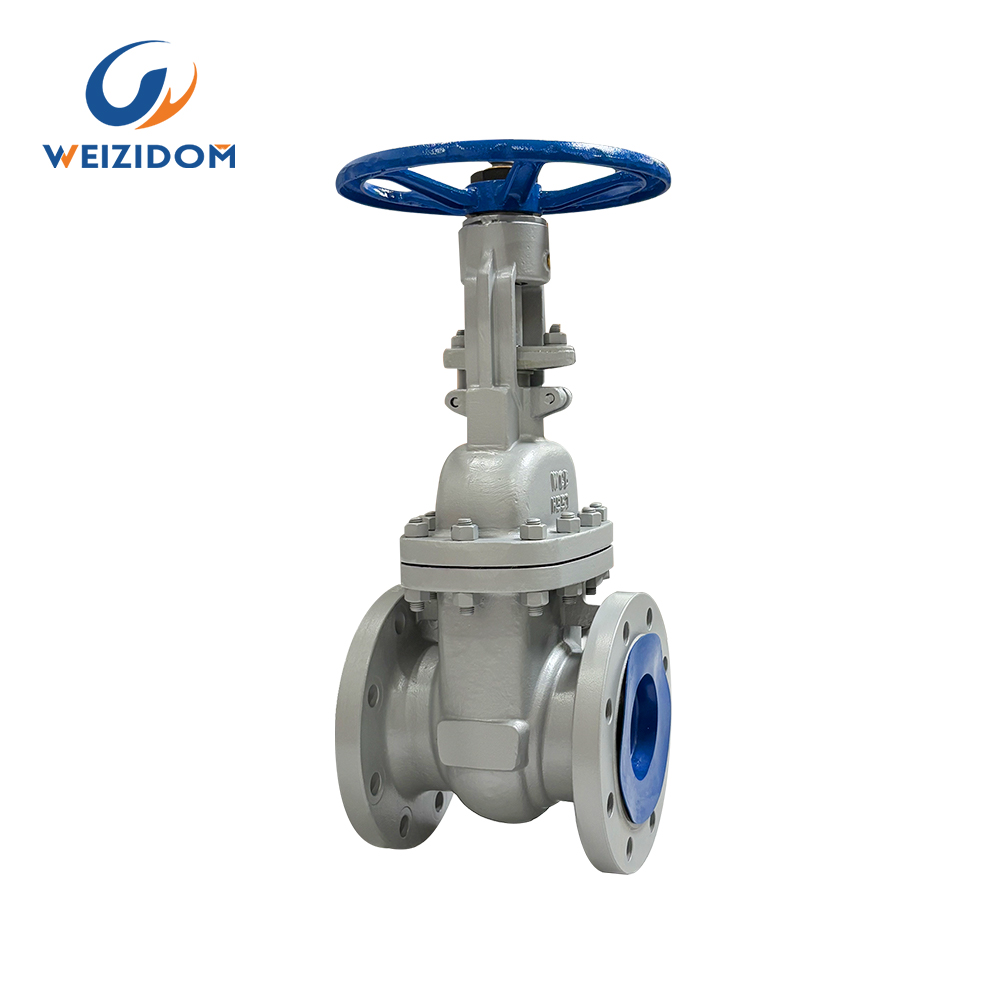

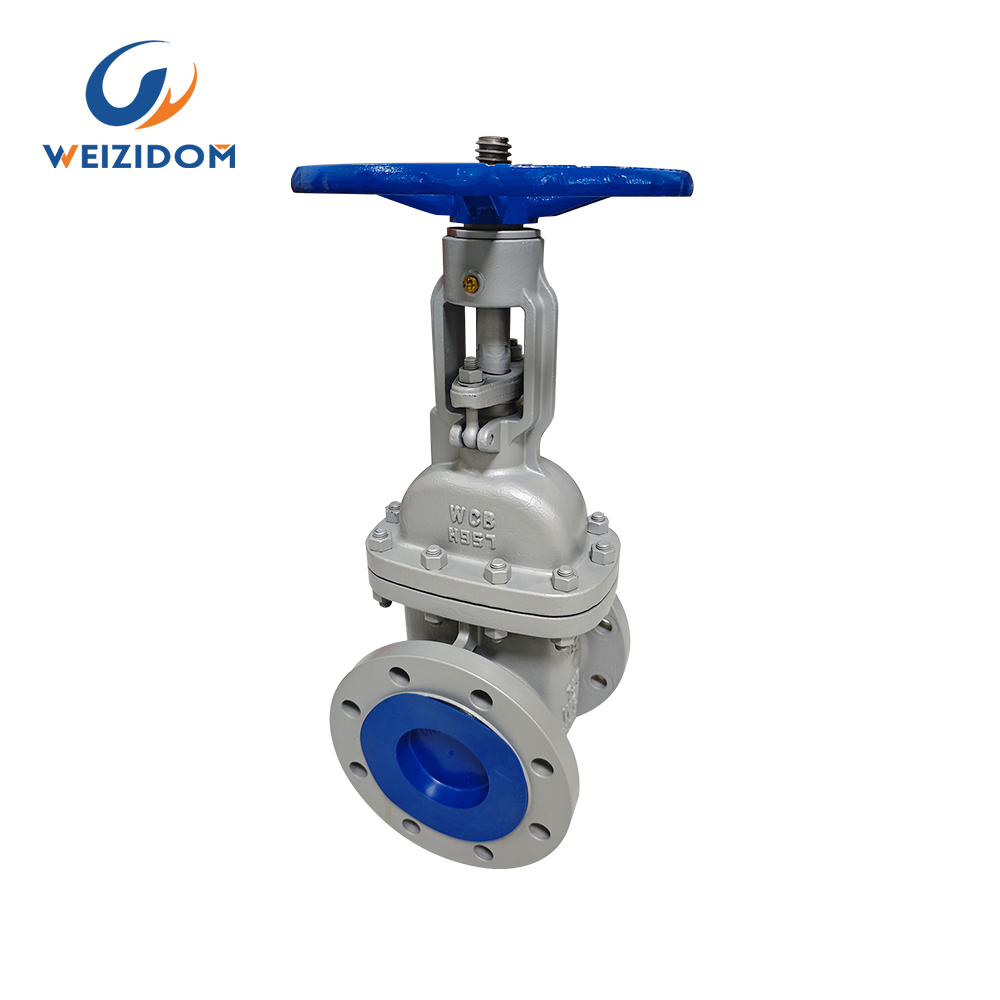

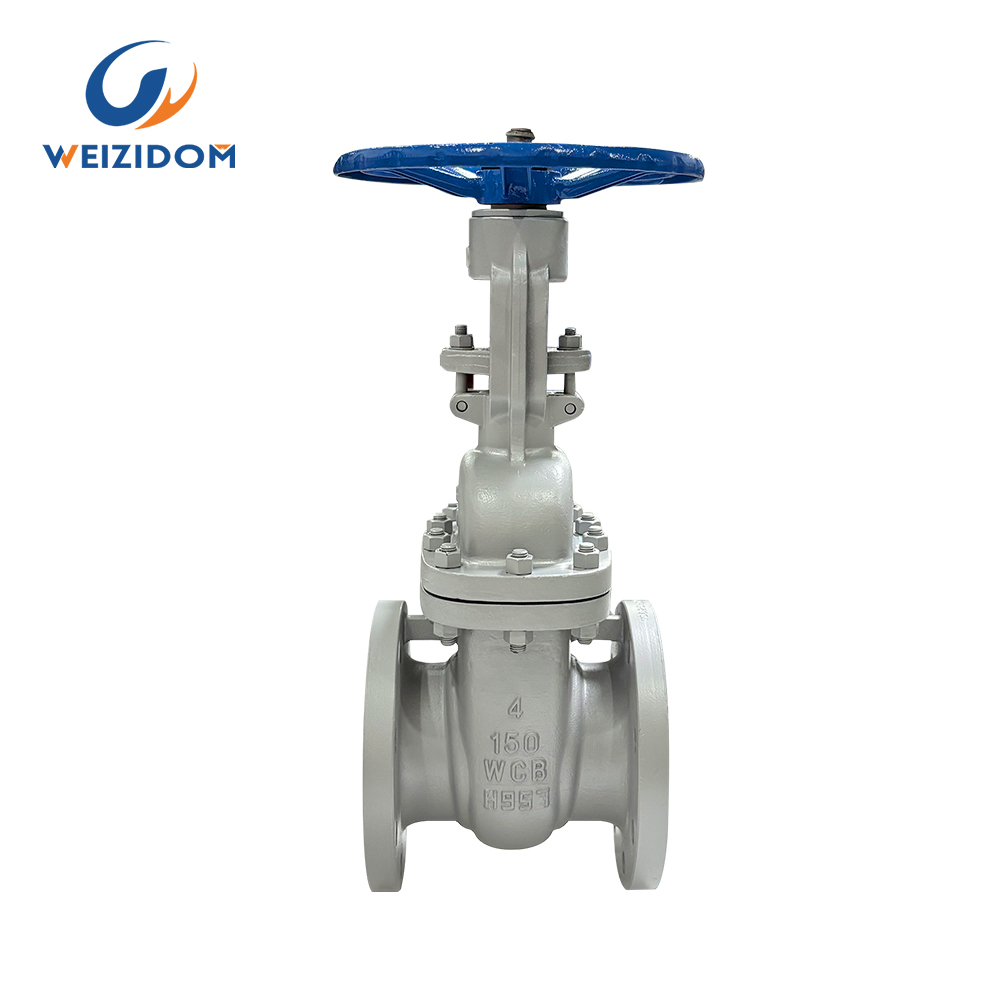

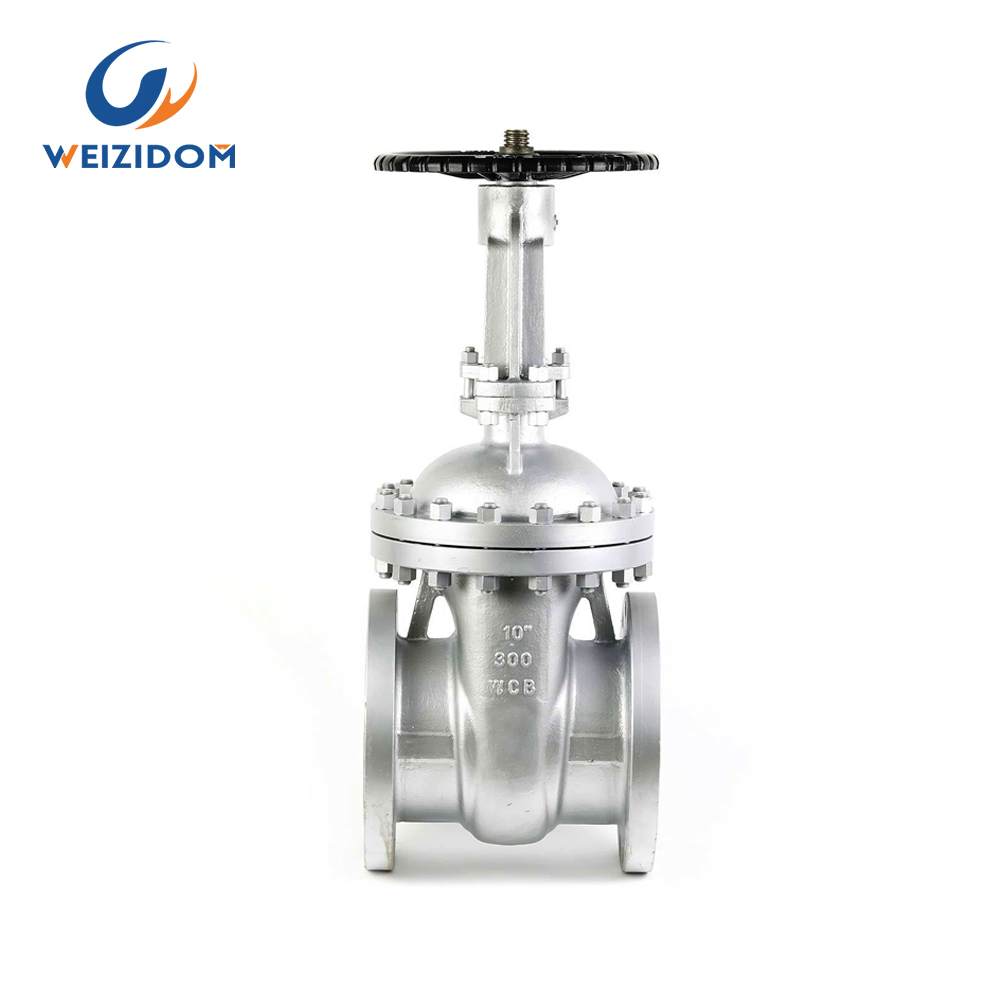

API carbon steel gate valve

Size:1/2”-48”

Pressure Rating:150LB-  600LB

Material:A216 GR.WCB, Alloy steel, SS304, SS316

Design Standard:API 600, API 6D

Inspection Standard:API 598

Application medium:Water, oil, gas

Application Temperature:-29-425℃

Product Introduction

Gate valve is one of the most widely used valves in various fluid transportation projects. In traditional gate valves, there are common phenomena such as fluid leakage and serious internal corrosion. Common soft-seal gate valves and stems on the market The shaft seal is easy to leak, and it is impossible to replace the seal ring under the condition of constant water and any opening. WESDOM elastic seat seal gate valve adopts a novel structural design, strict manufacturing technology, and high-performance new materials, which overcomes the traditional gate seal failure. The internal parts, especially the gate plate, are easy to corrode and rubber elastic. Suitable for domestic water systems, water supply, and drainage systems, sewage treatment systems, and chemical fluid transportation systems It can be used as a cut-off device on fluid pipelines in construction, urban environmental protection, petrochemical, pharmaceutical, food, metallurgy, textile, power and other industries (not suitable for throttling).

Why choose us!

  • Our advantage

    We’ve been in the valve industry for more than 25 years. WESDOM GROUP consists of 5 factories and 4 overseas branches. We face the global valve

    service.Its product classification is complete, the commonly used product size is sufficient, and you can buy it with confidence!

    A
  • Our Mission

    To be a high-quality supplier of fluid control systems and plan maker; To contribute our wisdom and strength to the development of the cutting-edge

    technology of fluid control systems.

    M

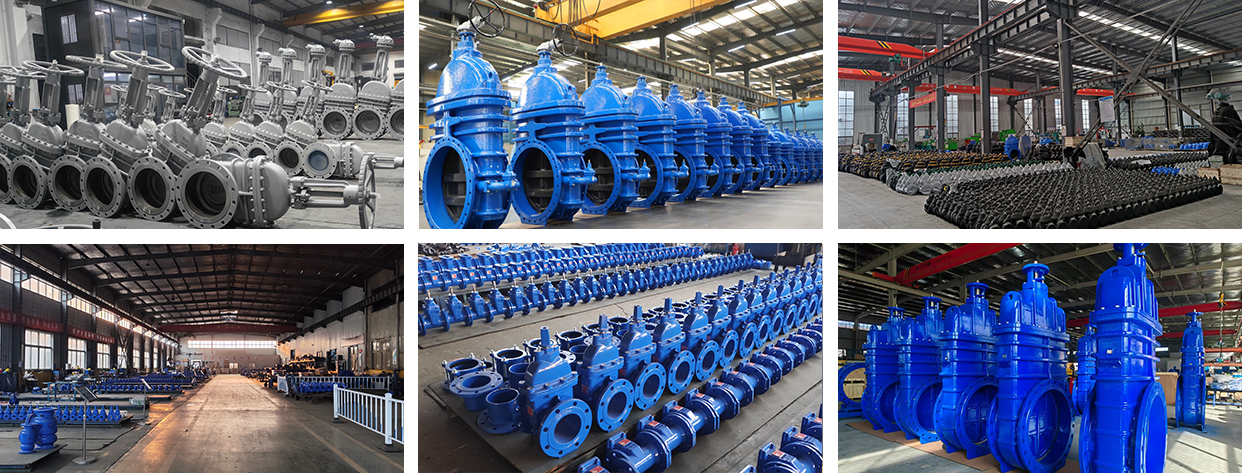

Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang and Wenzhou.

The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

Detailed parameters

API carbon steel gate valve

Pressure

Size

L

d

195

H1

W

W1

Weight(kg)

NPS

DN

RF

RTJ

BW

H.W

G.O

class150

1/2″

15

108

119

108

14

210

120

4

3/4″

20

117

130

117

19

240

120

5

1″

25

127

140

127

25

300

140

7

11/4″

32

140

153

140

32

395

180

10

11/2″

40

185

178

165

38

400

200

14

2″

50

178

191

218

51

435

200

19

21/2″

65

191

203

241

64

515

200

25

3″

80

203

216

283

76

595

250

33.5

4″

100

229

241

305

102

725

280

48.5

5″

125

254

267

381

127

780

300

310

60.5

6″

150

267

279

403

152

975

820

350

310

77

104

8″

200

292

305

418

203

1150

1020

400

310

115

150

10″

250

330

343

457

254

1380

1200

450

310

175

215

12″

300

356

368

502

305

1545

1430

500

310

280

315

wesdom gate valve

1.small flow resistance .the way inside valve is direct through,the media can easily through the inside way, flow resistance are small.



2,operate portable and flexibly,compare with globe valve ,the way of Disc move is Vertical with media whether open or close.



3.it is take a long time to open or close because long stem.



4.Water hammer phenomenon will nor happen because it cost long time to open and close.



5.The medium can flow in any direction on both sides, and is easy to install. Gate valves are symmetrical on both sides of the channel.



WESDOM GATE VALVE

Project Name: Pakistan Petroleum Project

Main Products: API valves and fittings

Client Feedback:

WESDOM is a very trustworthy team, not only professional, but also caring and enthusiastic in service. If there is a demand in the future, we will choose WESDOM without hesitation.

Project Pictures:







wesdom gate valve

WESDOM GATE VALVE
