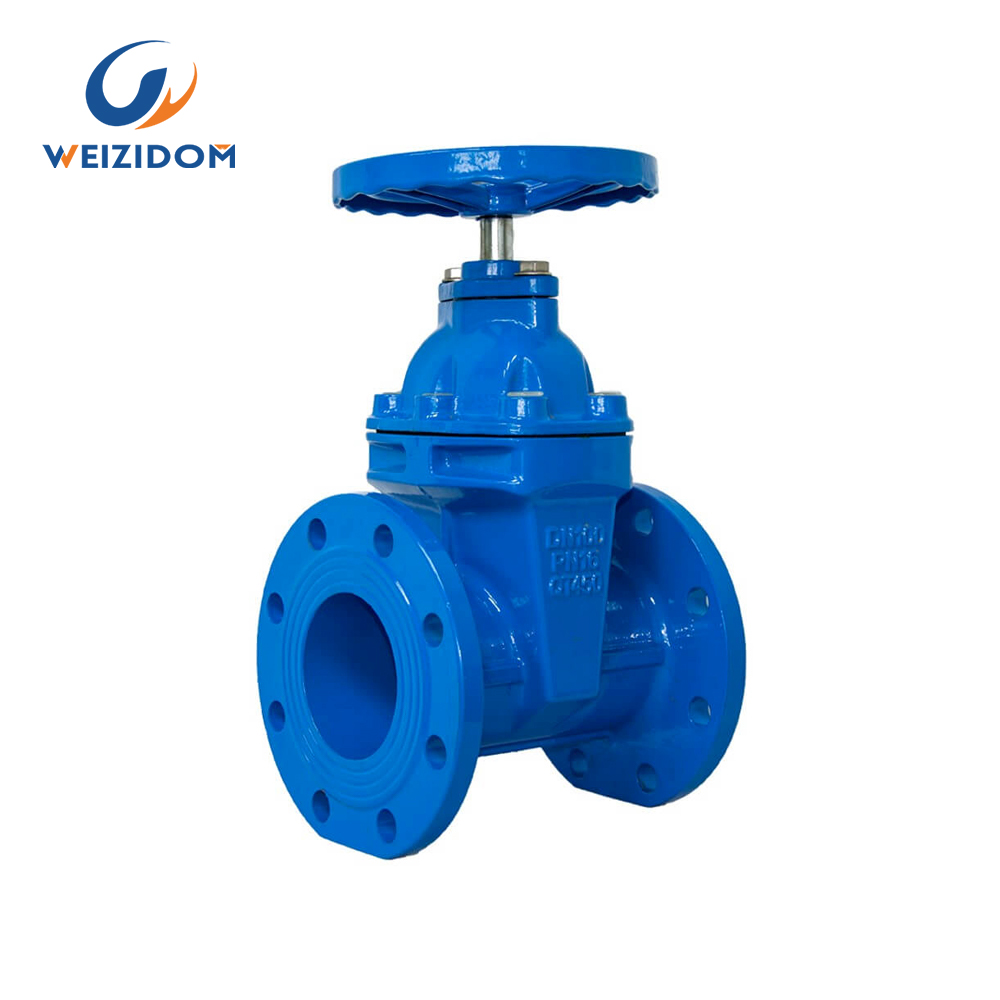

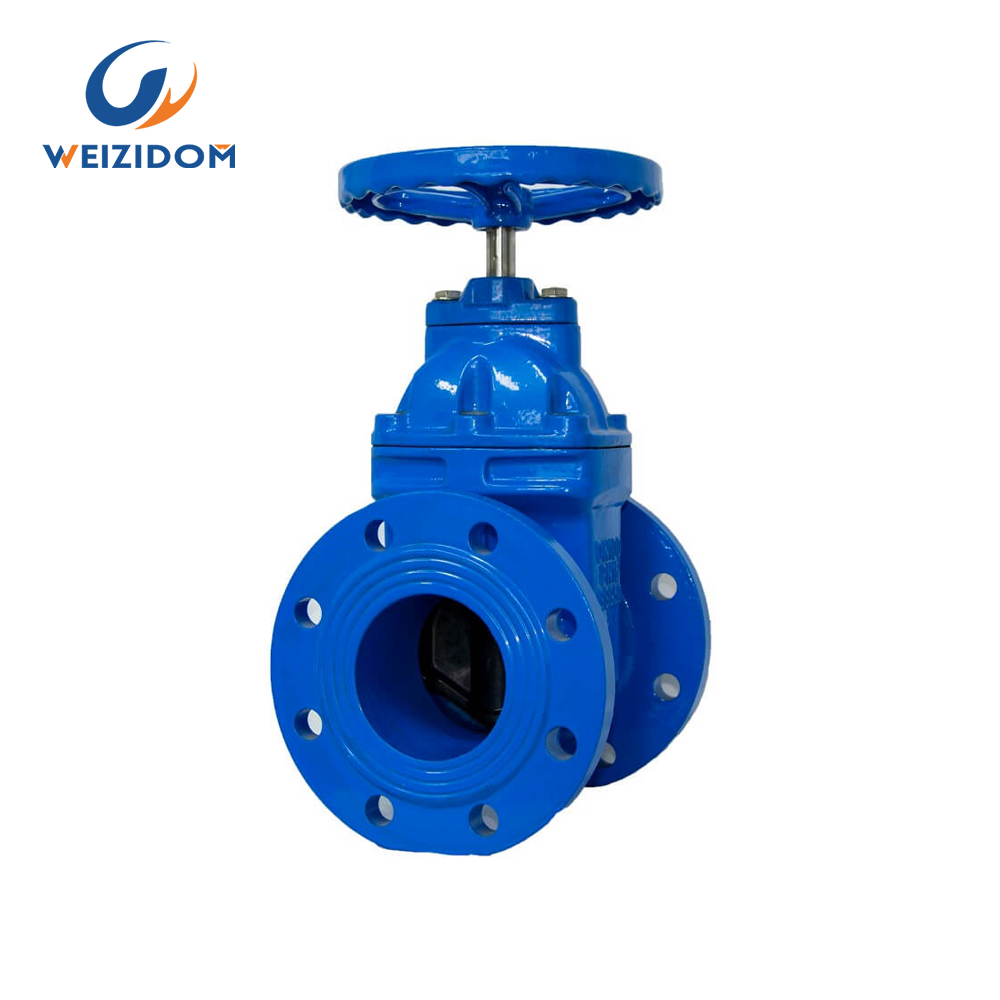

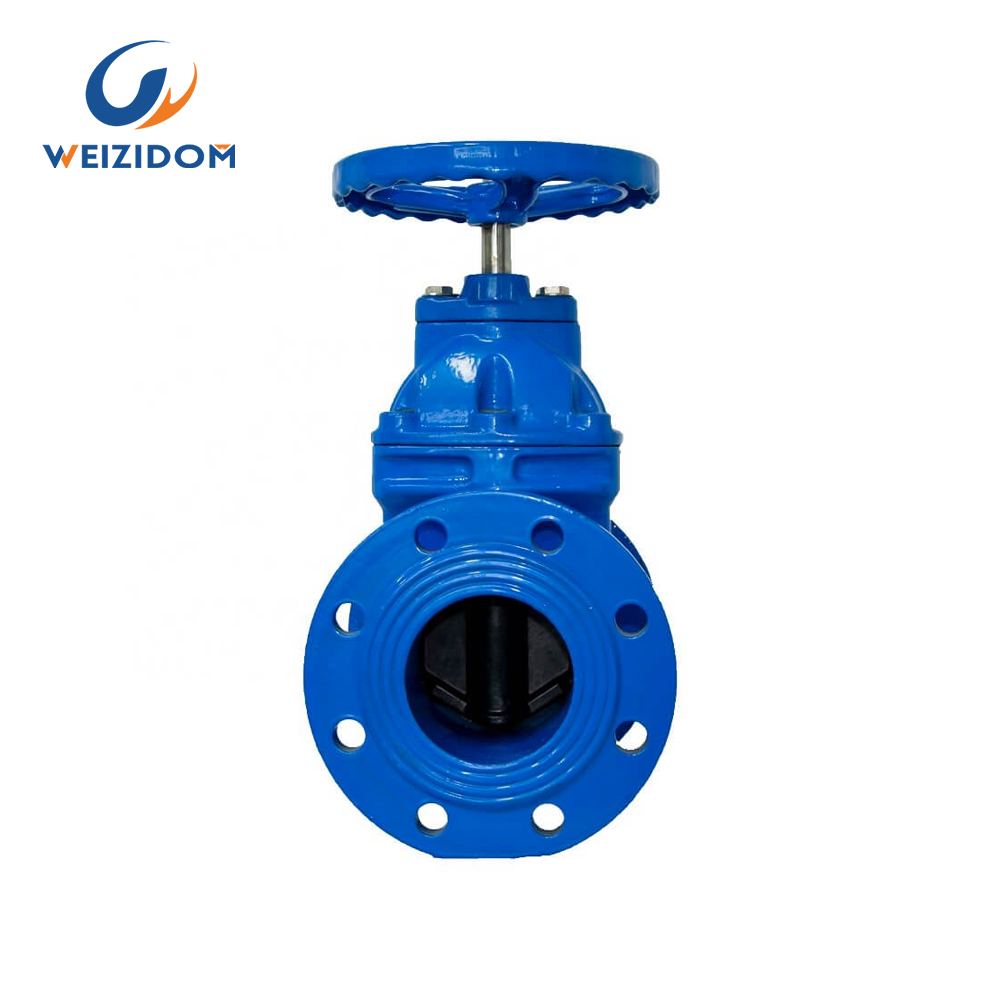

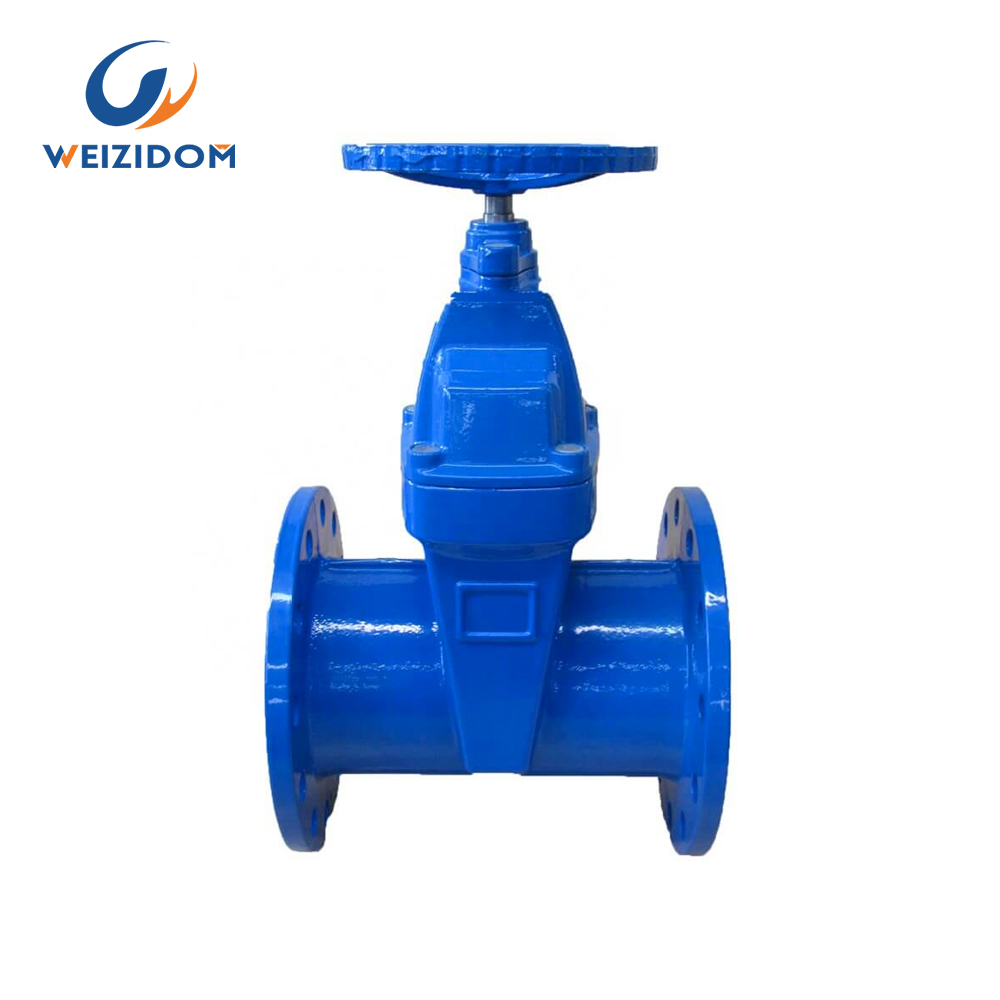

BS5163 Ductile iron gate valve for water treatment system

Product Category: Gate Valve

Diameter: DN40-DN1000

Pressure: PN16/PN25

Gland:DI

Valve design:BS 5163

Face to Face:EN558

Send E-mail:info@wsdvalve.com Mobile: +86-173197327665

Product Introduction

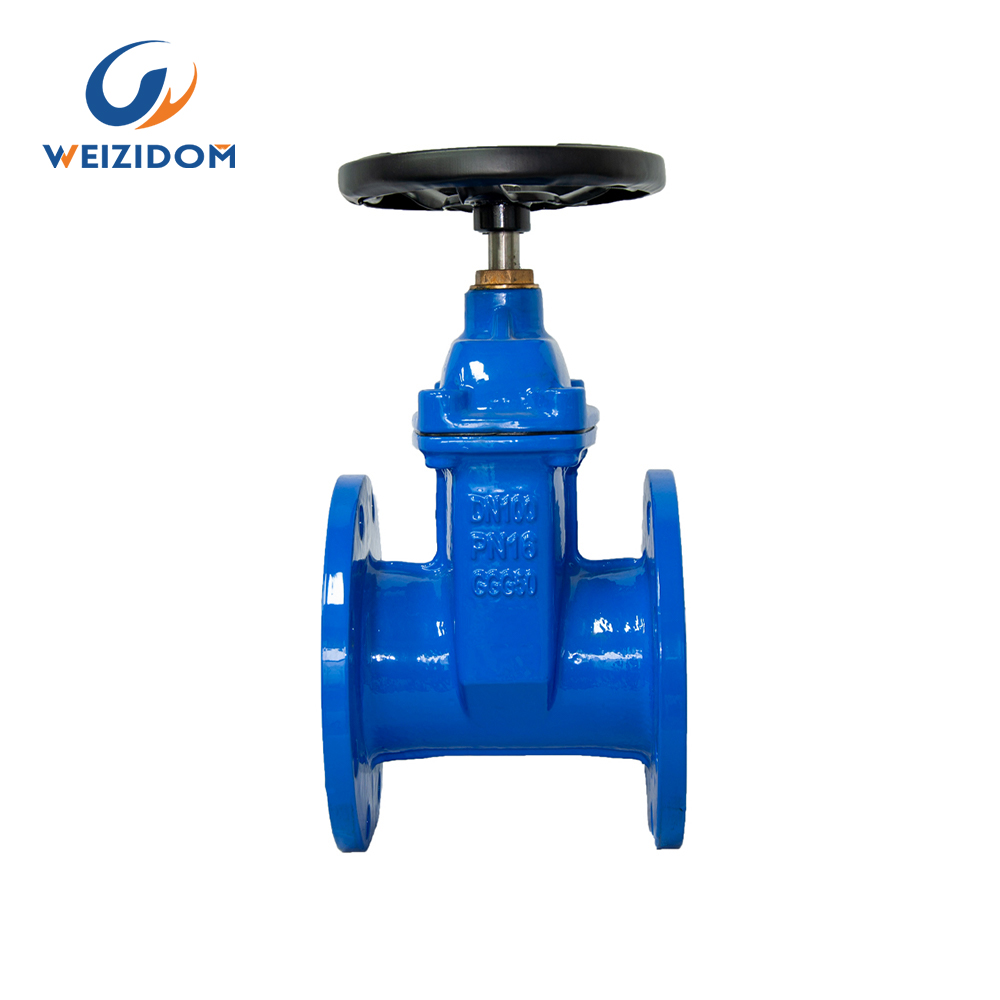

BS resilient seated gate valve is a new type of valve equipment. It is characterized by the use of soft materials such as rubber rings between wedge discs and seats to achieve sealing. Compared with the traditional hard and dense sealing valve, the sealing and performance have obtained a lot promote. The soft sealing gate valve provides a tightening force through high quality spring and pressure plates so as to achieve a better sealing effect. It can adapt to different working environments and needs. The soft sealing gate valve has the advantages of sealing reliability, long service life, and energy saving and consumption reduction. It is widely used in the fields of power stations, pharmaceuticals, chemicals, and sewage treatment. Due to the sealing ring of the soft sealing gate valve being made of highly elastic materials, it has a long service life, and it is also helpful to reduce maintenance costs.

Why choose us!

  • WESDOM patent products, patent certification

    The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards

    for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

    W
  • The product has an independent identity to ensure traceability

    Each wesdom product has its own unique identification number, to ensure product traceability.

    E
  • Provide material inspection report

    All wesdom products can provide the material inspection report of the main parts.

    S
  • One-stop service

    One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

    D
  • WESDOM has a lot of project experience

    We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

    O
  • WESDOM has a strict quality control system

    WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

    M

Quality Control Process

quality control process

Standard Test

test



Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

Detailed parameters

BS5163 Ductile iron gate valve

DN L D K G A B C N-ød H
PN10 PN16 PN10 PN16  PN10 PN16 PN10  PN16
40 140 150 150 110 110 88 88 3 19 180 4-ø19 4-ø19 240
50 150 165 165 125 125 102 102 3 19 180 4-ø19 4-ø19 250
65 170 185 185 145 145 122 122 ! 3 19 180 4-ø19 4-$19 280
80 180 200 200 160 160 138 138 3 19 200 8-ø19 8-ø19 330
100 190 220 220 180 180 158 158 3 19 200 8-ø19 8- ø19 361
125 200 250 250 210 210 188 188 3 19 250 8-ø19 8-ø19 415
150 210 285 285 240 240 212 212 3 19 250 8-ø23 8-ø23 460
200 230 340 340 295 295 268 268 3 20 280 8-ø23 12-ø23 572
250 250 395 405 355 355 320 320 3 22 320 12-ø23 12-ø28 658
300 270 445 460 410 410 378 378 4 25 350 12-ø23 12-ø28 758
350 290 505 520 470 470 438 438 4 27 450 16-923 16-ø28 800
400 310 565 580 515 525 490 490 4 28 550 16-ø27 16-ø31 900
500 350 670 715 620 650 595 610 4 32 650 20-ø27 20-ø34 1100
600 390 780 840 725 770 690 727 4 36 660 20-ø31 20-ø37 1240

wesdom gate valve

Advantages of BS resilient seated gate valve!

  • Overall rubber coating

    The overall coating of the inside and outside of the disc is used with high-quality rubber, and the domestic leading rubber vulcanization technology is

    used to keep the valve that maintains accurate geometric size. More importantly, the high stickiness between rubber and disc sticks the rubber stably

    together and has good elastic memory.

    W
  • Strong corrosion resistance

    The valve body is coated with epoxy resin powder to prevent the valve from corrosion and rust, and the valve can be used for the wastewater system.

    It is difficult to break, and the traditional gate valve has broken due to impact or collision with other objects. The new valve body material is ductile

    iron, which significantly reduces the broken condition of this material.

    E
  • Non -toxic epoxy resin coating

    Due to the internal and non-toxic epoxy resin coating inside the valve body, the surface of the inside and outside of the valve is completely covered

    with rubber. Rust or corrosion will not occur, which ensures that the water can drink.

    S
  • The valve body uses precision casting

    The valve body is made of precision, and the precise geometric shape makes it possible to ensure the sealing of the valve without any other

    processing inside the valve.

    D
  • Better sealing performance

    The soft sealing gate valve uses soft materials such as rubber to achieve sealing between the wedge disc and the seat. The sealing effect is

    better; it can adapt to a complex environment and has higher sealing reliability and service life.

    O
  • Lower maintenance costs

    The sealing ring of the soft sealing gate valve is made of highly elastic materials. It has a long service life and can save more maintenance

    costs. At the same time, the valve body is made of ductile iron. The weight is about 20% to 30% lighter than the traditional valve. It is

    easy to install and maintain and can reduce maintenance costs and time.

    M
  • Smaller traffic noise

    The material of the soft sealing gate valve can effectively reduce the flow noise of the fluid through the valve, make it work more stable,

    and be suitable for occasions with higher requirements for flow noise.

    S



Project Name: Laos Water Project Treatment

Main Products: Soft seal gate valve, ductile iron fittings

Client Feedback:

Very satisfied with the products received, and have been applied to the project, and will order more products from WESDOM;

Project Pictures:
