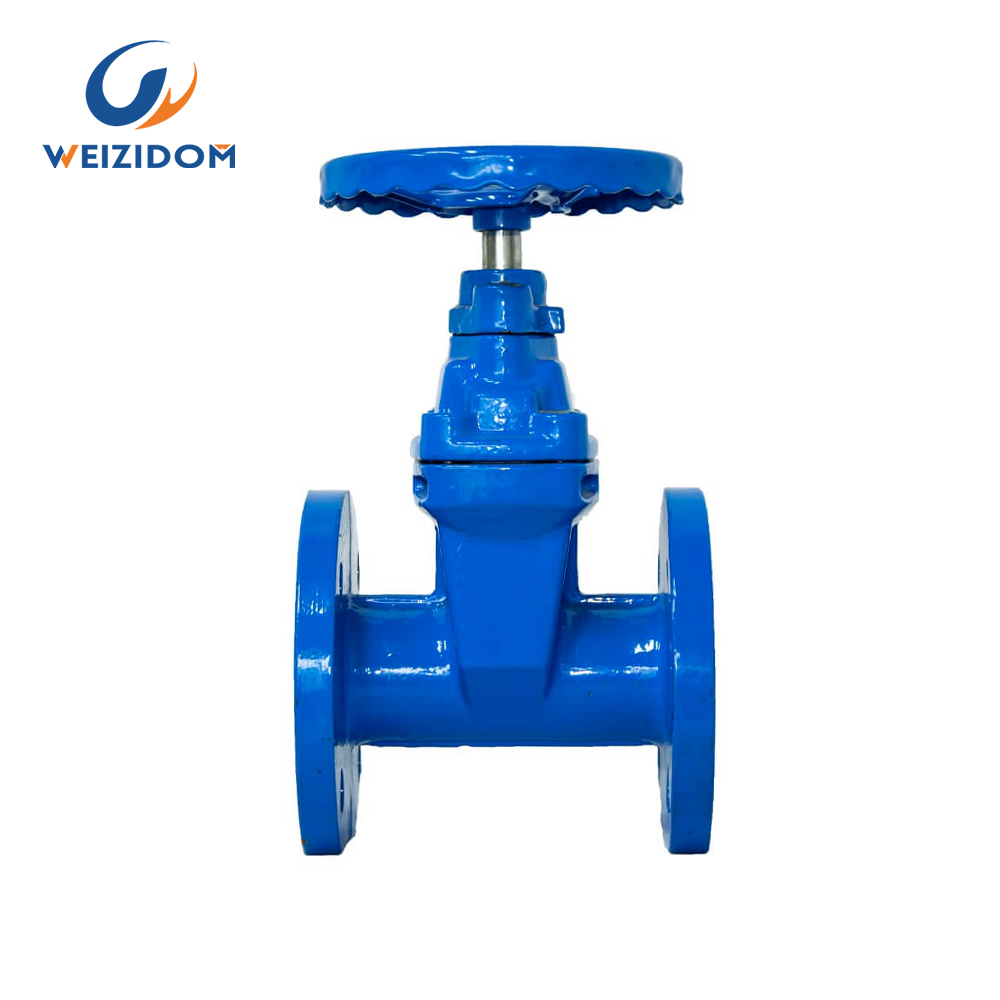

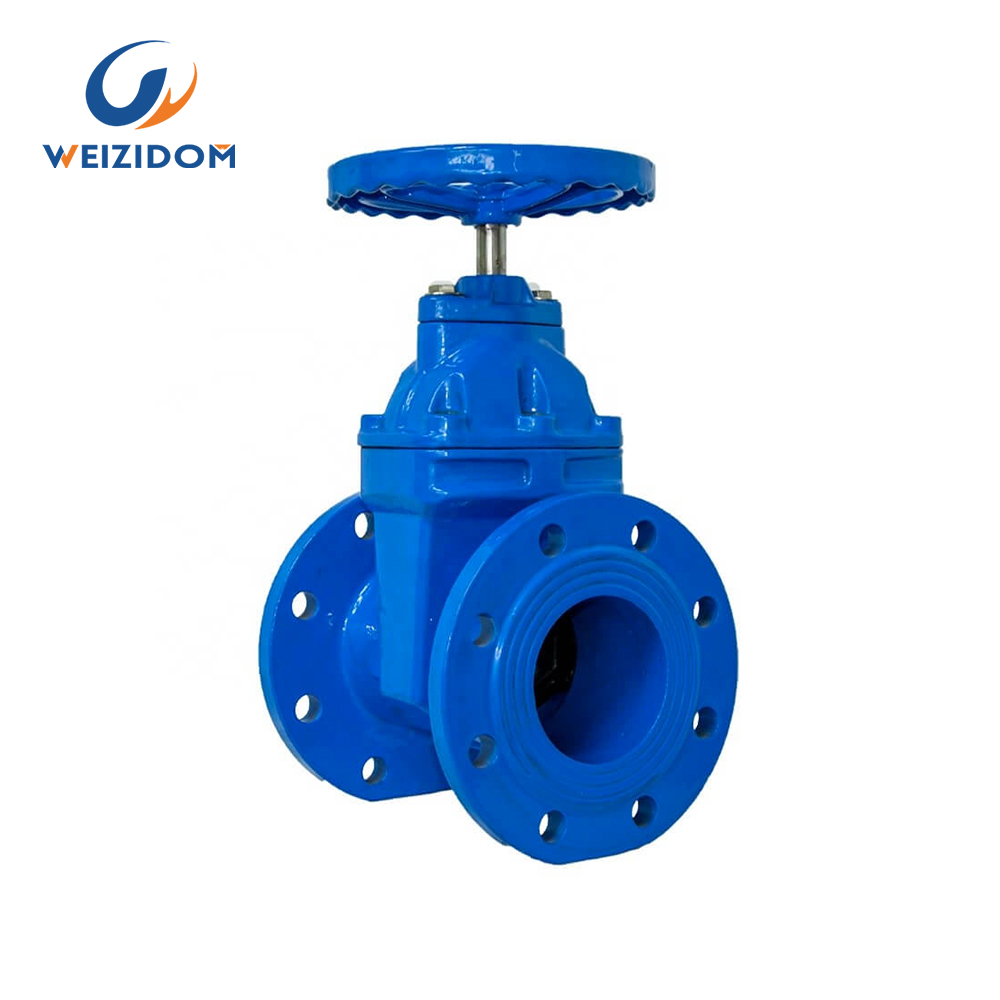

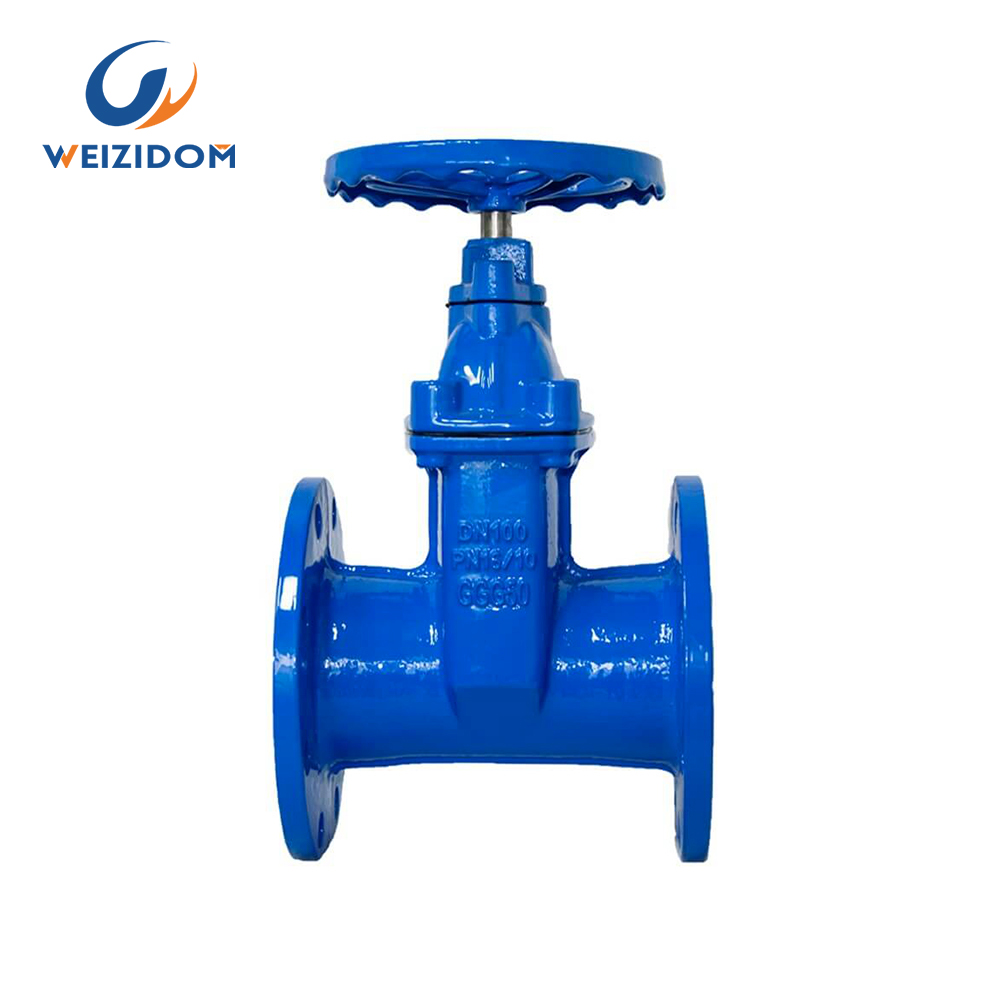

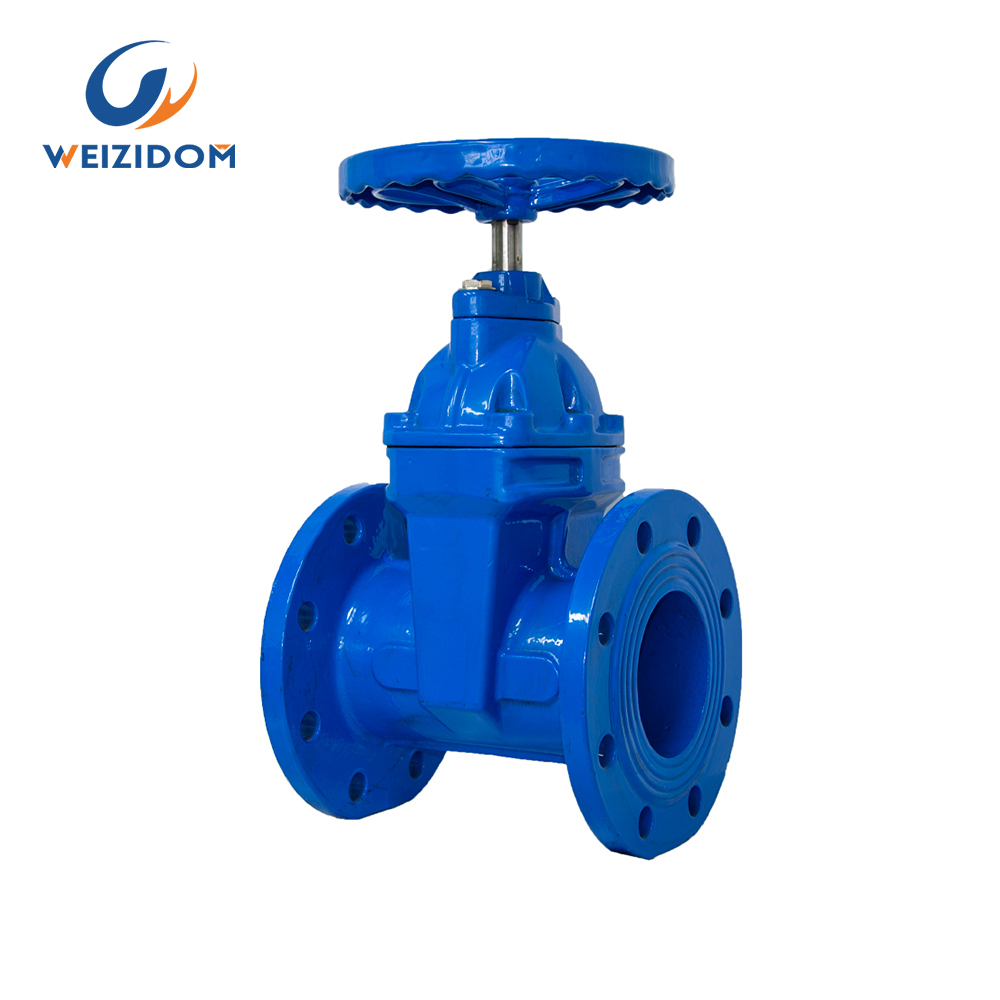

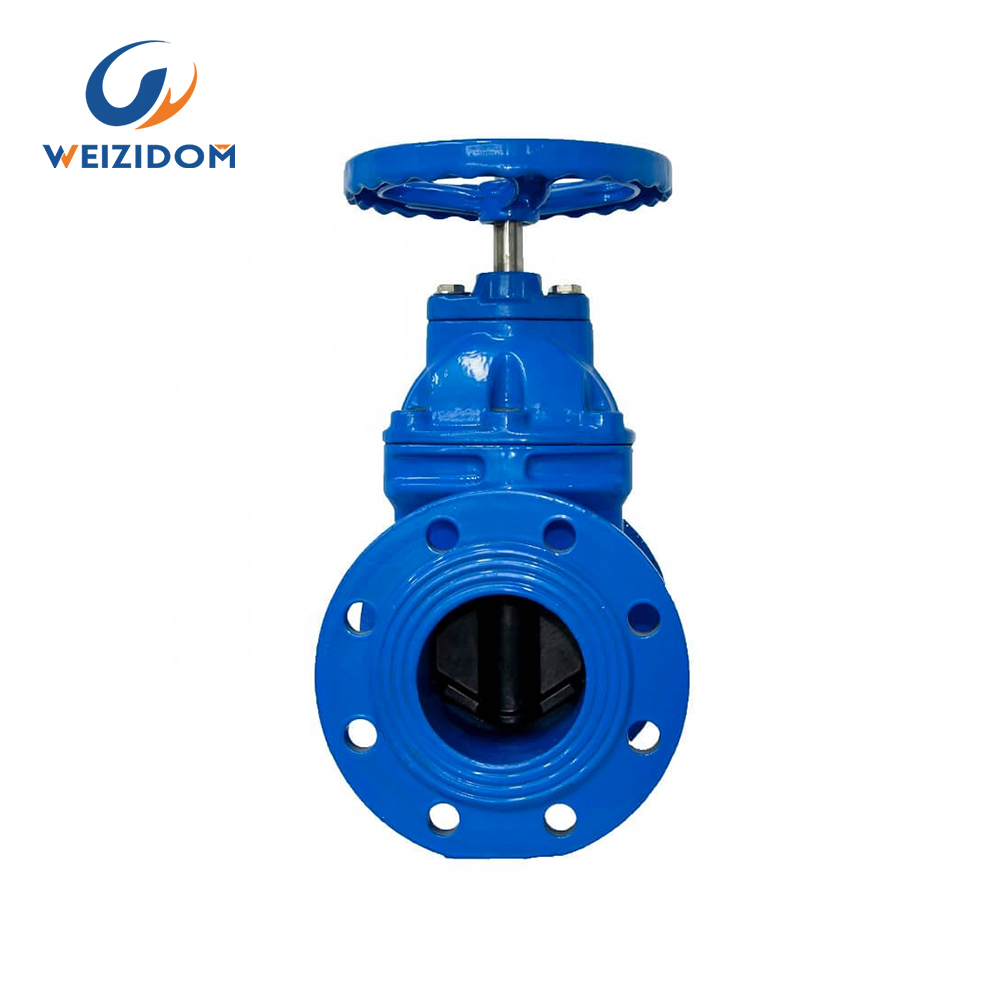

DIN F4 soft seal gate valve

Diameter: DN40-600

Pressure: PN1.0 / 1.6mpa

Temperature: 0-80 ℃

Valve design: DIN3352-F4

Pressure test: DIN3230

Medium: Water, gas etc.

Send E-mail:info@wsdvalve.com Mobile: +86-173197327665


Product Introduction

Soft sealing gate valve is a new type of valve equipment. It is characterized by the use of soft materials such as rubber rings between wedge discs and seats to achieve sealing. Compared with the traditional hard and dense sealing valve, the sealing and performance have obtained a lot promote. The soft sealing gate valve provides a tightening force through high-quality spring and pressure plates so as to achieve a better sealing effect. It can adapt to different working environments and needs. The soft sealing gate valve has the advantages of sealing reliability, long service life, and energy saving and consumption reduction. It is widely used in the fields of power stations, pharmaceuticals, chemicals, and sewage treatment. Due to the sealing ring of the soft sealing gate valve is made of highly elastic materials, it has a long service life, and it is also helpful to reduce maintenance costs.

Why choose us!

  • WESDOM patent products, patent certification

    The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards

    for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

    W
  • The product has an independent identity to ensure traceability

    Each wesdom product has its own unique identification number, to ensure product traceability.

    E
  • Provide material inspection report

    All wesdom products can provide the material inspection report of the main parts.

    S
  • One-stop service

    One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

    D
  • WESDOM has a lot of project experience

    We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

    O
  • WESDOM has a strict quality control system

    WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

    M

Quality Control Process

quality control process

Standard Test

test



Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang

and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

Detailed parameters

DIN F4 soft seal gate valve

DN L(F4) L(BS) D1 D2 D3 H N-øD PN10 N-øD PN16
50 150 178 99 125 165 220 4-ø19 4-ø19
65 170 190 118 145 185 240 4-ø19 4-ø19
80 180 203 132 160 200 290 8-ø19 8-ø19
100 190 229 156 180 220 330 8-ø19 8-ø19
125 200 254 184 210 250 375 8-ø19 8-ø19
150 210 267 211 240 285 420 8-ø23 8-ø23
200 230 292 266 295 340 500 8-ø23 12-ø23
250 250 330 319 355 405 610 12-ø23 12-ø28
300 270 356 370 410 460 720 12-ø23 12-ø28
350 290 381 429 470 520 920 16-ø23 16-ø28

wesdom gate valve

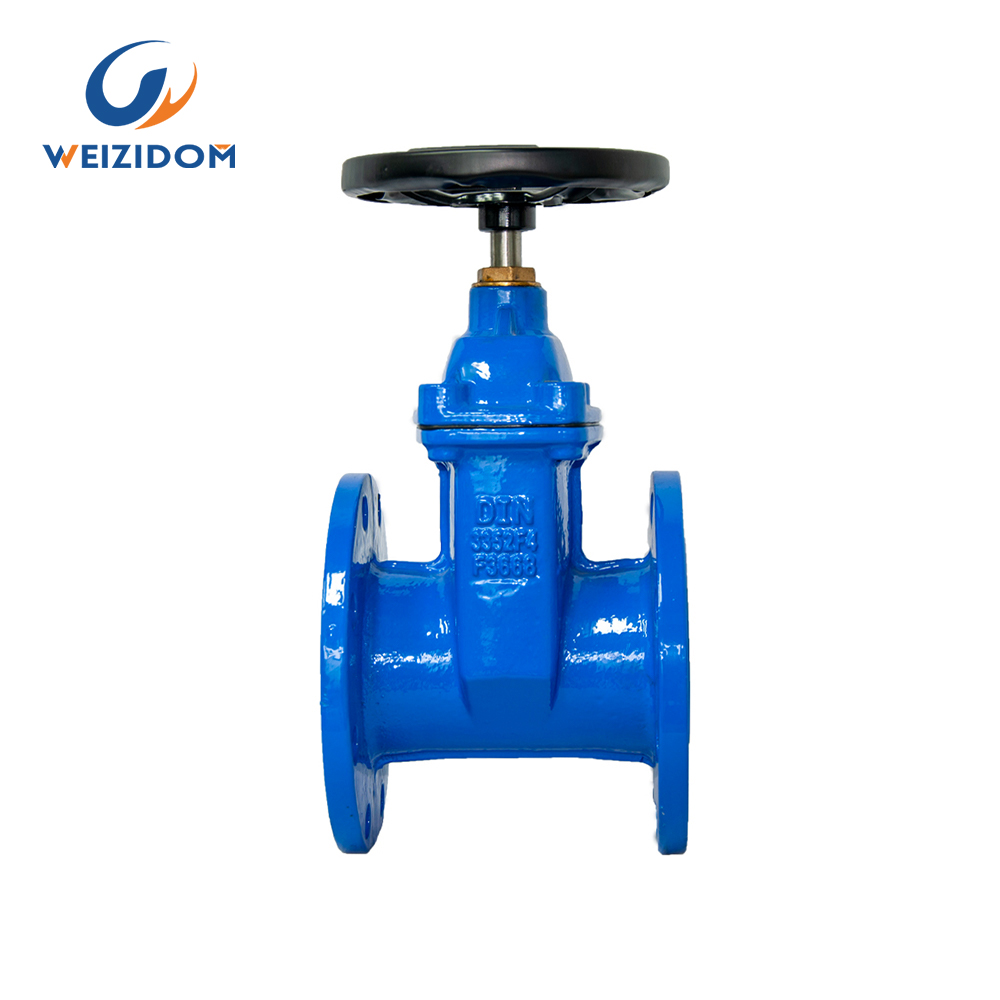

Advantages of resilient seated gate valve!

  • Overall rubber coating

    The overall coating of the inside and outside of the disc is used with high quality rubber, and the domestic leading rubber vulcanization technology

    is used to keep the valve that maintains accurate geometric size. More importantly, the high stickiness between rubber and disc sticks the rubber

    stably together and has good elastic memory.

    W
  • Strong corrosion resistance

    The valve body is coated with epoxy resin powder to prevent the valve from corrosion and rust, and the valve can be used for the wastewater system.

    It is difficult to break, and the traditional gate valve has broken due to the impact or collision of other objects. The new valve body material is ductile

    iron, which significantly reduces the broken condition of this material.

    E
  • Non -toxic epoxy resin coating

    Due to the internal and non -toxic epoxy resin coating inside the valve body, the surface of the inside and outside of the valve is completely covered

    withrubber, rust or corrosion will not occur, which ensures that the water can drink.

    S
  • The valve body uses precision casting

    The valve body is made of precision, and the precise geometric shape makes it possible to ensure the sealing of the valve without any other

    processing inside the valve.

    D
  • Better sealing performance

    The soft sealing gate valve uses soft materials such as rubber to achieve sealing between the wedge disc and the seat. The sealing effect is better, it

    can adapt to a complex environment, and has higher sealing reliability and service life.

    O
  • Lower maintenance costs

    The sealing ring of the soft sealing gate valve is made of high elastic materials. It has a long service life and can save more maintenance costs. At

    the same time, the valve body is made of ductile iron. The weight is about 20%to 30% lighter than the traditional valve. It is easy to install and

    maintain, and can reduce maintenance costs and time.

    M

wesdom butterfly valve

Project Name: A valve dealer in Pakistan imports valves as inventory for sale.

Main Products: American standard gate valves, stainless steel check valves, ductile iron soft-sealed gate valves, wafer butterfly valves, exhaust valves and other valves.

This valve distributor from Pakistan described some informations about their company to our sales manager of the international department.They have been engaged in the valve industry for 11 years and are very professional, with a fixed customer base and sales methods. As a middleman, they need to purchase a large number of valves that are sold every day. And China is a big valve producing country, so they intend to cooperate with Chinese valve manufacturers as their own exporter. After some comparisons, the enthusiasm form WESDOM left a deep impression on them. From the initial samples, trial orders to subsequent FCL orders, the cooperation is very smooth and pleasant. This Pakistan distributor said that the cooperation with WESDOM is very pleasant, and the products and services of WESDOM are also very considerate, and will have more cooperation with WESDOM valve in the future.

Project Pictures:







wesdom gate valve

WESDOM GATE VALVE
