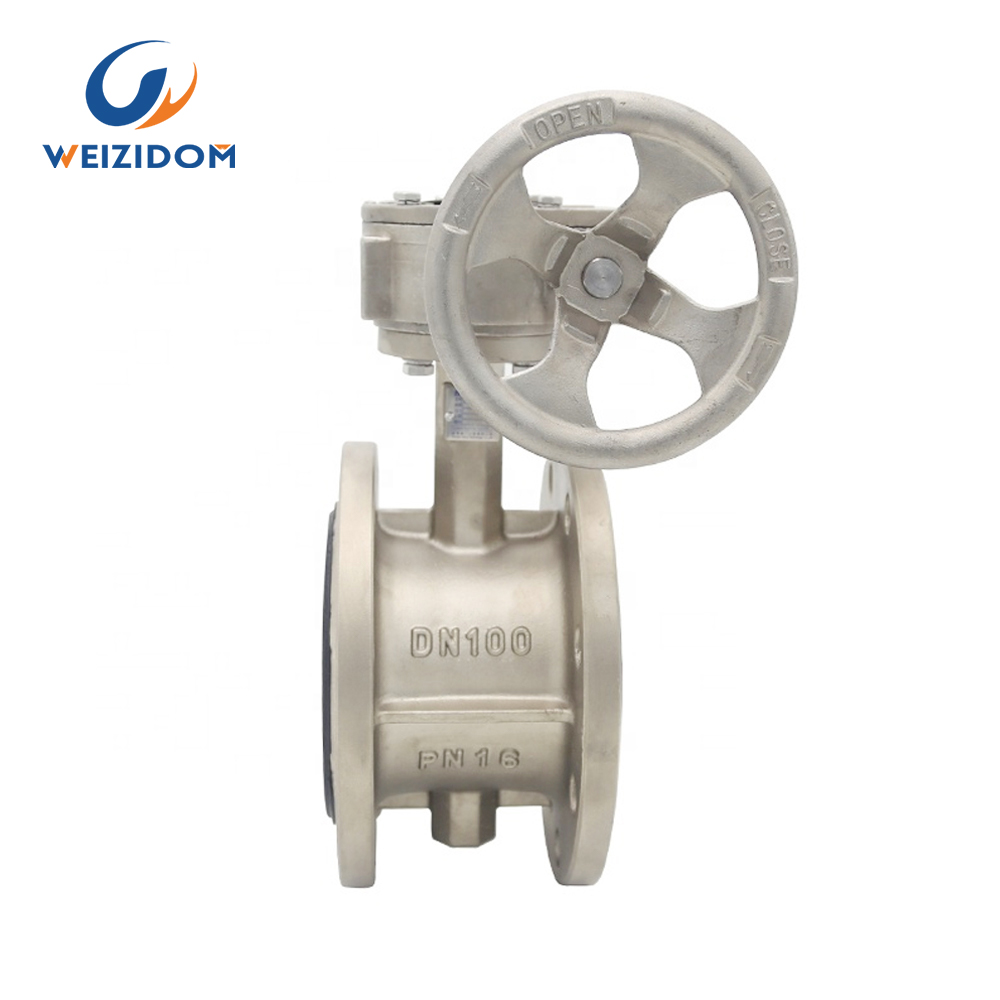

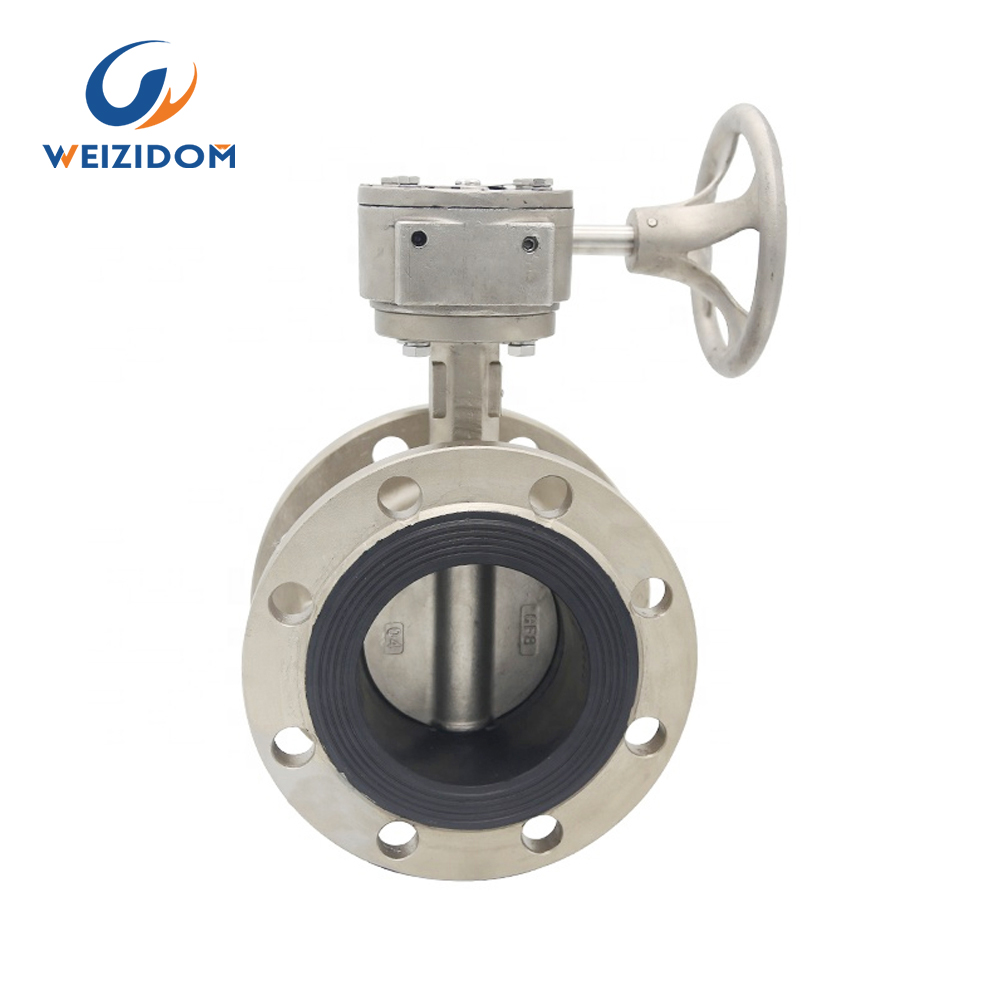

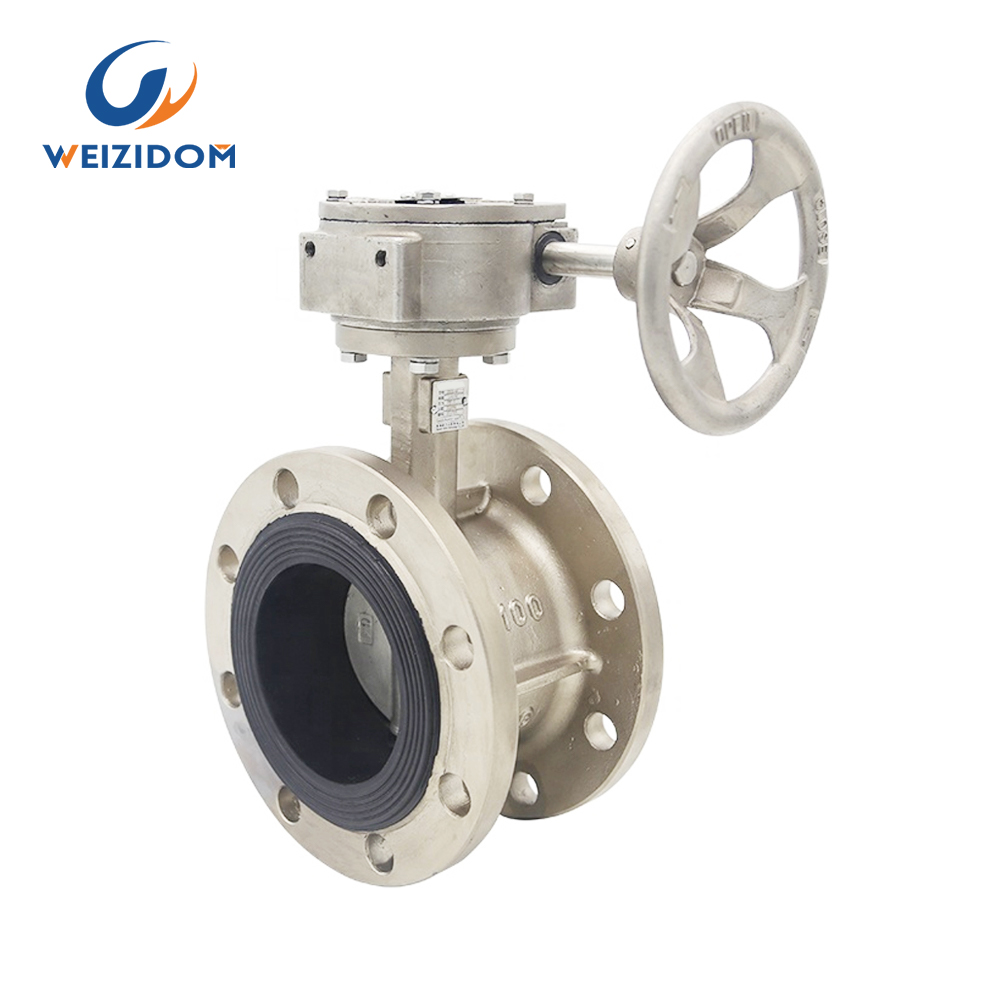

Stainless steel flanged butterfly valve

Size:DN50-3000

Pressure Rating:PN10, PN16, CL150, JIS 5K/10K

Material: SS304, SS316

Design Standard:EN 593, MSS SP67, API 609, BS5155

Inspection Standard:API 598, ISO 5208, EN 12266

Application medium:water, oil and gas

Send E-mail:info@wsdvalve.com Mobile: +86-173197327665

Product Introduction

A stainless steel butterfly valve is a type of valve that is made of stainless steel and consists of a circular disc or vane that is mounted on a shaft. The disc can be rotated to control the flow of fluid or gas through the valve. The valve is called a butterfly valve because the shape of the disc resembles the wings of a butterfly.

Stainless steel butterfly valves are commonly used in industries such as food and beverage, pharmaceutical, and chemical processing, where high levels of hygiene and corrosion resistance are required. Stainless steel is an ideal material for these applications because it is resistant to corrosion and can withstand high temperatures and pressures.

Stainless steel butterfly valves can be operated manually, electrically, or pneumatically, depending on the application. They are known for their quick response times, low pressure drop, and ease of installation and maintenance, which makes them a popular choice for many industries.

Why choose us!

  • WESDOM patent products, patent certification

    The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards

    for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

    W
  • The product has an independent identity to ensure traceability

    Each wesdom product has its own unique identification number, to ensure product traceability.

    E
  • Provide material inspection report

    All wesdom products can provide the material inspection report of the main parts.

    S
  • One-stop service

    One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

    D
  • WESDOM has a lot of project experience

    We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

    O
  • WESDOM has a strict quality control system

    WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

    M

Quality Control Process

quality control process

Standard Test

test



Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

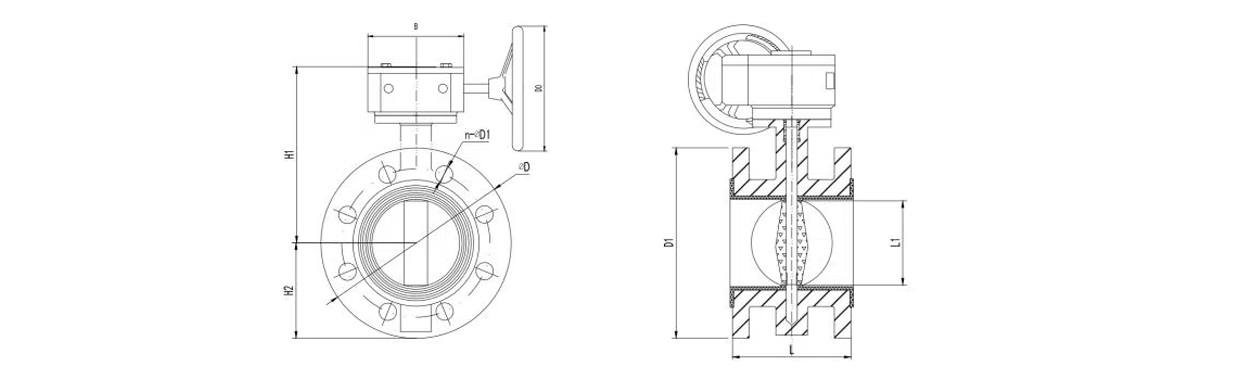

Detailed parameters

stainless steel butterfly valve

SIZE

A

B

C

L

ANSI 150B

DIN PN 10

DIN PN 16

JIS 10K

ISO 5211

Top Flange

mm

in

øK

N-ød

øK

N-ød

øK

N-ød

øK

N-ød

øD

øD1

N-øG

40

1.5″

67

141

32

33

98.5

4-ø16

110

4-ø18

110

4-ø18

105

4-ø19

65

50

4-ø8

F05

50

2″

67

141

32

43

120.6

4-ø19

125

4-ø18

125

4-ø18

120

4-ø19

65

50

4-ø8

F05

65

2½”

75

151

32

46

139.7

4-ø19

145

4-ø18

145

4-ø18

140

4-ø19

65

50

4-ø8

F05

80

3″

95

160

32

46

152.4

4-ø19

160

8-ø18

160

8-ø18

150

8-ø19

65

50

4-ø8

F05

100

4″

111

180

32

52

190.5

8-ø19

180

8-ø18

180

8-ø18

175

8-ø19

90

70

4-ø10

F07

125

5″

129

193

32

56

215.9

8-ø22.4

210

8-ø18

210

8-ø18

210

8-ø23

90

70

4-ø10

F07

150

6″

142

207

32

56

241.3

8-ø22.4

240

8-ø22

240

8-ø22

240

8-ø23

90

70

4-ø10

F07

200

8″

170

240

45

60

298.4

8-ø22.4

295

8-ø22

295

12-ø22

290

12-ø23

125

102

4-ø12

F10

250

10″

206

270

45

68

361.9

12-ø25.4

350

12-ø22

355

12-ø26

355

12-ø25

125

102

4-ø12

F10

300

12″

238

316

45

78

431.8

12-ø25.4

400

12-ø22

410

12-ø26

400

16-ø25

125

102

4-ø12

F10

350

14″

267

368

45

78

476.2

12-ø28.4

460

16-ø22

470

16-ø26

445

16-ø25

125

102

4-ø12

F10

400

16″

298

400

51

86

539.7

16-ø28.4

515

12-ø26

525

16-ø30

510

16-ø27

175

140

4-ø18

F14

450

18″

318

422

51

105

577.8

16-ø31.8

565

20-ø26

585

20-ø30

565

20-ø27

175

140

4-ø18

F14

500

20″

349

479

57

130

635

20-ø31.8

620

20-ø26

650

20-ø33

620

20-ø27

175

140

4-ø18

F14

600

24″

410

562

70

152

749.3

20-ø35.1

725

20-ø30

770

20-ø36

730

24-ø33

210

165

4-ø22

F16

Advantages of stainless steel butterfly valve!

  • Corrosion resistance

    Stainless steel is highly resistant to corrosion, making it ideal for use in harsh environments where other materials may corrode or degrade.

    W
  • Hygiene

    Stainless steel is easy to clean and sanitize, making it suitable for applications in the food and beverage, pharmaceutical, and other industries where

    hygiene is critical.

    E
  • Durability

    Stainless steel is a strong and durable material that can withstand high temperatures and pressures, making it suitable for use in a wide range of

    applications.

    S
  • Quick response time

    Butterfly valves can be operated very quickly, which makes them suitable for applications where rapid response is required.

    D
  • Easy to install and maintain

    Butterfly valves are relatively easy to install and maintain, which can help to reduce downtime and maintenance costs.

    O
  • Versatility

    Stainless steel butterfly valves are available in a range of sizes and can be used for a variety of applications, from small-scale residential plumbing to

    large-scale industrial processes.

    M

wesdom

Project Name: Famous Textile Factory Project in Pakistan

Main products: flow meters and SS valves

Client Feedback:

The customer said: "Thank you very much for the on-the-spot inspection and very professional guidance of the WESDOM team." He was really shocked by the warm and considerate service and professional technical guidance of WESDOM. WESDOM is trustworthy!

Project Pictures:





wesdom butterfly valve
