Gate Valve Mechanical Joint Type
Gate Valve Mechanical Joint Type

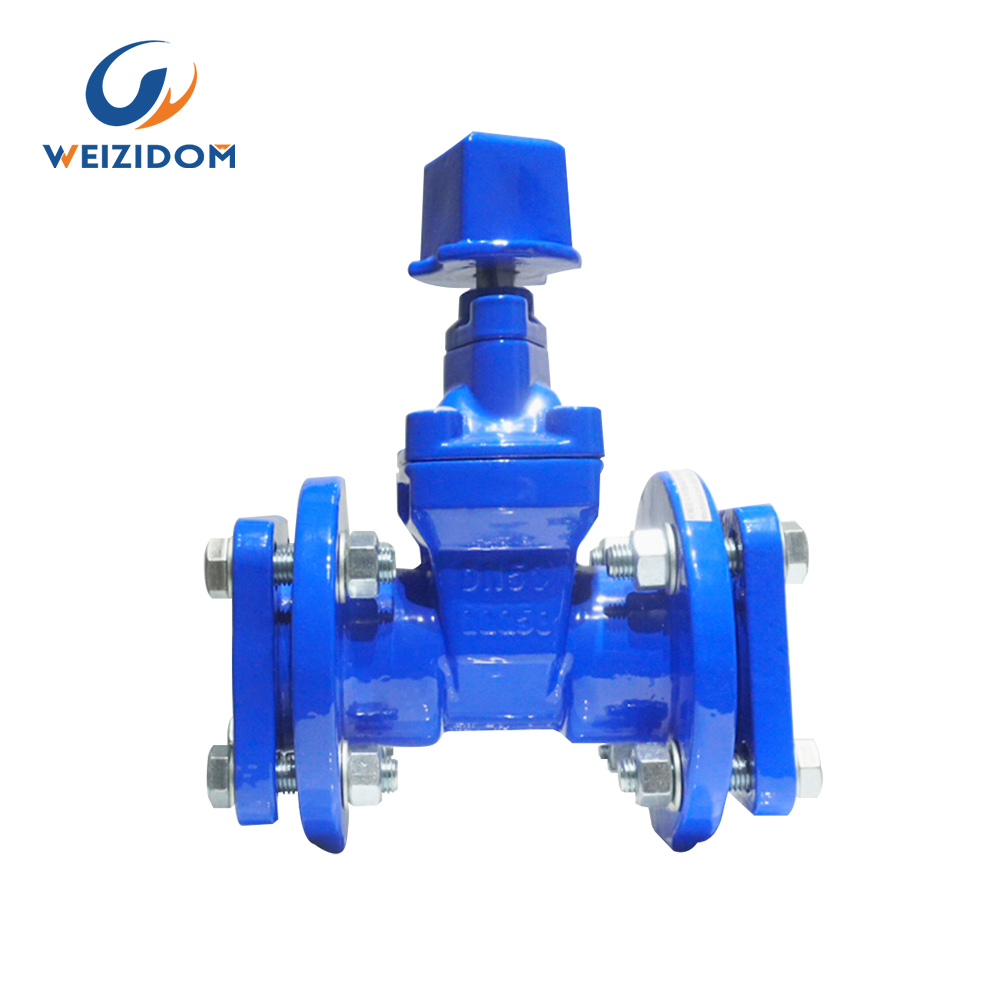

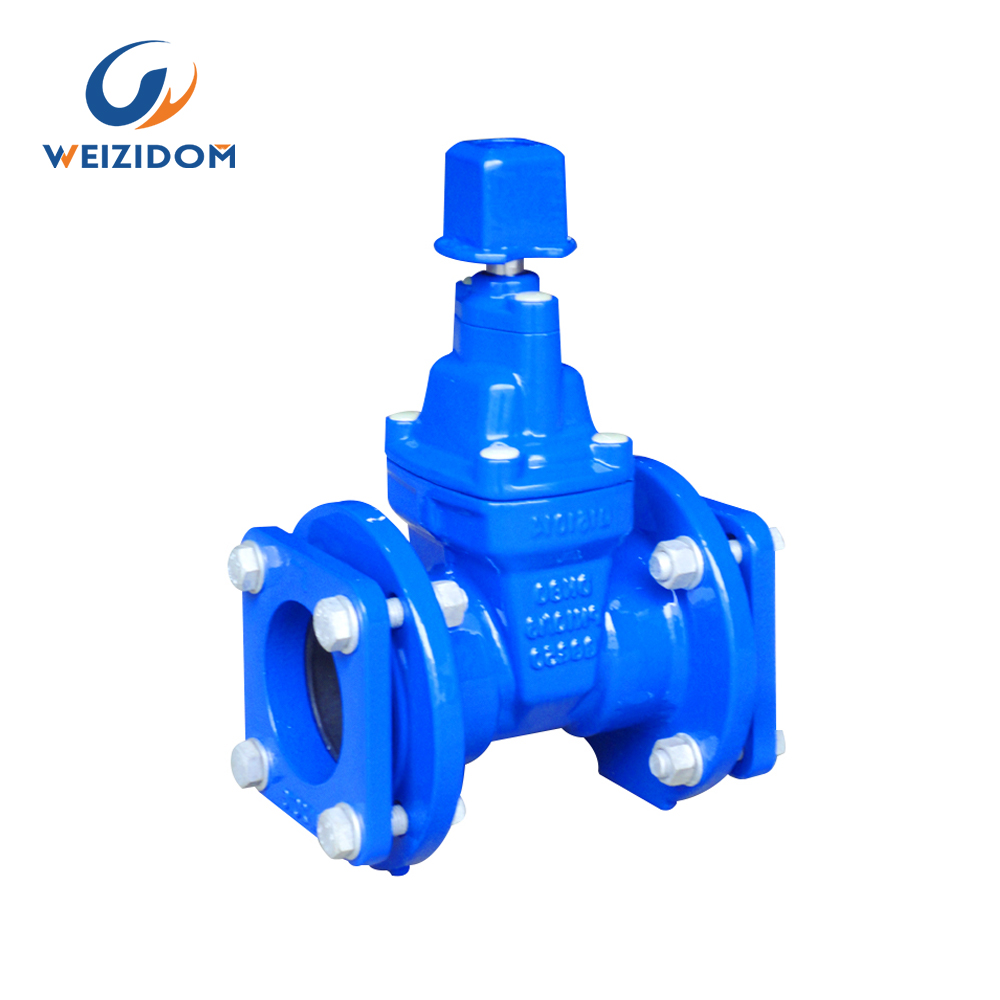

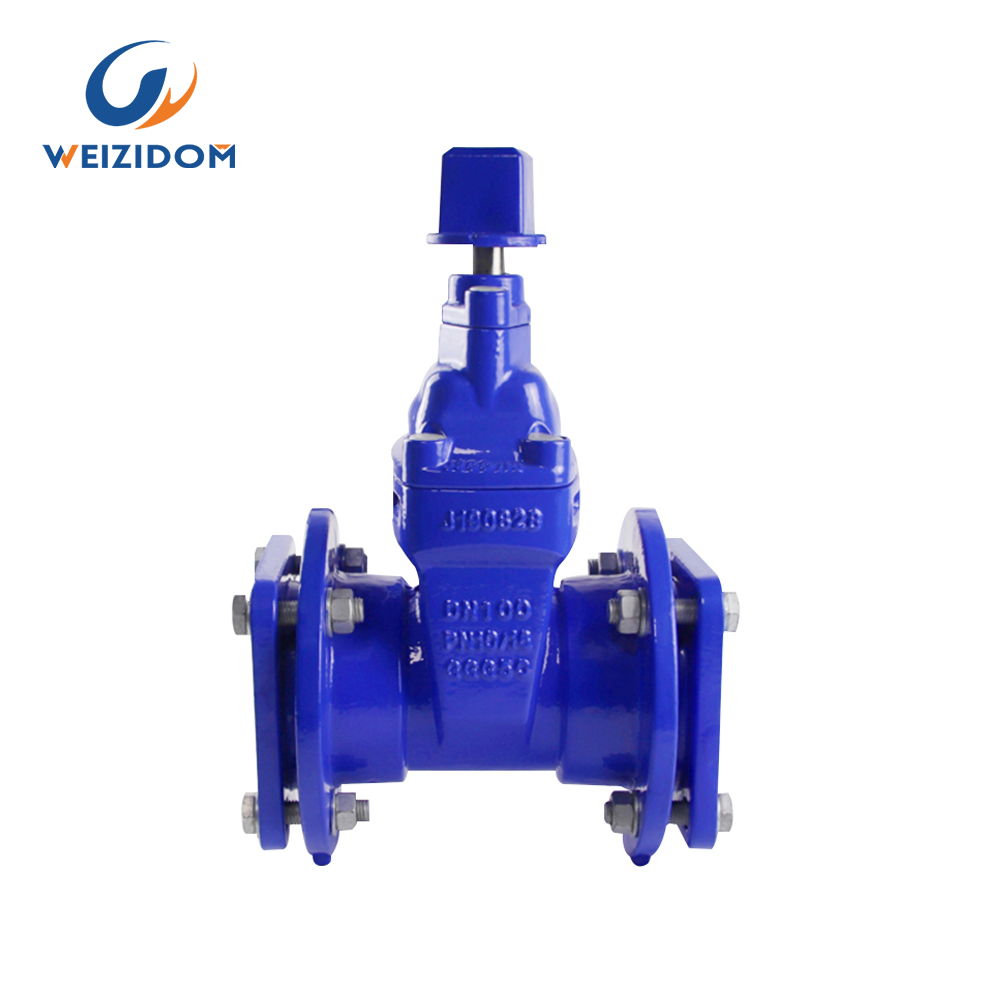

Mechanical joint Resilient Seated Gate Valve

Size: DN40-DN300

Temperature: 0-80℃

Pressure: 10/16Bar

Body Test: 15/24Bar

Tests: EN12266-1

Design: EN1171

Face to Face: EN558-1 Series 3/14/15

Operation: Handwheel / Cap

Medium: Water

Product Introduction

Which is designed and manufactured for use in water, wastewater, and sewage. The main usage is for isolation purposes. Full bore design makes it possible to be used bi-directionally and the fluid could clean the sealing surface every time when the valve is opened.

Why choose us!

  • Our advantage

    We’ve been in the valve industry for more than 20 years. WESDOM GROUP consists of 5 factories and 4 overseas branches. We face the global valve

    service.Its product classification is complete, the commonly used product size is sufficient, and you can buy it with confidence!

    A
  • Our Mission

    To be a high-quality supplier of fluid control systems and plan maker; To contribute our wisdom and strength to the development of the cutting-edge

    technology of fluid control systems.

    M

Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang

and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

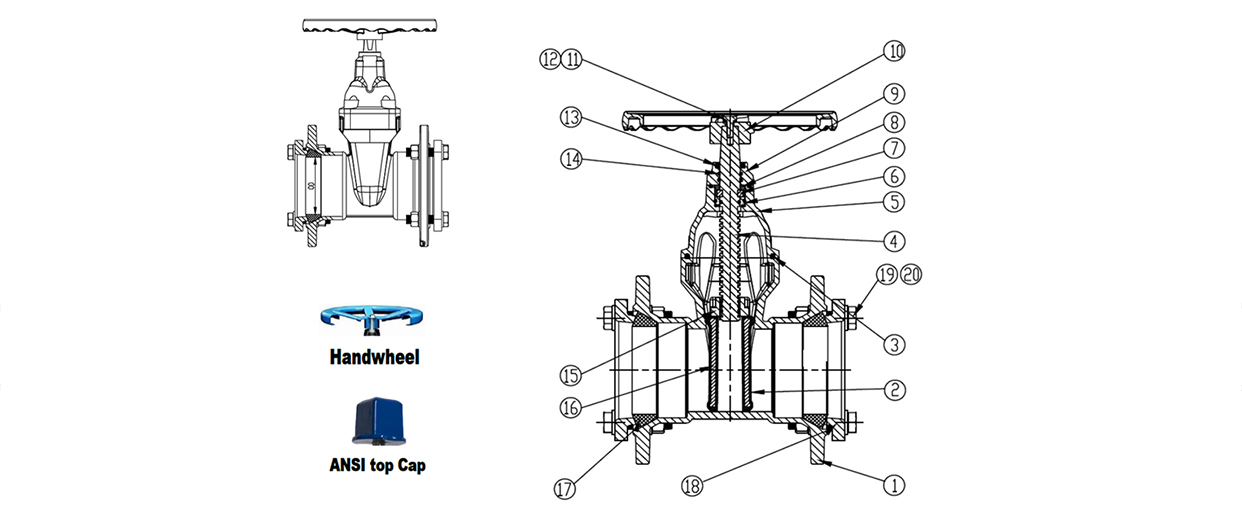

Detailed parameters



No.

Component



Standard Material



Optional

upon request

1

Body

Ductile Cast Iron GJS 500-7



2

Disc

EPDM + Ductile Iron

WRAS Approved EPDM + DI

3

Bonnet Gasket

NBR

EPDM

4

Stem

Stainless Steel AISI 420

Stainless Steel AISI 431/304/316

5

Bonnet

Ductile Cast Iron GJS 500-7



6

Thrust Washer

CuZn39Pb1 Brass

Bronze

7

Holding Ring

CuZn39Pb1 Brass

Bronze

8

Thrust Sleeve

CuZn39Pb1 Brass

Bronze

9

Gland

Ductile Cast Iron GJS 500-7



10

Handwheel/Cap

Ductile Cast Iron GJS 500-7

Bronze

11

Bolt

Stainless Steel AISI 304



12

Flat Washer

Stainless Steel AISI 304

EPDM

13

O-Ring

NBR

EPDM

14

O-Ring

NBR



15

Stem Nut

CuZn39Pb1 Brass

Bronze

16

Core

Ductile Cast Iron GJS 500-7



17

Sealing Gasket

NBR

EPDM

18

Flange Piece

Ductile Cast Iron GJS 500-7



19

Bolt

Galvanized Steel



20

Flat Washer

Galvanized Steel

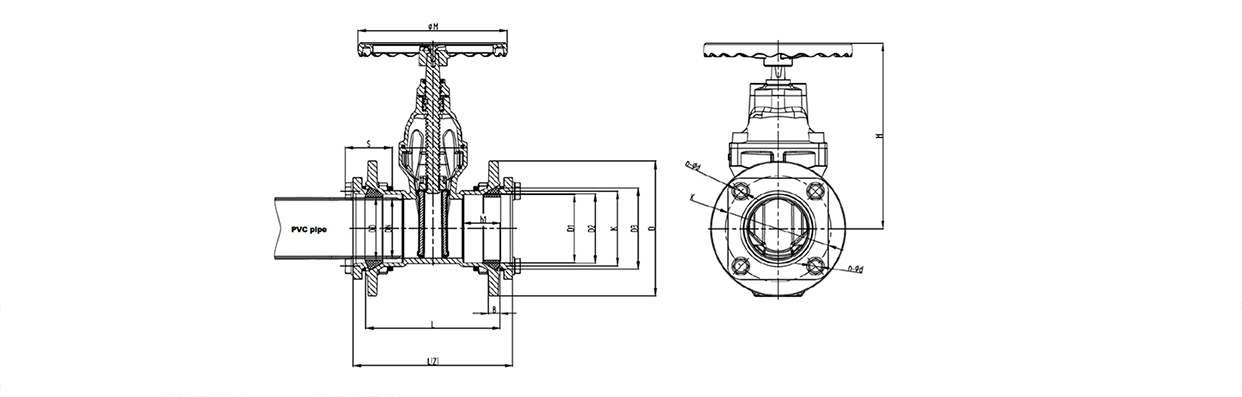

SIZE

(DN)

D1

D2

D3

K

D

h1

L

L(Z)

H

H1

H2

B

50

69

70.6

87.3

125

165

58

178

235

215

220

275

9

65

80

81.6

98

145

185

63.5

190

238

250

250

310

10

80

96

97.6

115.8

160

200

63.5

203

260

275

275

330

12

100

116

121.2

140

185

230

63.5

229

287

320

330

380

12

150

166

171.2

194

240

285

63.5

267

325

400

405

450

17

200

231

236.2

258

295

340

63.5

292

360

495

515

550

18.5

250

286

291.2

314

370

425

63.5

330

398

590

610

645

23



wesdom gate valve

Project Name: Pakistan Petroleum Project

Main Products: API valves and fittings

Client Feedback:

WESDOM is a very trustworthy team, not only professional, but also caring and enthusiastic in service. If there is a demand in the future, we will choose WESDOM without hesitation.

Project Pictures:







wesdom butterfly valve

WESDOM GATE VALVE
