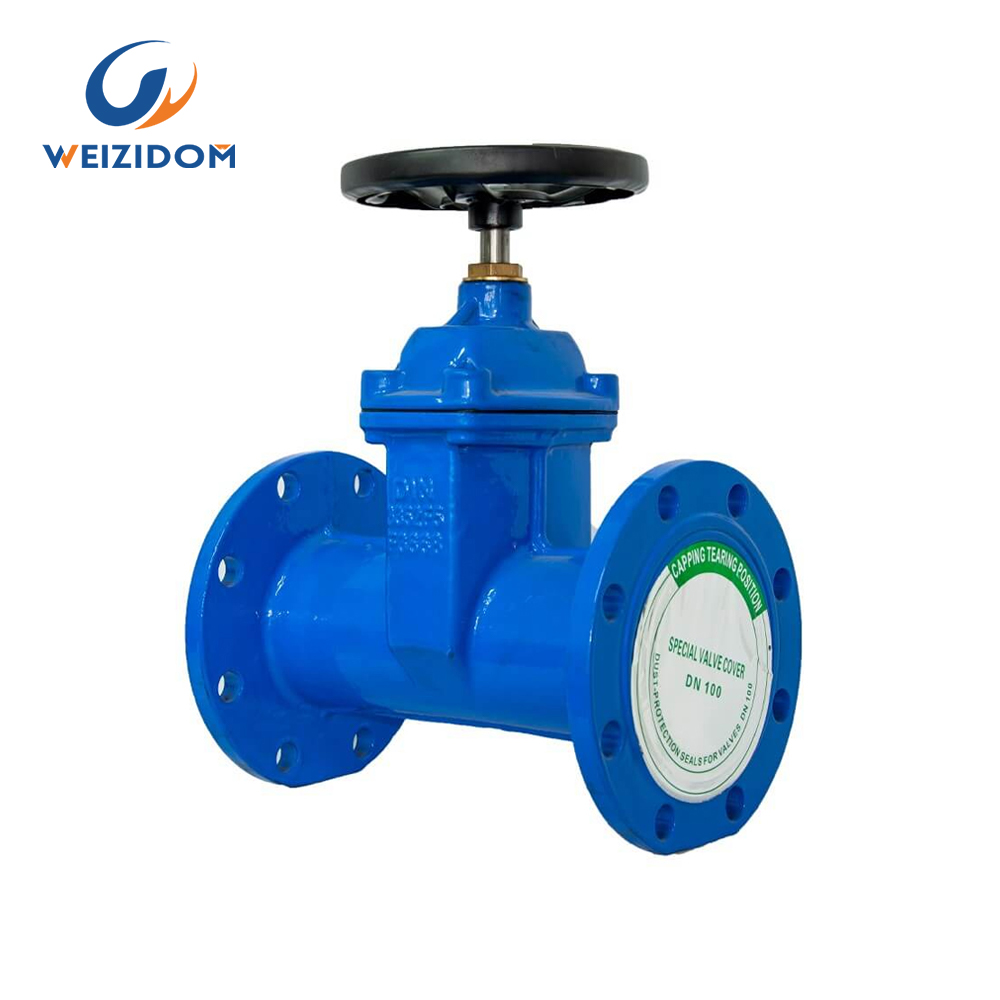

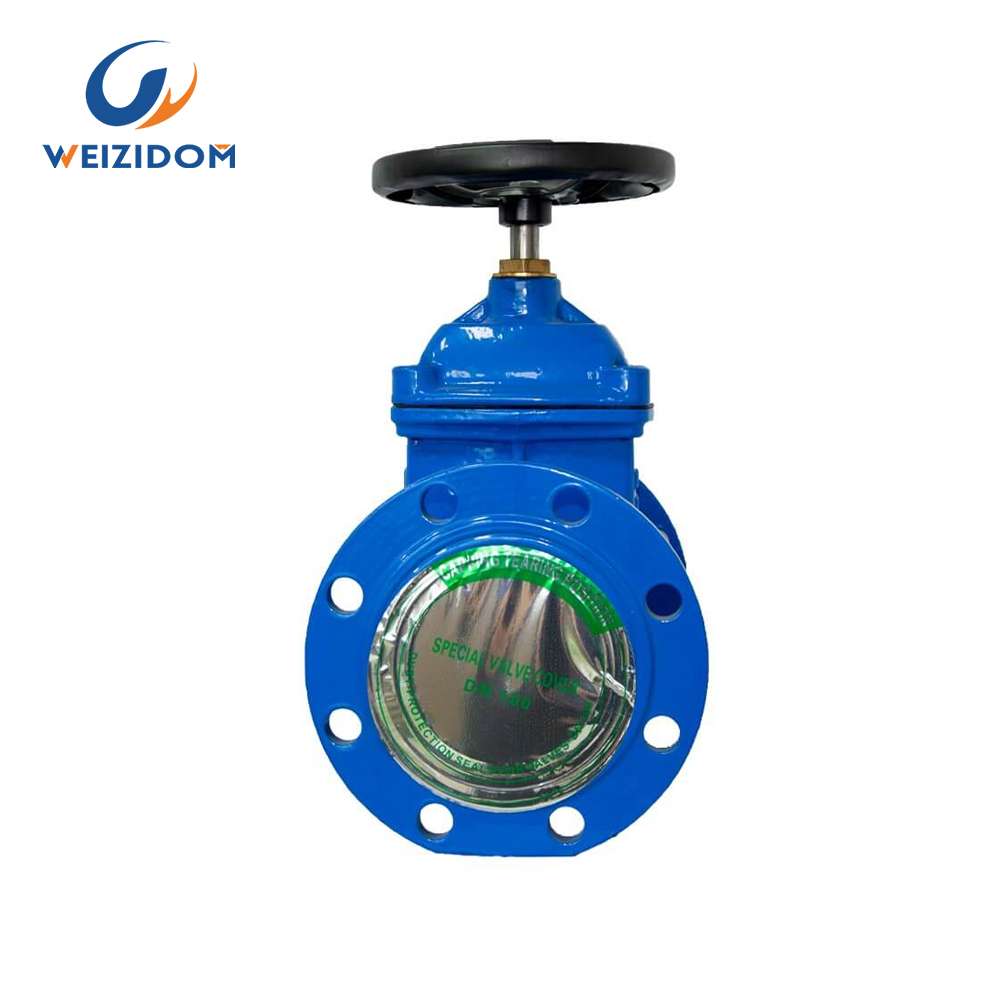

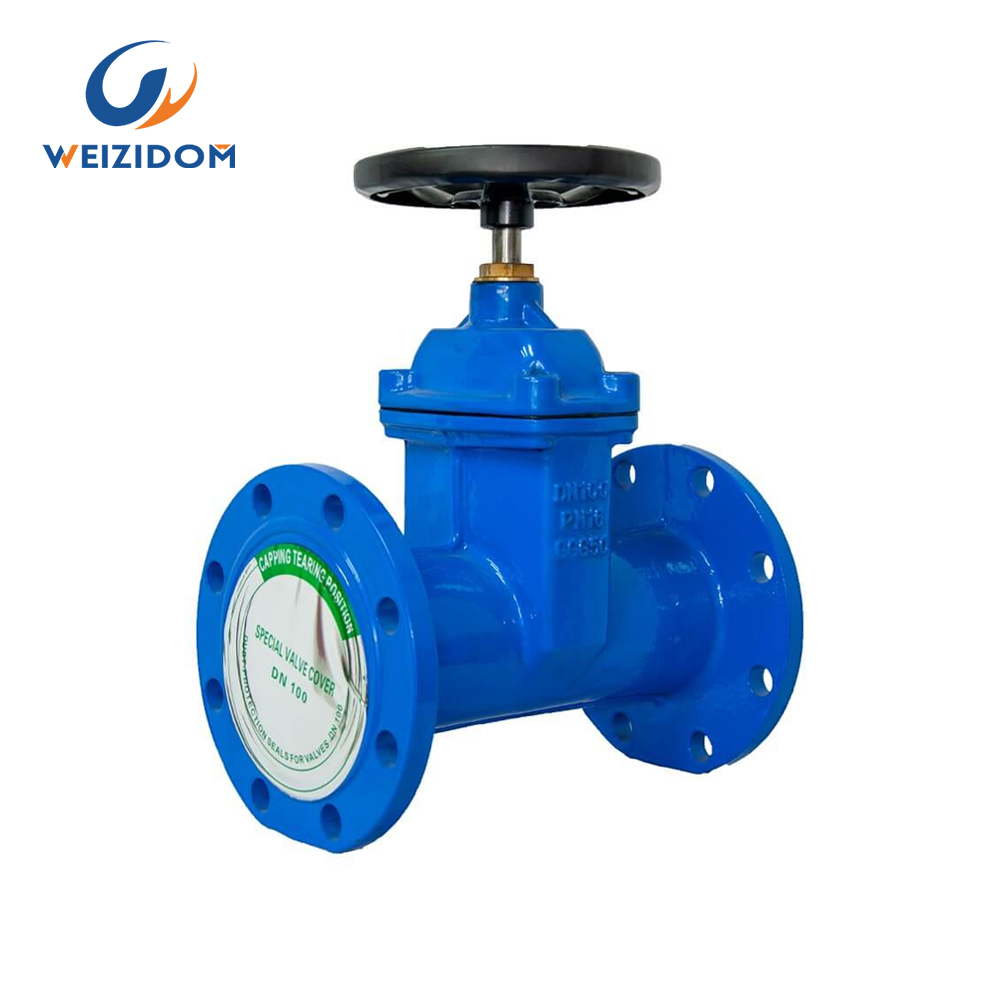

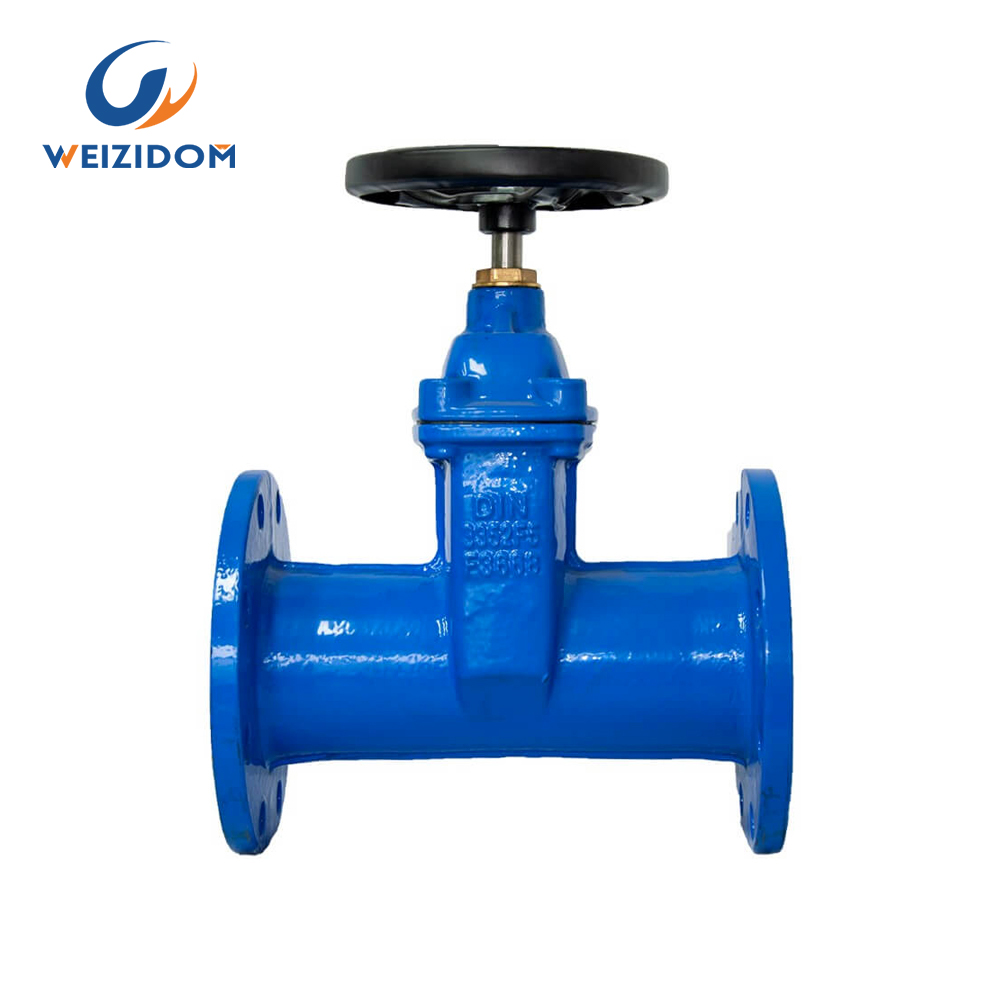

DIN F5 resilient seated gate valve

Product Category: Gate Valve

Diameter: DN50-DN300

Pressure: PN16/PN25

Valve design:DIN3352-F4

Face to Face:DIN3202、ISO5752

Flange Drilling:DIN2501/EN1092

Send E-mail:info@wsdvalve.com Mobile: +86-173197327665

Product Introduction

DIN F5 resilient seated gate valve is a type of gate valve that conforms to the German DIN standard. DIN F5 refers to the valve’s face-to-face dimension of 200mm. The valve is designed with a resilient seat, which is typically made of materials such as rubber or EPDM.

The resilient seat of the valve provides a tight seal, preventing leaks and minimizing the risk of contamination. The valve’s gate is designed to move up and down to control the flow of fluids in a pipeline. When the valve is fully open, the gate is lifted completely out of the flow path, allowing for maximum flow capacity.

DIN F5 resilient seated gate valves are commonly used in water treatment plants, sewage systems, and industrial processes. They are known for their reliability, durability, and ease of use, making them a popular choice for many industries.

Why choose us!

  • WESDOM patent products, patent certification

    The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards

    for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

    W
  • The product has an independent identity to ensure traceability

    Each wesdom product has its own unique identification number, to ensure product traceability.

    E
  • Provide material inspection report

    All wesdom products can provide the material inspection report of the main parts.

    S
  • One-stop service

    One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

    D
  • WESDOM has a lot of project experience

    We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

    O
  • WESDOM has a strict quality control system

    WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

    M

Quality Control Process

quality control process

Standard Test

test



Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang

and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

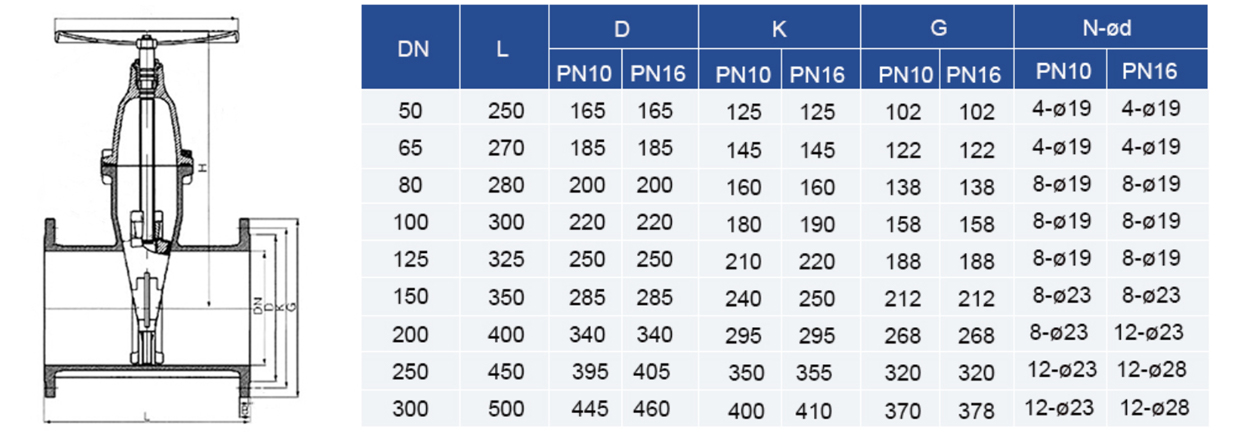

Detailed parameters

DIN F5 resilient gate valve

DN L -mm d-mm c-mm x-n T-mm f-mm g-mm working pressure
PN10 PN16 PN10 PN16 10kg 16kg
50 250 165 165 125 125 4-ø19 19 3 99 PN10/16
65 270 185 185 145 145 4-ø19 19 3 118
80 280 200 200 160 160 8-ø19 19 3 132
100 300 220 220 180 180 8-ø19 19 3 156
125 325 250 250 210 210 8-ø19 19 3 184
150 350 285 285 240 240 8-ø23 19 3 211
200 400 340 340 295 295 8-ø23 12-ø23 20 3 266
250 450 395 405 350 355 12-ø23 12-ø26 22 3 319
300 500 445 460 400 410 12-ø23 12-ø26 24.5 4 370

wesdom gate valve



Advantages of DIN F5 resilient gate valve!

  • Flat Base Seat

    Traditional gate valves used to have foreign objects such as stone, wood, cement, paper, and other debris in the notch of the valve bottom, then cause water leakage when the valve can not be close tightly. A soft seal gate valve is designed with a flat base, which is in the pipe’s same level, then no more foreign objects fill in, easily to be free-flowing.

    W
  • Overall Rubber Coating

    Using high-quality rubber to overall coat the valve disc both inside and outside, with domestically leading rubber vulcanized technology, the valve is able to maintain accurate geometry size. What’s more, high adhesion between the rubber and valve disc makes the rubber steadily stick with good elastic memory.

    E
  • Corrosion Resistance

    The valve body is coated with epoxy resin powder, which can prevent the valve from corrosion and rusting, and the valve can be used in the wastewater system. Difficult to break, traditional gate valves are used to cause fracture because of the hit or collision from other objects. The new valve body material is ductile iron, which reduces the fracture situation remarkably.

    S
  • Three “O” Ring Seals

    The stem with a three “O” ring seal design can reduce friction switch, significantly reducing water leakage. Besides, we can replace the valves without stopping the water construction.

    D
  • Helping to Drink

    Due to the internal body to non-toxic epoxy resin coating, the Inner and outer surfaces of the shutter is completely covered with rubber so it will not appear rust or corrosion, ensure water is available to drink.

    O
  • Body Casting

    The body uses precision casting precise geometry, making it possible to ensure the valve seal without any other finishing to the inner of the valve.

    O



wesdom butterfly valve

Project Name: Tanzania Water Project

Main Products: Gate Valves, Butterfly Valves, Check Valves, Pipe Fittings, etc.
