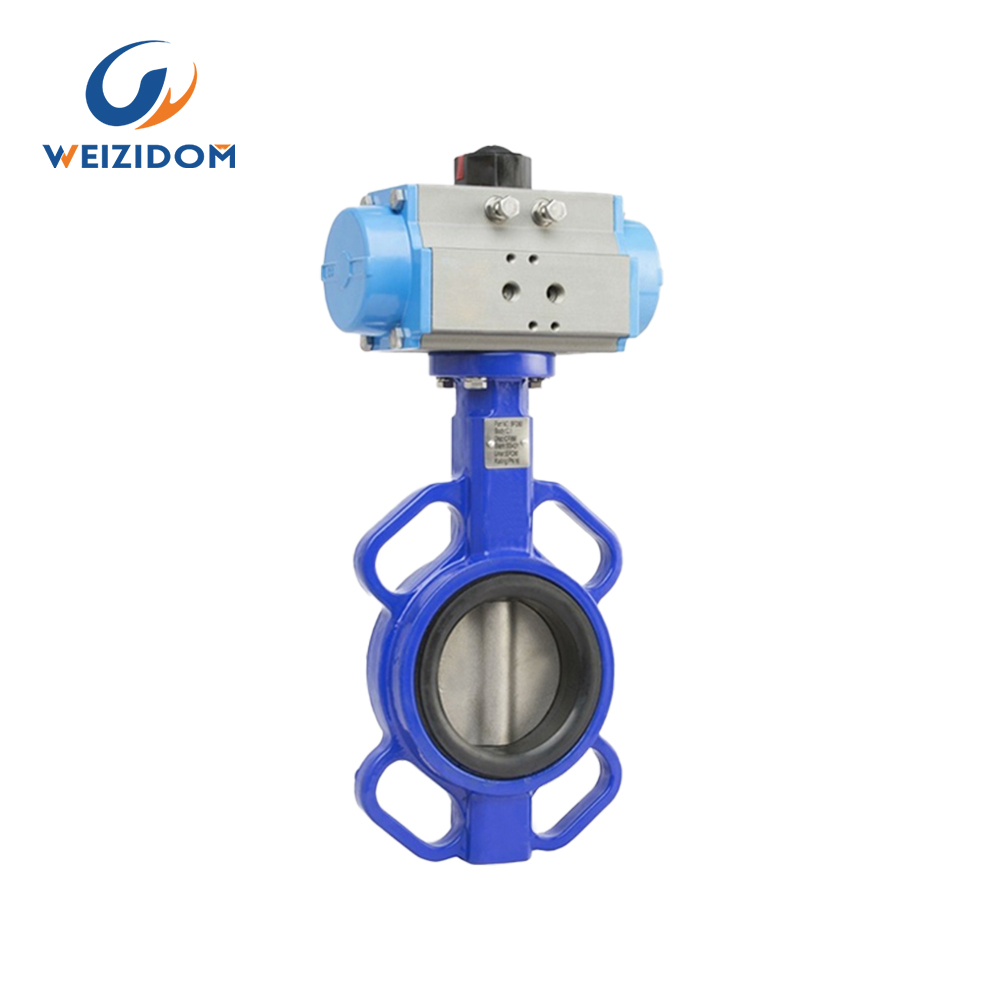

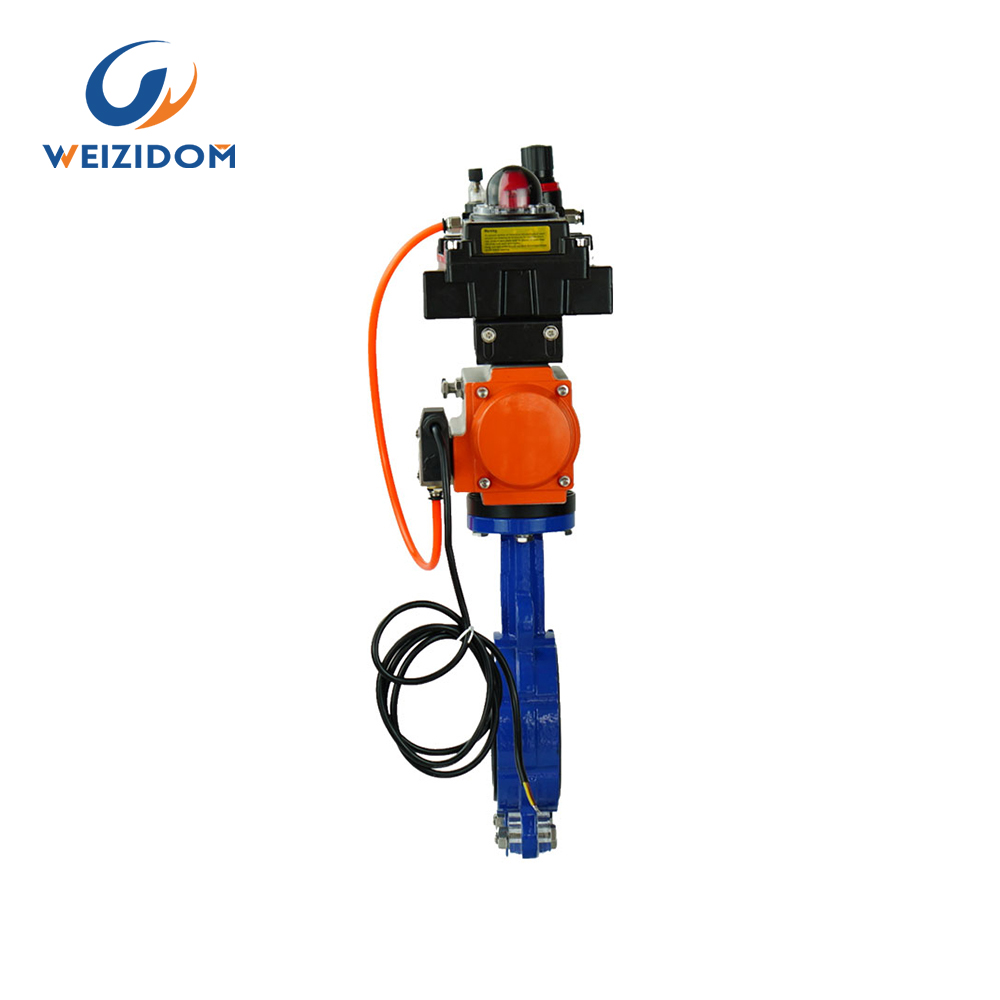

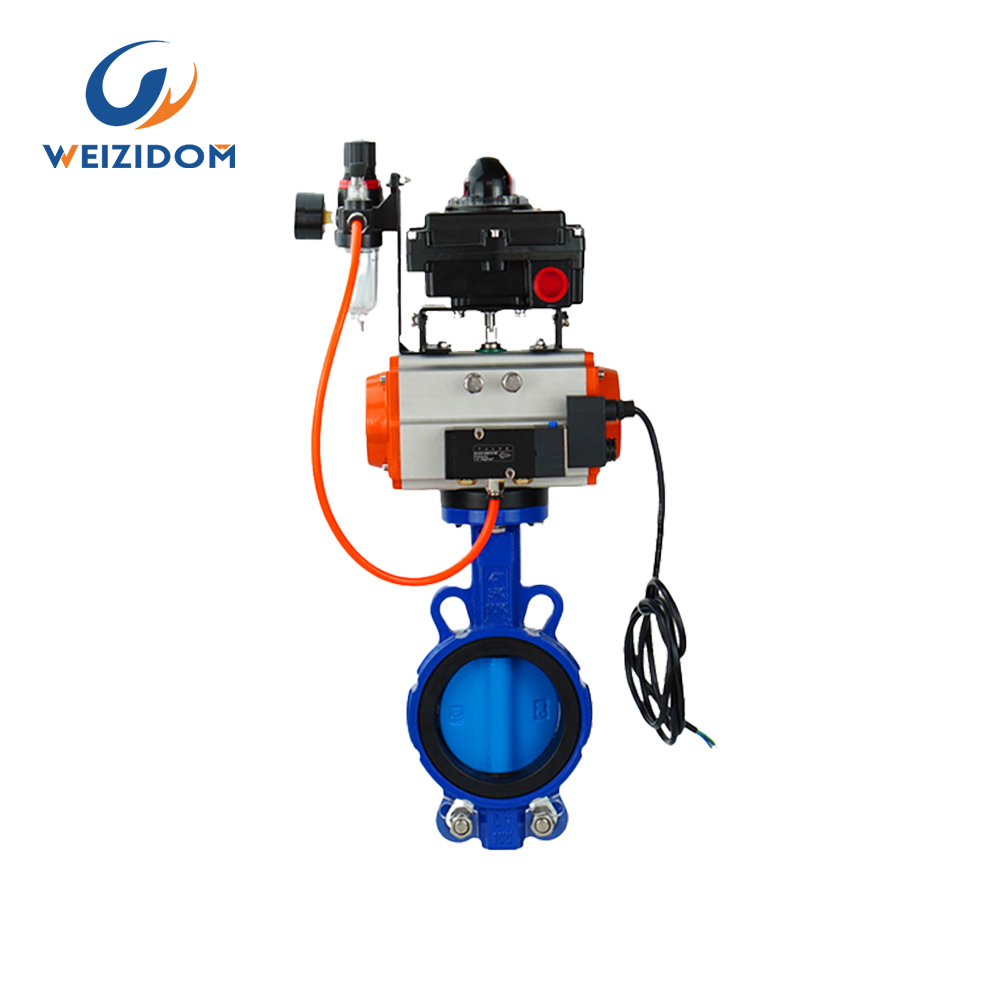

Pneumatic butterfly valve

Size Range: DN65~DN1500

Pressure: PN10/PN16

Seat Materials:EPDM,NBR

Disc Materials: Ductile Iron, WCB, 304,316, C95800,2501

Valve design:BS5155,EN593,API609,MSS SP-67

Send E-mail:info@wsdvalve.com Mobile: +86-173197327665

Product Introduction

A pneumatic butterfly valve is a type of butterfly valve that uses compressed air or gas to operate the valve. It uses a wafer-style body design and operates by moving a disc or plate inside the valve to regulate or control the flow of fluids. The pneumatic actuator is attached to the valve and is responsible for opening and closing the valve. When the actuator receives a signal, it uses compressed air or gas to move the valve disc to the desired position. The pneumatic wafer butterfly valve is commonly used in industries where there is a need for rapid and precise fluid control, such as in chemical processing, water treatment, and food and beverage production.

The pneumatic butterfly valve equipped with the pneumatic actuator is relatively fast, and does not require workers to do it by themselves. It saves human resources and time to a large extent.

Why choose us!

  • WESDOM patent products, patent certification

    The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards

    for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

    W
  • The product has an independent identity to ensure traceability

    Each wesdom product has its own unique identification number, to ensure product traceability.

    E
  • Provide material inspection report

    All wesdom products can provide the material inspection report of the main parts.

    S
  • One-stop service

    One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

    D
  • WESDOM has a lot of project experience

    We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

    O
  • WESDOM has a strict quality control system

    WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

    M

Standard Test

Standard Test



Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.



Detailed parameters

pneumatic butterfly valve

SIZE  A B L ANSI 150B DIN PN 10 DIN PN 16 JIS 10K ISO 5211 TOP FLANGE
mm in ΦK N-Φd ΦK N-Φd ΦK N-Φd ΦK N-Φd ΦD ΦD1 N-ΦG
40 1.5″ 67 141 33 98.5 4-Φ16 110 4-Φ18 110 4-Φ18 105 4-Φ19 65 50 4-Φ8 F05
50 2″ 67 141 43 120.6 4-Φ19 125 4-Φ18 125 4-Φ18 120 4-Φ19 65 50 4-Φ8 F05
65 2.5″ 75 151 46 139.7 4-Φ19 145 4-Φ18 145 4-Φ18 140 4-Φ19 65 50 4-Φ8 F05
80 3″ 95 160 46 152.4 4-Φ19 160 8-Φ18 160 8-Φ18 150 8-Φ19 65 50 4-Φ8 F05
100 4″ 111 180 52 190.5 8-Φ19 180 8-Φ18 180 8-Φ18 175 8-Φ19 90 70 4-Φ10 F07
125 5″ 129 193 56 215.9 8-Φ22.4 210 8-Φ18 210 8-Φ18 210 8-Φ23 90 70 4-Φ10 F07
150 6″ 142 207 56 241.3 8-Φ22.4 240 8-Φ22 240 8-Φ22 240 8-Φ23 90 70 4-Φ10 F07
200 8″ 170 240 60 298.4 8-Φ22.4 295 8-Φ22 295 12-Φ22 290 12-Φ23 125 102 4-Φ12 F10
250 10″ 206 270 68 361.9 12-Φ25.4 350 12-Φ22 355 12-Φ26 355 12-Φ25 125 102 4-Φ12 F10
300 12″ 238 316 78 431.8 12-Φ25.4 400 12-Φ22 410 12-Φ26 400 16-Φ25 125 102 4-Φ12 F10
350 14″ 267 368 78 476.2 12-Φ28.4 460 16-Φ22 470 16-Φ26 445 16-Φ25 125 102 4-Φ12 F10
400 16″ 298 400 86 539.7 16-Φ28.4 515 12-Φ26 525 16-Φ30 510 16-Φ27 175 140 4-Φ18 F14
450 18″ 318 422 105 577.8 16-Φ31.8 565 20-Φ26 585 20-Φ30 565 20-Φ27 175 140 4-Φ18 F14
500 20″ 349 479 130 635 20-Φ31.8 620 20-Φ26 650 20-Φ33 620 20-Φ27 175 140 4-Φ18 F14
600 24″ 410 562 152 749.3 20-Φ35.1 725 20-Φ30 770 20-Φ36 730 24-Φ33 210 165 4-Φ22 F16

Advantages of the pneumatic butterfly valve!

  • Quick and easy operation

    With the help of a pneumatic actuator, the valve can be opened and closed quickly and easily, allowing for efficient fluid control.

    W
  • Precise control

    The pneumatic actuator can be adjusted to provide precise control over the valve position, allowing for accurate regulation of fluid flow.

    E
  • High reliability

    Pneumatic butterfly valves are known for their high reliability and long service life, making them popular in many industries.

    S
  • Low maintenance

    Pneumatic valves require minimal maintenance, reducing downtime and saving on maintenance costs.

    D
  • Versatile

    Pneumatic butterfly valves can be used in a wide range of applications, including high-pressure and high-temperature environments.

    O
  • Cost-effective

    Pneumatic valves are often more cost-effective than other types of valves, making them a popular choice for many applications.

    M

wesdom butterfly valve

Project Name: Pakistan AL-MORIZE Sugar Factory

Main Products: Control/On-off butterfly valves, Control globe valves, Control ball valves, Angle seat valves.

The customer found WESDOM through Google advertisements, because he himself is relatively familiar with valves, so he sent the required products, product materials and required medium to our salesman in the international trade department, and the WESDOM salesman also promptly contacted with our factory's sales department and the engineering department, and then gave the customer the best price;
