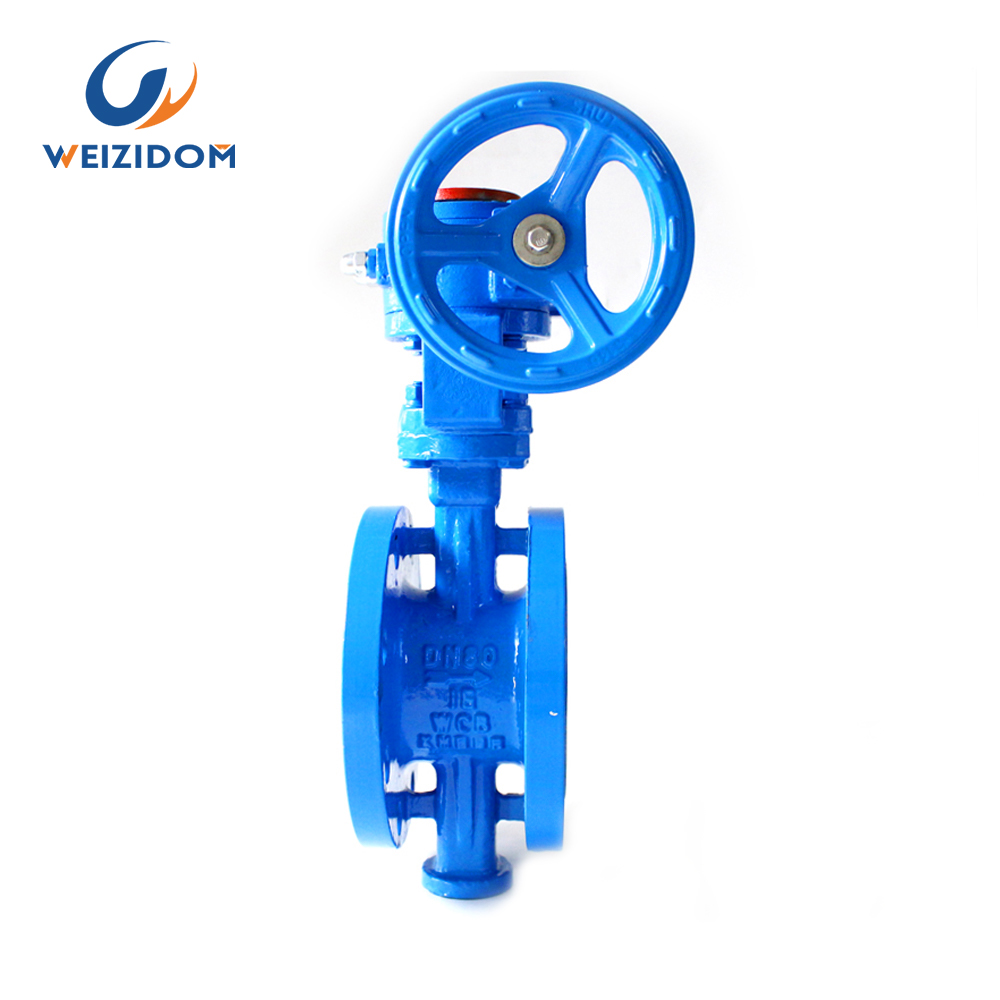

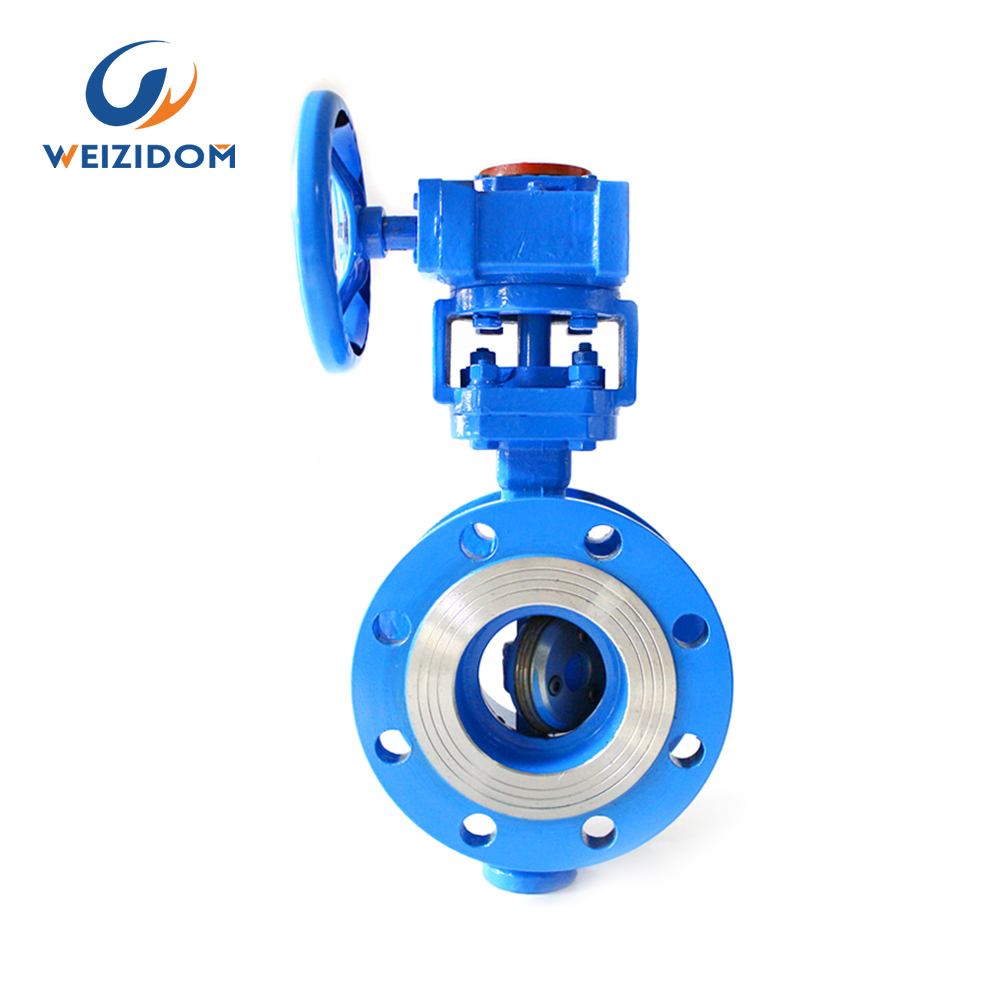

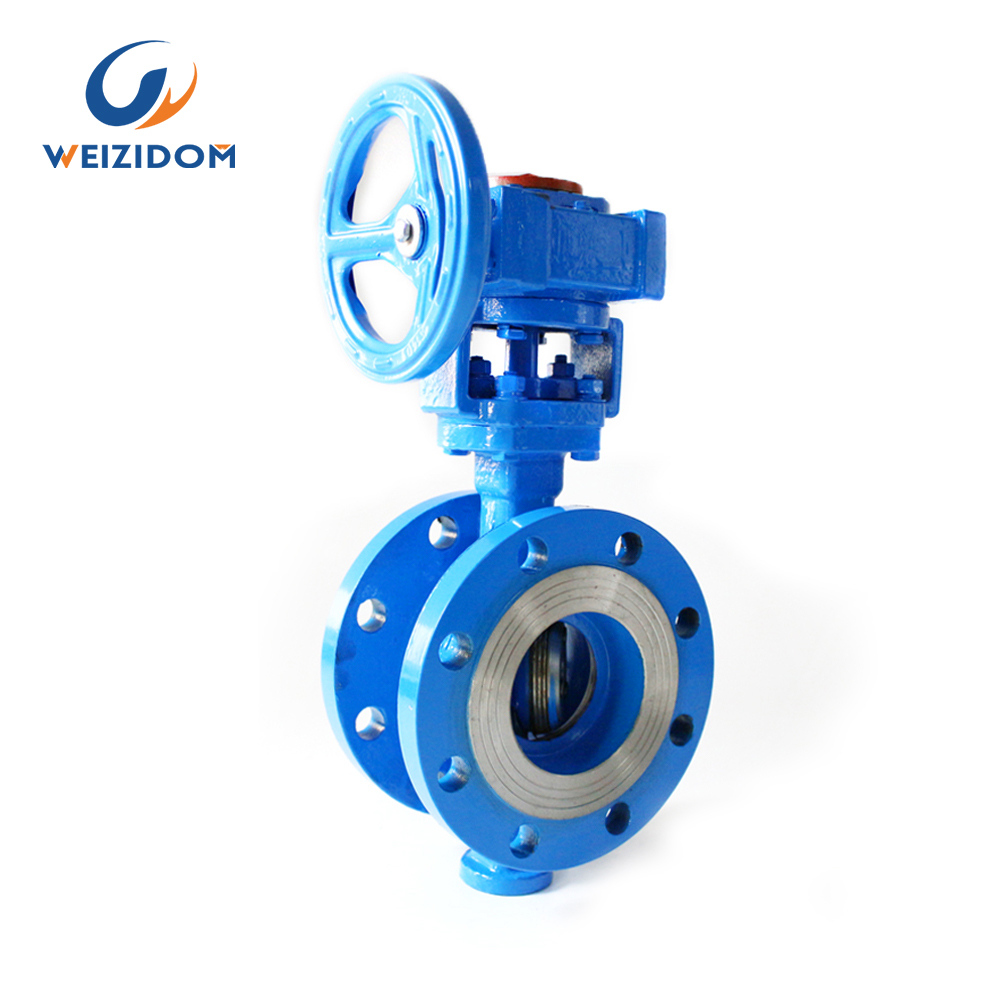

Triple eccentric butterfly valve

Size Range: 2~48"(DN50~DN1200)

Pressure: 0.6~2.5MPa

Body Materials: WCB , Stainless Steel

Disc Materials: WCB , Stainless Steel

Stem Materials:2Cr13, Stainless Steel

Valve design:API609,JIS B2064,JB/T18527

Send E-mail:info@wsdvalve.com Mobile: +86-173197327665

Product Introduction

This series of butterfly valves is a new generation of patented products which is independently researched and developed by our company, no pin connection is through a valve rod milling flat straight connected with the butterfly plate matched, with countersunk head bolt is fixed, is more convenient in assembly, firmer connection security. Use triple eccentric sealing structure, no mechanical wear, can achieve zero leakage, with bidirectional sealing function superior, is used as the best device in oil, chemical industry, metallurgy, electric power, building materials, food, medicine, water supply, and drainage, gas delivery of different media, such as adjust, cut off or connected to the fluid flow.

WESDOM valves are installed all over Asia, Africa continent, the Middle East, and throughout Europe. They have justifiably acquired a faultless reputation for their durability, reliability, and quality worldwide.

Why choose us!

  • WESDOM patent products, patent certification

    The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards

    for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

    W
  • The product has an independent identity to ensure traceability

    Each wesdom product has its own unique identification number, to ensure product traceability.

    E
  • Provide material inspection report

    All wesdom products can provide the material inspection report of the main parts.

    S
  • One-stop service

    One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

    D
  • WESDOM has a lot of project experience

    We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

    O
  • WESDOM has a strict quality control system

    WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

    M

Standard Test

Standard Test



Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

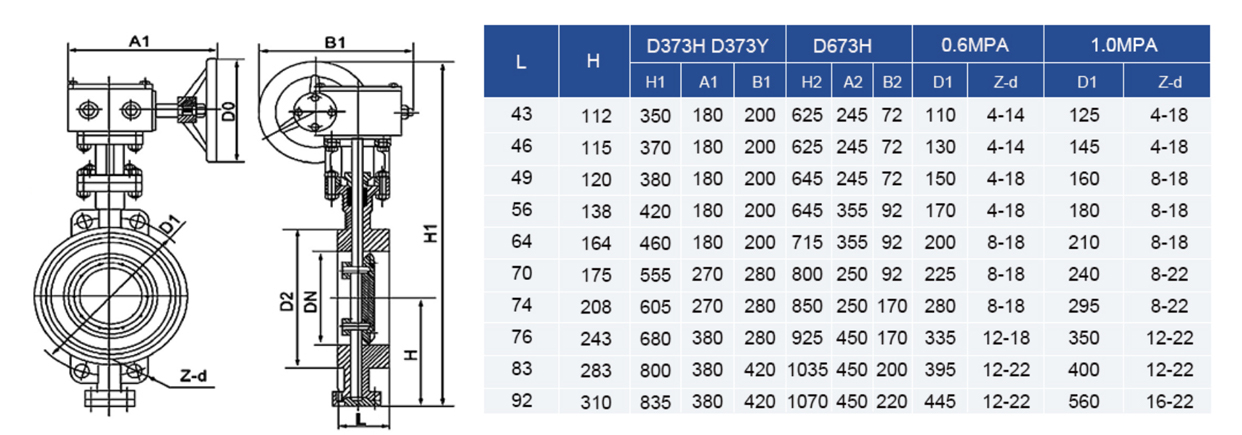

Detailed parameters

Triple eccentric butterfly valve

L H D373H D373Y D673H 0.6MPA 1.0MPA
H1 A1 B1 H2 A2 B2 D1 Z-d D1 Z-d
43 112 350 180 200 625 245 72 110 4-14 125 4-18
46 115 370 180 200 625 245 72 130 4-14 145 4-18
49 120 380 180 200 645 245 72 150 4-18 160 8-18
56 138 420 180 200 645 355 92 170 4-18 180 8-18
64 164 460 180 200 715 355 92 200 8-18 210 8-18
70 175 555 270 280 800 250 92 225 8-18 240 8-22
74 208 605 270 280 850 250 170 280 8-18 295 8-22
76 243 680 380 280 925 450 170 335 12-18 350 12-22
83 283 800 380 420 1035 450 200 395 12-22 400 12-22
92 310 835 380 420 1070 450 220 445 12-22 560 16-22
