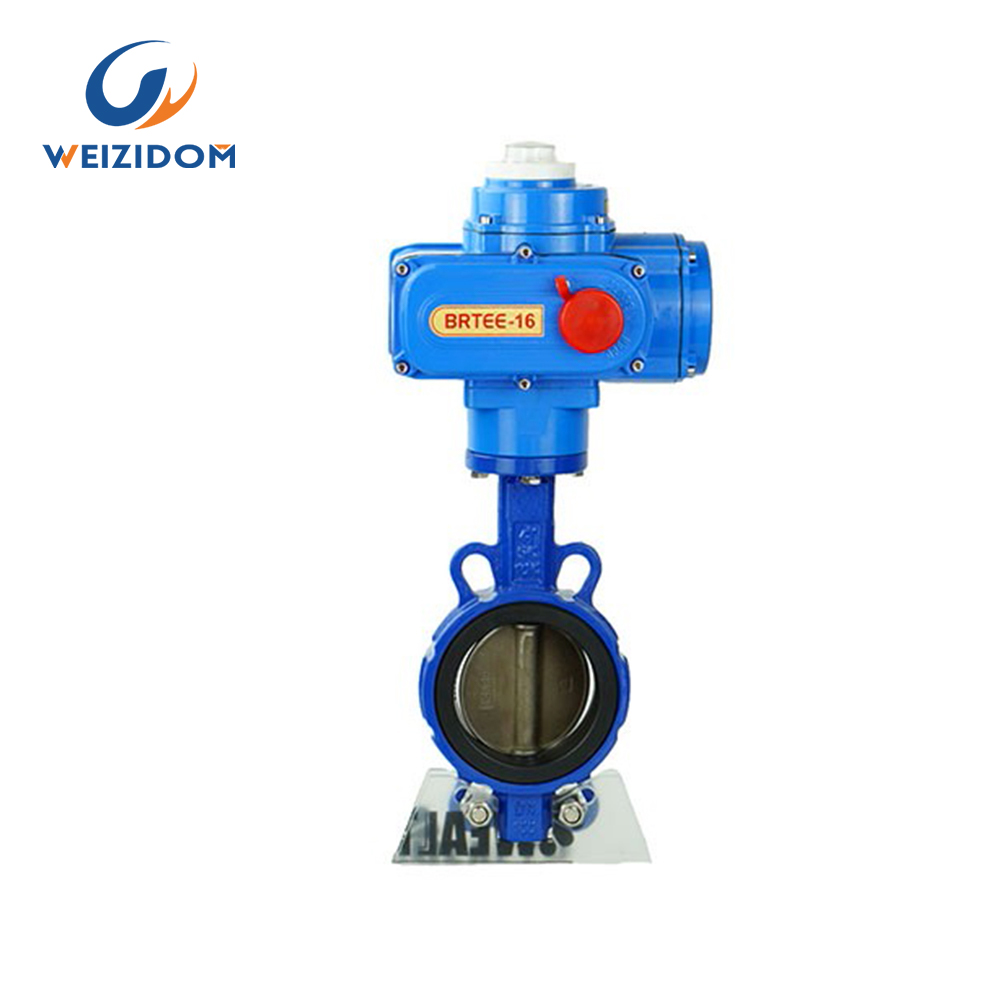

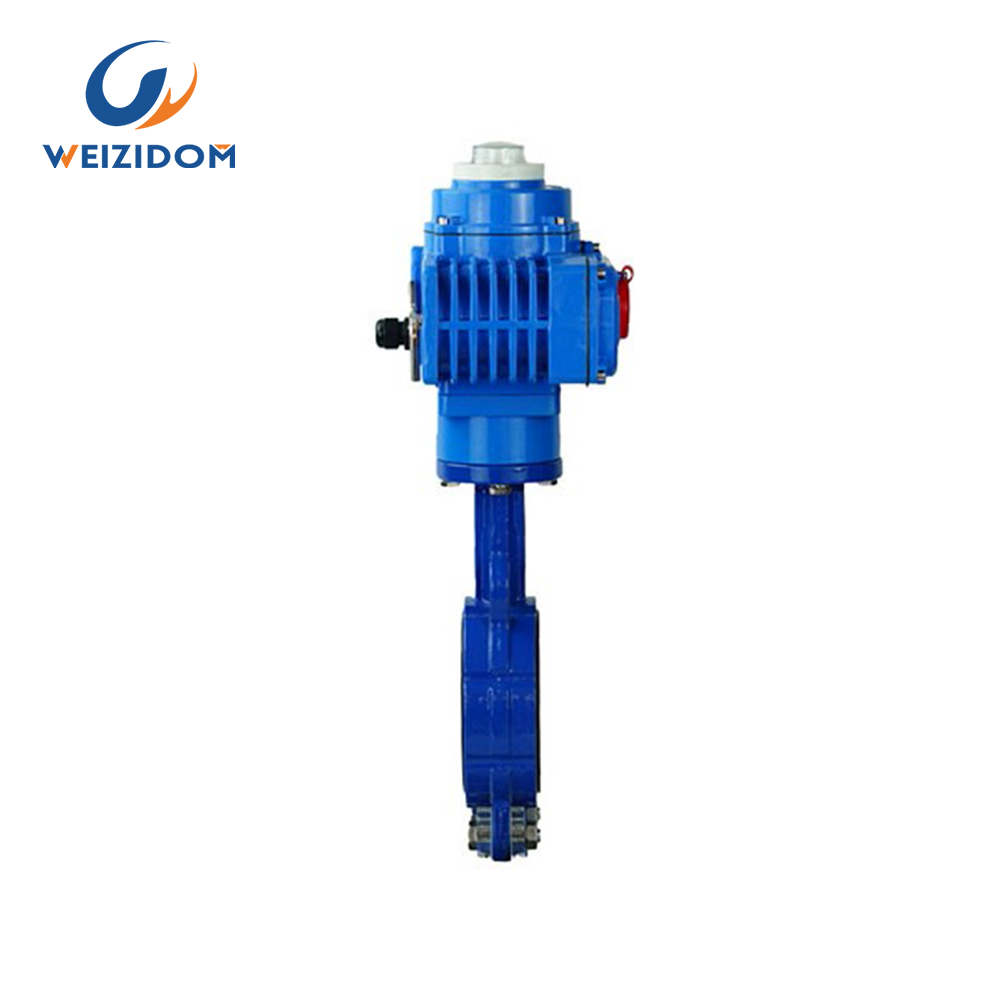

Electric soft seal butterfly valve

Size Range: DN65~DN1500

Design standard: BS5155,EN593,API609,MSS SP-67

Test inspection: API598

Working temperature: NBR O-70℃. EPDM o-80℃

Working pressure:PN10-16

Suitable medium: Water

Send E-mail:info@wsdvalve.com Mobile: +86-173197327665

Product Introduction

The creation of the electric soft seal butterfly valve has transformed the traditional fluid control mechanism. Electric soft-seal butterfly valves are widely used in the chemical manufacturing, oil and gas, and petroleum industries due to their unparalleled accuracy, efficiency, and sustainability. Electric soft seal butterfly valves are now the preferred choice of many organizations seeking to optimize their fluid control processes.

At its core, an electric soft seal butterfly valve is a type of quarter-turn valve that controls the flow of fluid by using a disc or vane that rotates in the pipe to either block or allow the passage of fluid. What sets the electric soft seal butterfly valve apart is its unique sealing mechanism, which employs a soft seal, usually made of materials such as EPDM, NBR, or PTFE, to ensure tight shut-off and prevent leakage.

The electric soft seal butterfly valve operates through an electric actuator that is connected to the valve’s stem. When the actuator is energized, it rotates the stem, which in turn rotates the disc or vane to control the flow of fluid. The soft seal, positioned around the circumference of the disc or vane, compresses against the seat, creating a reliable seal to prevent fluid leakage.

Why choose us!

  • WESDOM patent products, patent certification

    The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards

    for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

    W
  • The product has an independent identity to ensure traceability

    Each wesdom product has its own unique identification number, to ensure product traceability.

    E
  • Provide material inspection report

    All wesdom products can provide the material inspection report of the main parts.

    S
  • One-stop service

    One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

    D
  • WESDOM has a lot of project experience

    We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

    O
  • WESDOM has a strict quality control system

    WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

    M

Standard Test

Standard Test



Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.



Detailed parameters

electric soft seal butterfly valve

A B ANSI 150B PN 10 PN 16 JIS 10K
øK N-ød øK N-ød øK N-ød øK N-ød
72 136 139.7 4-ø19 145 4-ø18 145 4-ø18 140 4-ø19
88 146 152.4 4-ø19 160 8-ø18 160 8-ø18 150 8-ø19
96.5 158 190.5 4-ø19 180 8-ø18 180 8-ø18 175 8-ø19
115 179 215.9 8-ø19 210 8-ø18 210 8-ø18 210 8-ø23
126 197 241.3 8-ø22.4 240 8-ø22 240 8-ø22 240 8-ø23
161 230 298.4 8-ø22.4 350 12-ø22 295 12-ø22 290 12-ø23
199 271 361.9 12-ø25.4 400 12-ø22 355 12-ø26 355 12-ø25
215 305 431.8 12-ø25.4 460 16-ø22 410 12-ø26 400 16-ø25
261 350 476.2 12-ø28.4 515 16-ø26 470 16-ø30 445 16-ø25
290 381 539.7 16-ø28.4 565 2ø-ø26 525 20-ø30 510 16-ø27



Advantages of electric soft seal butterfly valve!

  • High Precision

    Electric actuators provide precise and consistent control of the valve, allowing precise regulation of fluid flow.

    W
  • Quick Operation

    The valve’s quarter-turn operation allows for fast opening and closing, reducing downtime and increasing productivity. This makes the electric soft seal butterfly valve ideal for processes that require frequent or rapid changes in fluid flow.

    E
  • Reliable Shut-off

    The soft sealing mechanism of the electric soft seal butterfly valve ensures tight shut-off, preventing leakage and reducing the risk of environmental contamination or damage to equipment.

    S
  • Automation Capabilities

    The electric soft seal butterfly valve can be easily integrated into automation systems, allowing for remote control and monitoring. This enables operators to adjust and optimize fluid flow parameters, enhancing process efficiency and reducing labor costs

    D
  • Low Maintenance

    The electric soft seal butterfly valve eliminates the need for manual operation, reducing maintenance requirements and costs associated with manual valves.

    O
  • Wide Range of Applications

    Electric soft-seal butterfly valves are widely used in the chemical manufacturing, oil and gas, and petroleum industries due to their unparalleled accuracy, efficiency, and sustainability.

    M

WESDOM

Project Name: A valve dealer in Pakistan imports valves as inventory for sale.

Main Products: American standard gate valves, stainless steel check valves, ductile iron soft-sealed gate valves, wafer butterfly valves, exhaust valves and other valves.

This valve distributor from Pakistan described some informations about their company to our sales manager of the international department.They have been engaged in the valve industry for 11 years and are very professional, with a fixed customer base and sales methods. As a middleman, they need to purchase a large number of valves that are sold every day. And China is a big valve producing country, so they intend to cooperate with Chinese valve manufacturers as their own exporter. After some comparisons, the enthusiasm form WESDOM left a deep impression on them. From the initial samples, trial orders to subsequent FCL orders, the cooperation is very smooth and pleasant. This Pakistan distributor said that the cooperation with WESDOM is very pleasant, and the products and services of WESDOM are also very considerate, and will have more cooperation with WESDOM valve in the future.
