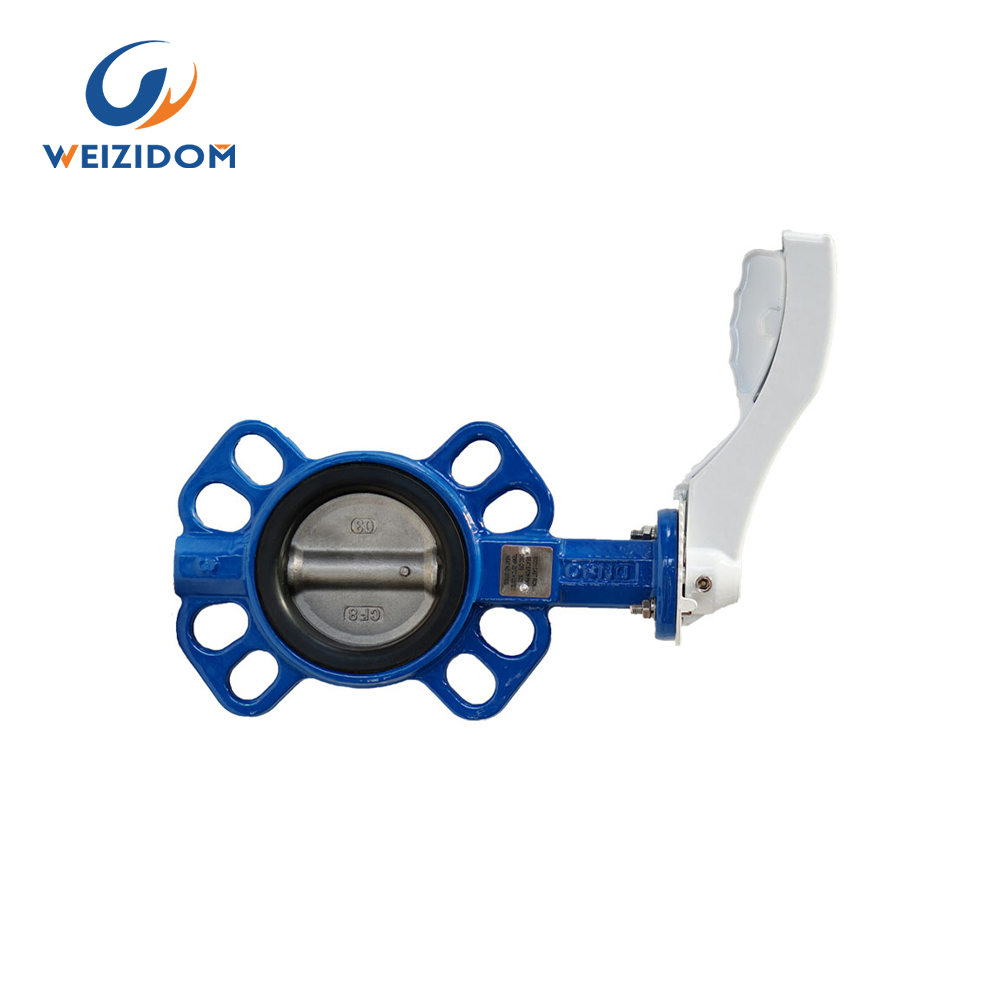

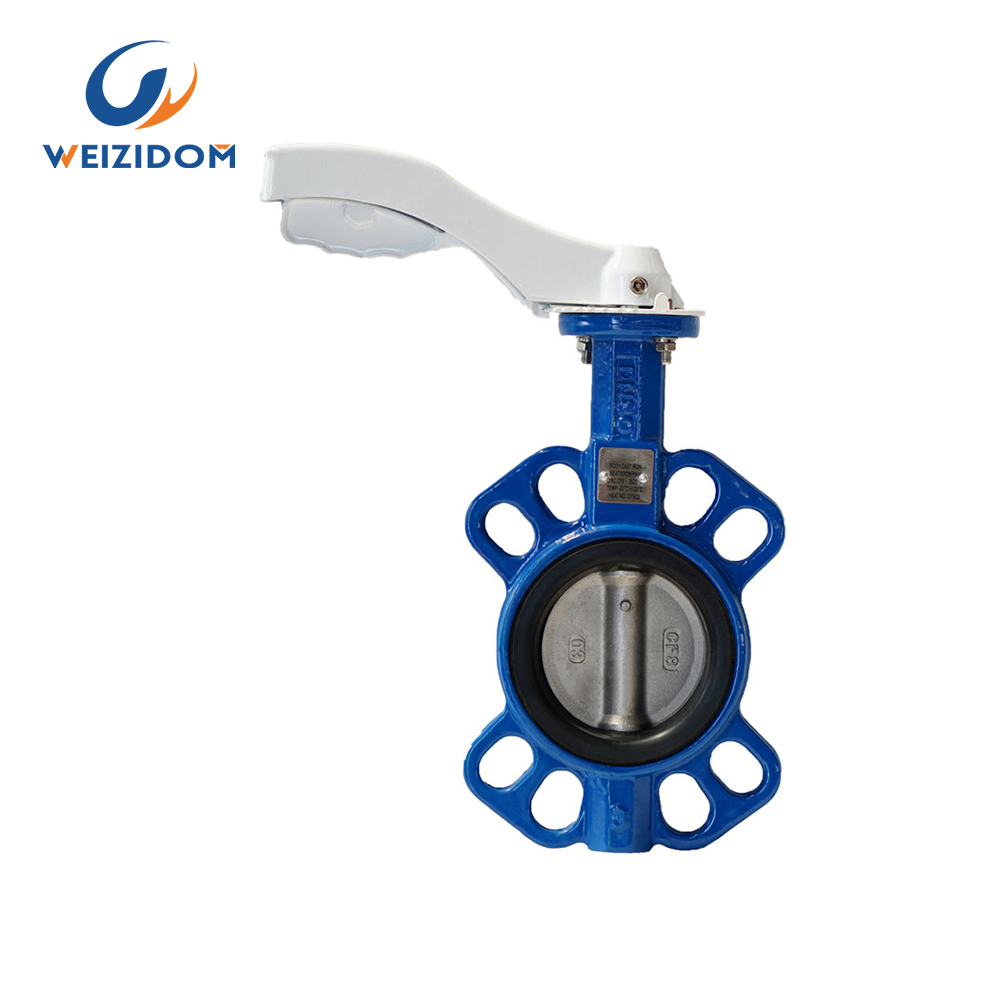

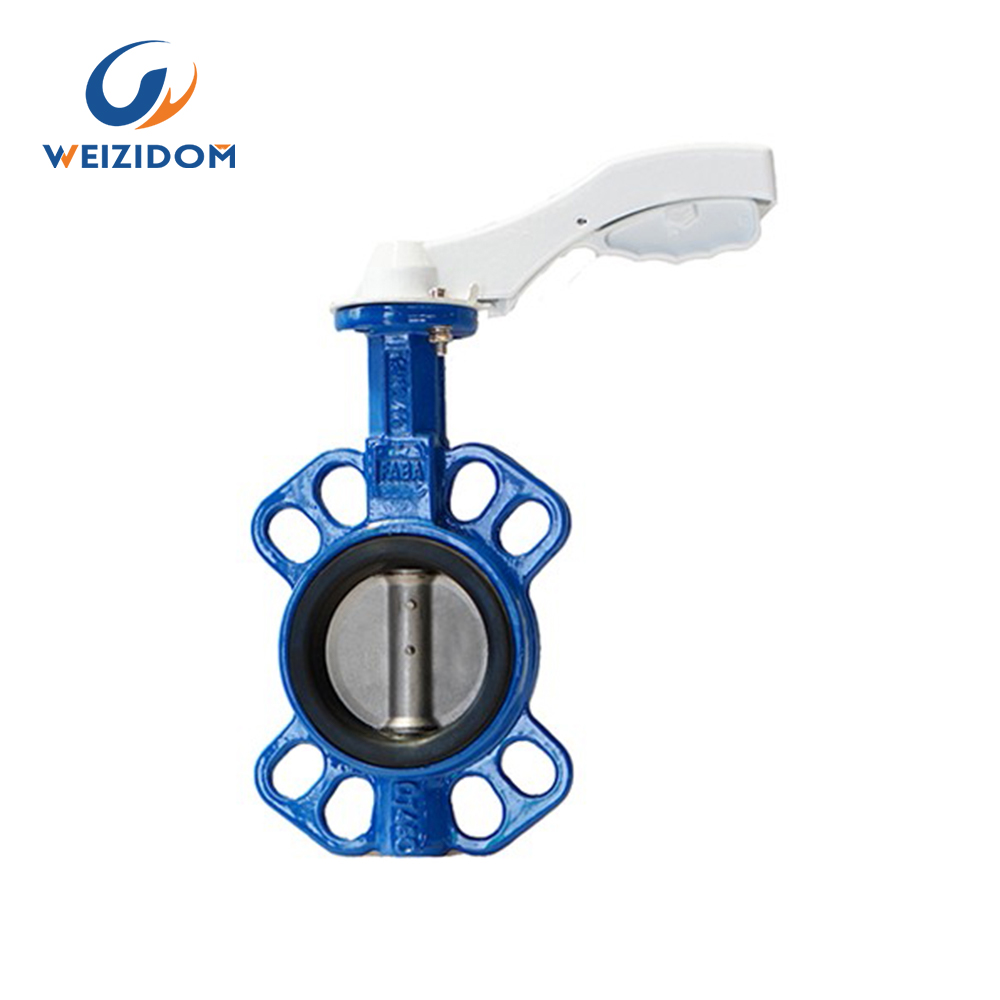

Multi standard aluminum handle butterfly valve

Size Range: DN40~DN600

Pressure: PN10/PN16

Seat Materials: NBR, EPDM, VITON, PTFE

Stem Materials: SS416, SS304, SS316

End Connection: Wafer

Valve design:API609,MSS SP-67

Send E-mail:info@wsdvalve.com Mobile: +86-173197327665

Product Introduction

An aluminum handle butterfly valve is a type of valve that uses a disc to control the flow of liquid or gas. The valve is operated by turning a handle made of aluminum, which rotates the disc to either allow or block the flow of fluid. The valve is commonly used in industrial applications such as water treatment plants, oil refineries, and chemical processing facilities. The aluminum handle is lightweight and durable, making it suitable for use in harsh environments.

Aluminum handle butterfly valves are preferred over other types of valves because of their simple design, low cost, and ease of operation. They are also versatile and can be used in a wide range of applications. The valves are available in different sizes, materials, and configurations to suit the specific needs of different industries.

Why choose us!

  • WESDOM patent products, patent certification

    The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards

    for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

    W
  • The product has an independent identity to ensure traceability

    Each wesdom product has its own unique identification number, to ensure product traceability.

    E
  • Provide material inspection report

    All wesdom products can provide the material inspection report of the main parts.

    S
  • One-stop service

    One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

    D
  • WESDOM has a lot of project experience

    We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

    O
  • WESDOM has a strict quality control system

    WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

    M

Quality Control Process

quality control process



Standard Test

Standard Test



Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.



Detailed parameters

Multi-standard wafer butterfly valve

DN A B C D L0 d0 IS05211 L K E 4-ød n-ø D1 &” HxH
50 161 80 42 52.9 266 12.6 F07 30 90 70 4-ø10 4-ø18 125 90° 9×9
65 175 89 44.7 64.5 266 126 F07 30 90 70 4-ø10 4-ø18 145 90° 9×9
80 181 95 45.2 78.8 266 126 F07 30 90 70 4-ø10 4-ø18 160 45° 11x 11
100 200 114 52 104 266 15.77 F07 30 90 70 4-ø10 4-ø18 180 45° 11×11
125 213 127 54.5 123.3 266 18.92 F07 30 90 70 4-ø10 4-ø18 210 45° 14x 14
150 226 139 55.8 155.1 266 1892 F07 30 90 70 4-ø10 4-ø22 240 45° 14x 14
200 260 175 60.6 2025 355 22.1 F10 40 125 102 4-ø12 4-ø22 295 30° 17×17
250 292 203 65.6 2505 505 28.45 F10 40 125 102 4-012 4-ø26 355 30° 22×22
300 337 242 76.9 301.6 505 31.6 F10 40 140 102 4-ø12 4-ø26 410 30° 22×22

wesdom butterflt valve

Advantages of aluminum handle butterfly valve!

  • Cost-effective

    Aluminum handle butterfly valves are relatively inexpensive compared to other types of valves. This makes them a popular choice for applications

    where cost is a significant factor.

    W
  • Easy to operate

    The simple design of the valve with an aluminum handle makes it easy to operate and control the flow of fluid. The handle can be turned easily,

    allowing precise control of the flow.

    E
  • Lightweight

    The use of aluminum for the handle makes the valve lightweight, making it easier to install and operate.

    S
  • Quick opening and closing

    Butterfly valves can be opened or closed quickly, allowing for rapid flow control.

    D
  • Low maintenance

    Butterfly valves require minimal maintenance, making them a popular choice for applications where maintenance costs need to be kept low.

    O
  • Versatile

    Butterfly valves can be used in a wide range of applications, including water treatment plants, chemical processing facilities, and oil refineries.

    M

wesdom butterfly valve

Project Mame: A valve dealer in Pakistan imports valves as inventory for sale.

Main Products: American standard gate valves, stainless steel check valves, ductile iron soft-sealed gate valves, wafer butterfly valves, exhaust valves and other valves.

This valve distributor from Pakistan described some informations about their company to our sales manager of the international department.They have been engaged in the valve industry for 11 years and are very professional, with a fixed customer base and sales methods. As a middleman, they need to purchase a large number of valves that are sold every day. And China is a big valve producing country, so they intend to cooperate with Chinese valve manufacturers as their own exporter. After some comparisons, the enthusiasm form WESDOM left a deep impression on them. From the initial samples, trial orders to subsequent FCL orders, the cooperation is very smooth and pleasant. This Pakistan distributor said that the cooperation with WESDOM is very pleasant, and the products and services of WESDOM are also very considerate, and will have more cooperation with WESDOM valve in the future.

Project Pictures:
