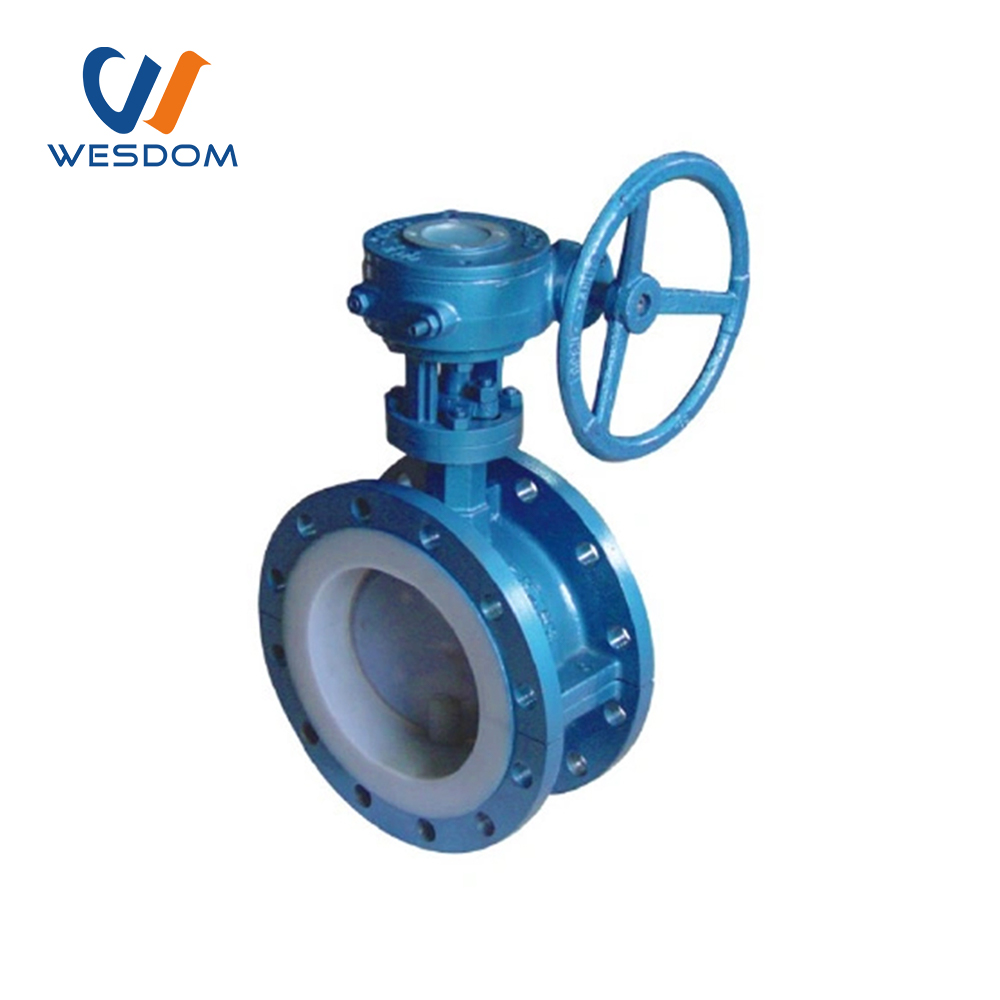

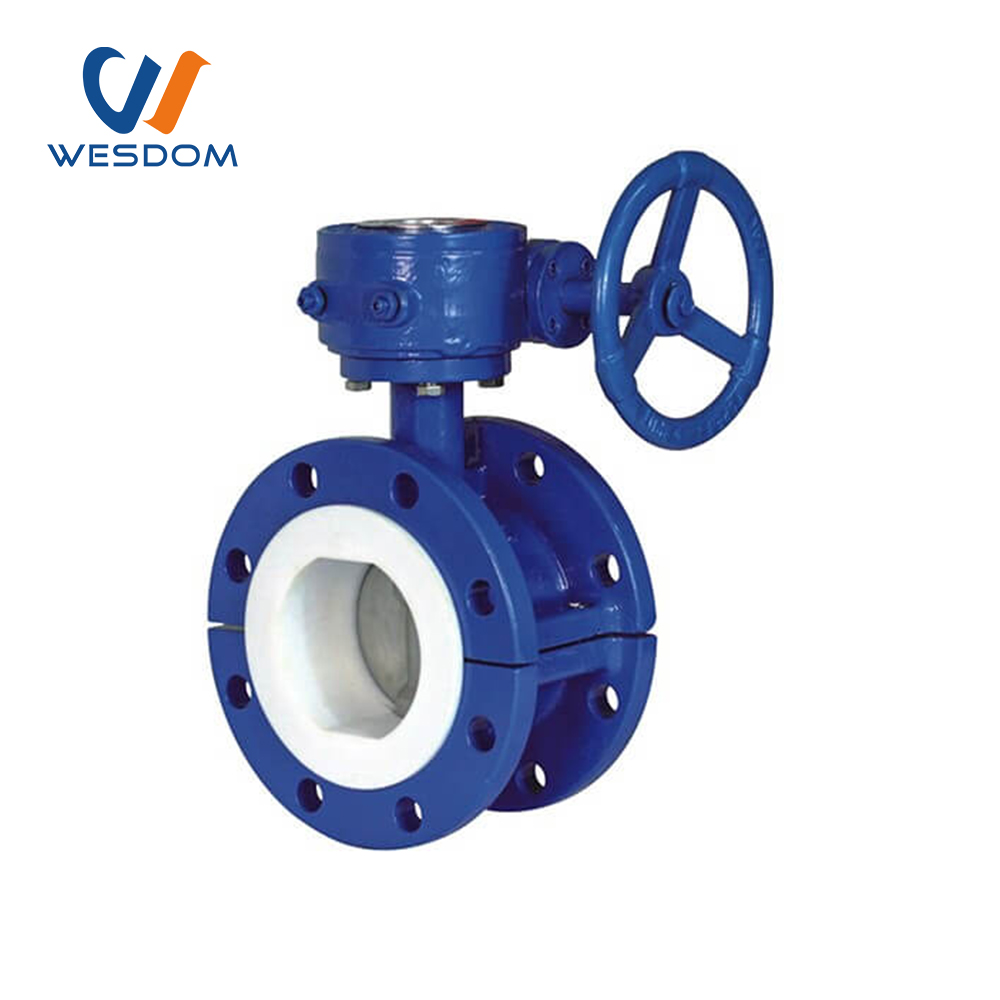

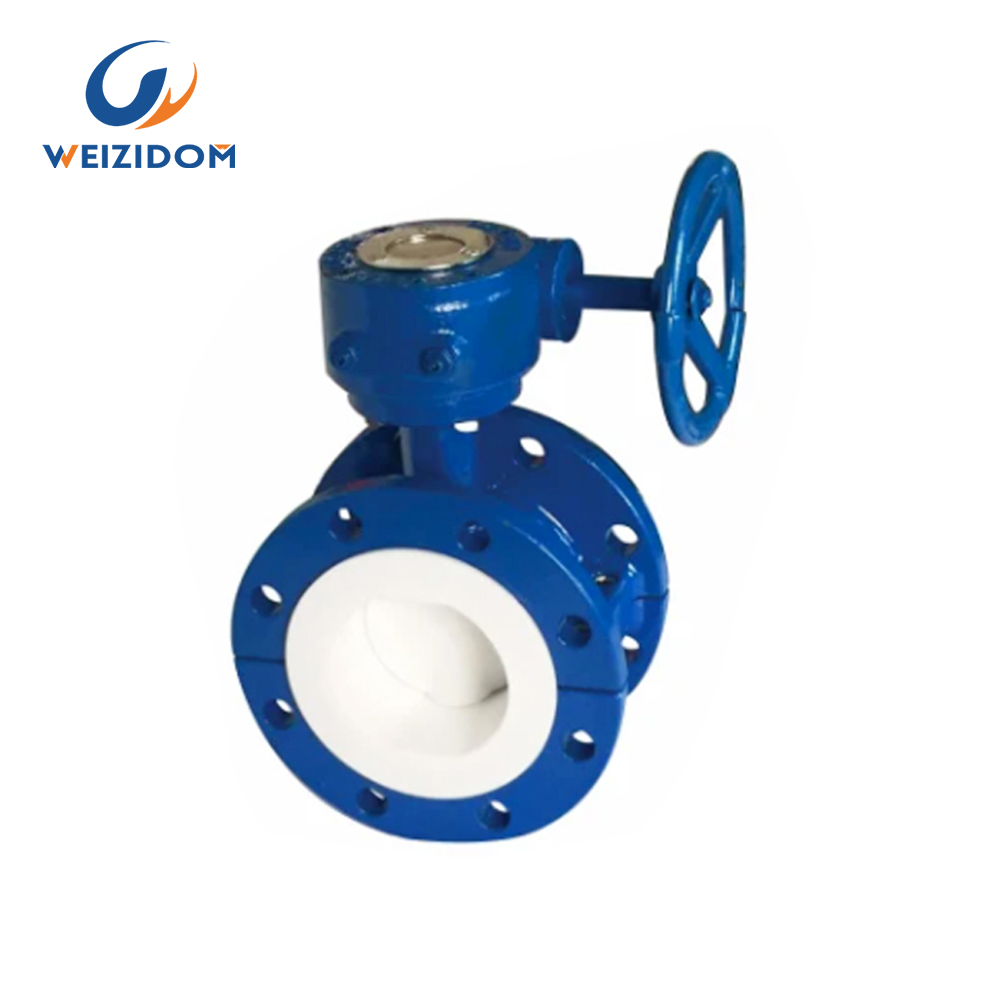

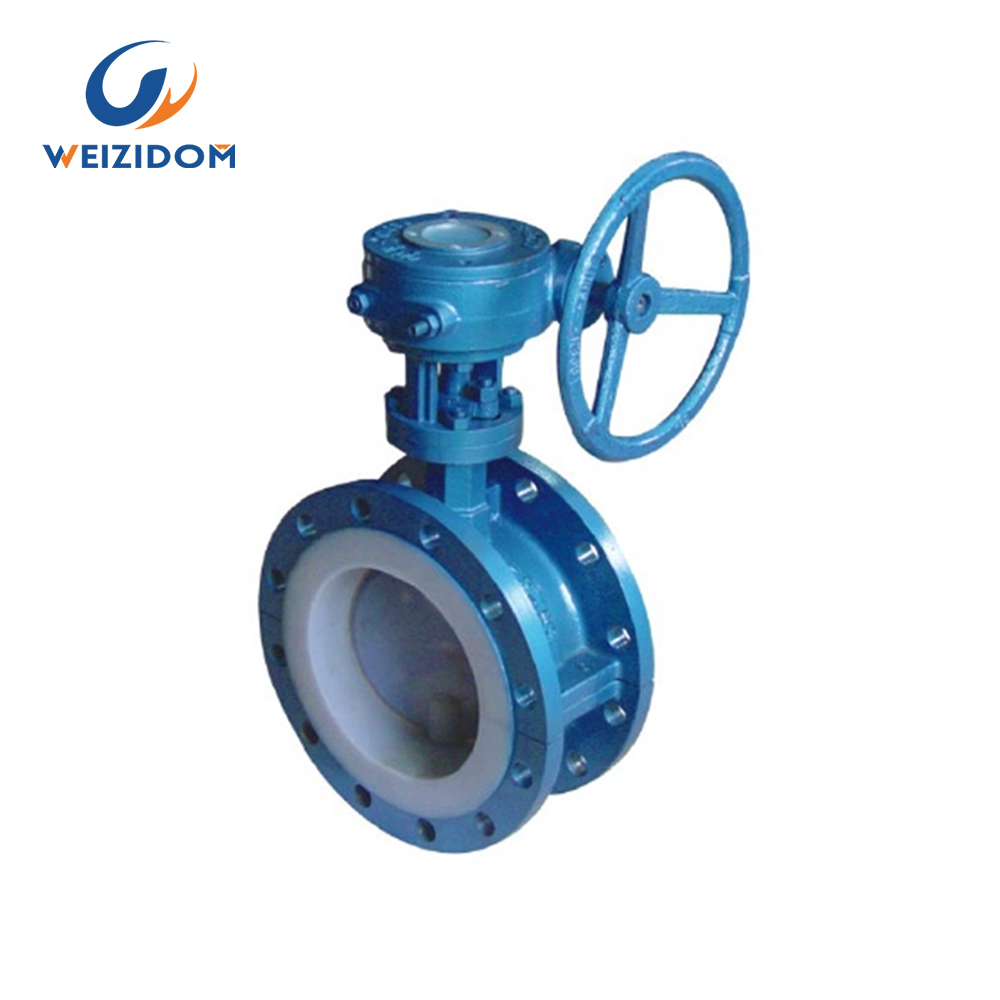

Double flange lined fluorine butterfly valve

Size Range: DN50~DN1200

Pressure: 1.0MPa/1.6MPa

Valve Seat:F4/F46

Design standard:GB/12238

Structure length:GB12221

Worm handle:QT400-15,Ductile cast iron

Product Introduction
WESDOM could provide various butterfly valves which can be widely applied in all many kind of industrial fluids. The sizes from DN25~DN2400 are all available. The standard we can comply DIN, JIS, GB, API 609, etc. CHOOSE WESDOM, CHOOSE QUALITY!
This product mainly consists of body, stem, disc, seat AL-Bronze bushings, etc. The rotation of actuating device makes stem and disc revolved, which ensures on-off operations and flow control. The rotation of the actuating device ensures dependability and position disc control and position disc control and water flow control. Rotate the handle wheel clockwise, the valve is closed.

Why choose us!

  • Our advantage

    We’ve been in the valve industry for more than 25 years. WESDOM GROUP consists of 5 factories and 4 overseas branches. We face the global valve

    service. Its product classification is complete, the commonly used product size is sufficient, and you can buy it with confidence!

    A
  • Our Mission

    To be a high-quality supplier of fluid control systems and plan maker; To contribute our wisdom and strength to the development of the cutting-edge

    technology of fluid control systems.

    M

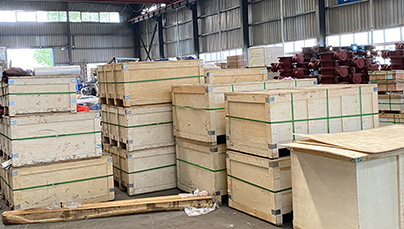

Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

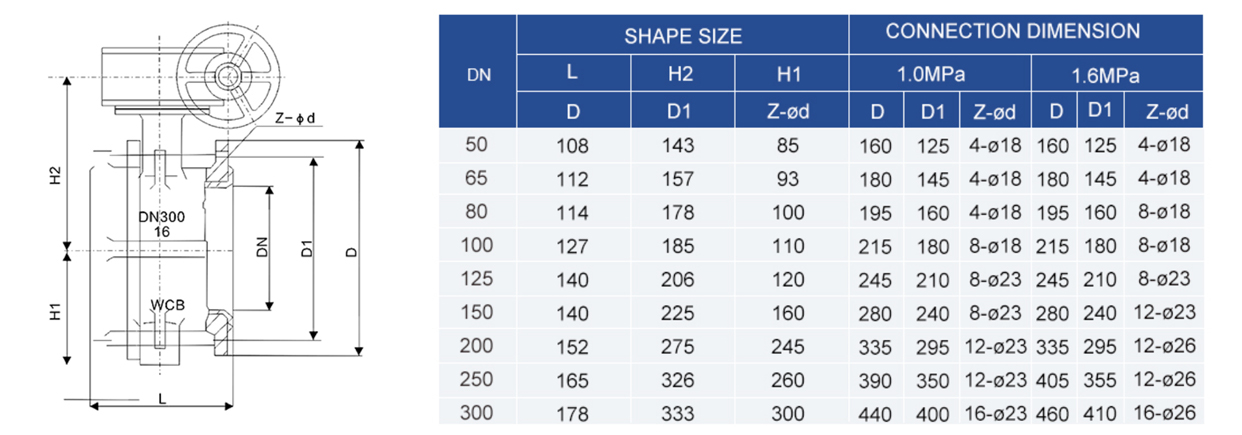

Detailed parameters

wesdom butterfly valve

Flange ductile iron butterfly valve Standard:

Design and Manufacture Conform to EN 593, API609,  JIS

Flange dimensions Conform to EN 1092-2 PN10, PN16, JIS5K, JIS10K,ANSI B16.1,DIN2501,BS4504

Face to Face dimensions Conform to EN558 series

Top Flange dimensions Conform to ISO5211

Testing Conform to API598、EN12266-1



Lug type butterfly valve features:

  • Connection between the shaft and the disc is more secure and robust.
  • Perfect leak tightness with no intersection between the shaft and the gasket.
  • Reduced pressure loss when the valve is open.
  • low height which allows their installation in areaswhere cover depth is minimal.
  • simplicity of network operation thanks to highly reliablegearbox and actuator mechanisms.
  • ability to use it as a safety valve for the network.
  • perfect watertight seal in the closed position.
  • simple design, low maintenance and perfect reliability



Lug type butterfly valve Application:

  • potable water supply pipelines and treatment plants.
  • transportation of filtered and recycled water.
  • irrigation distribution networks.
  • water-pumping stations and hydroelectric plants.
  • nuclear industry, fire safety and storage facilities.



Lug type butterfly valveStandard Test :

Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test:  1.1 times the working pressure with water.

Special Test: On request, any other test can be carried out according to special instruction by client.

wesdom butterfly valve

butterfly valve wesdom

Project Name: Tanzania Water Project

Mains Products: Gate Valves, Butterfly Valves, Check Valves, Pipe Fittings, etc.

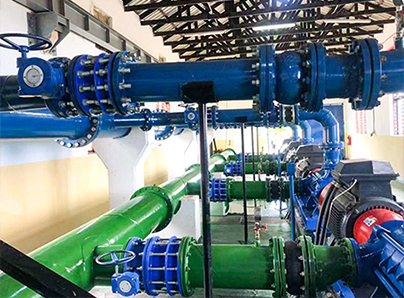

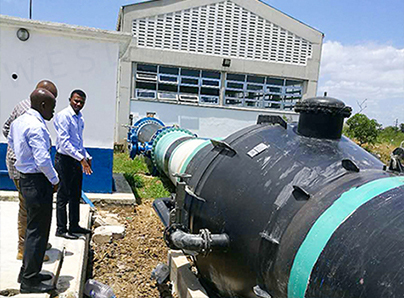

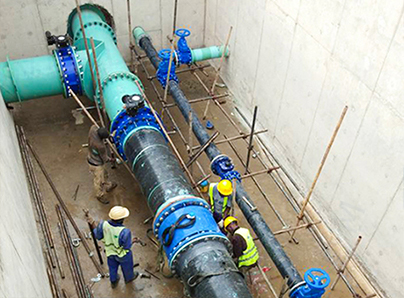

The customer sent us the installation pictures of the WESDOM product in the working condition project, and the feedback quality is very good, and will maintain a long-term cooperative relationship with WESDOM;
