Non rising stem groove Connection resilient gate valve for fire system with UL FM certificates

Product Category: Gate Valve

Diameter: DN50-DN300

Pressure: PN10/PN16

Valve design:EN1171,EN1074,AS2638

Face to Face:EN558-1

End flange:AWWA C606

Product Introduction

Gate valve is one of the most widely used valves in various fluid transportation projects.In traditional gate valves, there are common phenomena such as fluid leakage and serious internal corrosion. Common soft-seal gate valves and stems on the market The shaft seal is easy to leak, and it is impossible to replace the seal ring under the condition of constant water and any opening. WESDOM elastic seat seal gate valve adopts novel structural design, strict manufacturing technology and high-performance new materials, which overcomes the traditional gate seal failure. The internal parts, especially the gate plate, are easy to be corroded and rubber elastic. Suitable for domestic water system, water supply and drainage system, sewage treatment system, chemical fluid transportation system It can be used as a cut-off device on fluid pipelines in construction, urban environmental protection, petrochemical, pharmaceutical, food, metallurgy, textile, power and other industries (not suitable for throttling).

Why choose us!

  • Our advantage

    We’ve been in the valve industry for more than 25 years. WESDOM GROUP consists of 5 factories and 4 overseas branches. We face the global valve

    service. Its product classification is complete, the commonly used product size is sufficient, and you can buy it with confidence!

    A
  • Our Mission

    To be a high-quality supplier of fluid control systems and plan maker; To contribute our wisdom and strength to the development of the cutting-edge

    technology of fluid control systems.

    M

Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang

and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

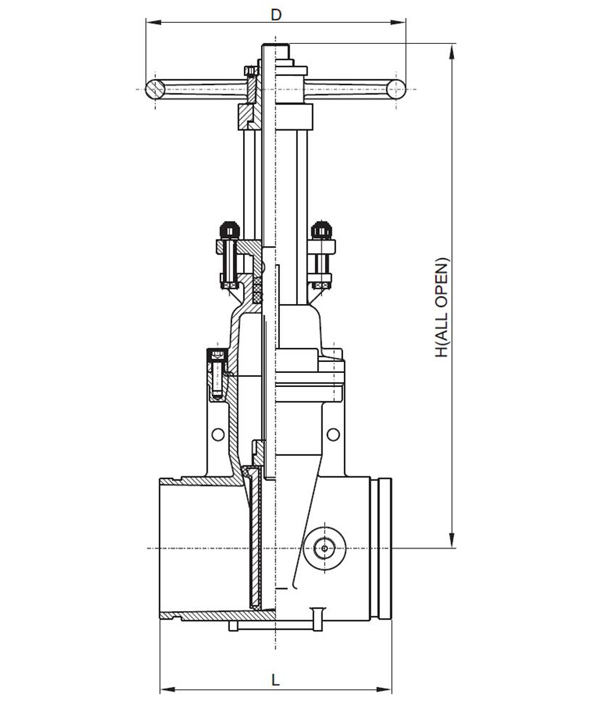

Detailed parameters

WESDOM GATE VALVE

SIZE

Pipe O.D

OD

Groove Dia

Gasket Seat

Groove Width

Groove Depth

IN

DN



ɸA

ɸB

C

D

t

2-1/2″

65

73

73

69.09

15.88

7.95

1.96

3″

80

88.9

88.9

84.94

15.88

7.95

1.98

4″

100

114.3

114.3

110.08

15.88

9.53

2.11

6″

150

168.3

168.3

163.96

15.88

9.53

2.17

8″

200

219.1

219.1

214.4

19.05

11.13

2.35



wesdom gate valve

1.The valve body and bonnet are made of ductile iron with high strength and corrosion resistance.


2.The high-performance rubber completely covers the gate and the gate is completely isolated from the medium without corrosion.



3.The valve body is made of precision casting, and the precise geometric dimensions make the inside of the valve body without

any finishing to ensure the sealing of the valve

wesdom butterfly valve

Project Name: Zimbabwe LPG Project

Main Products: API valves and fittings

Client Feedback:

We received the goods in good condition. They are so nice keep it up.

Project Pictures:







WESDOM GATE VALVE

WESDOM GATE VALVE
