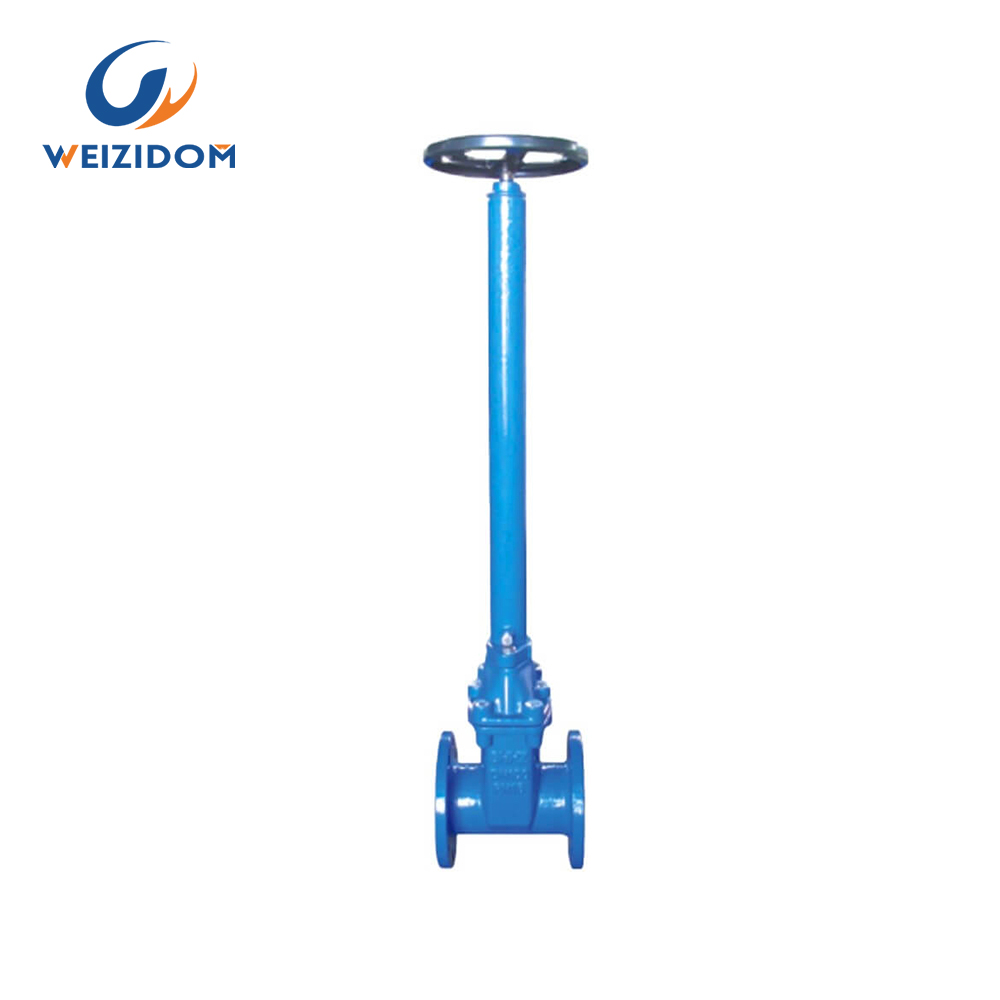

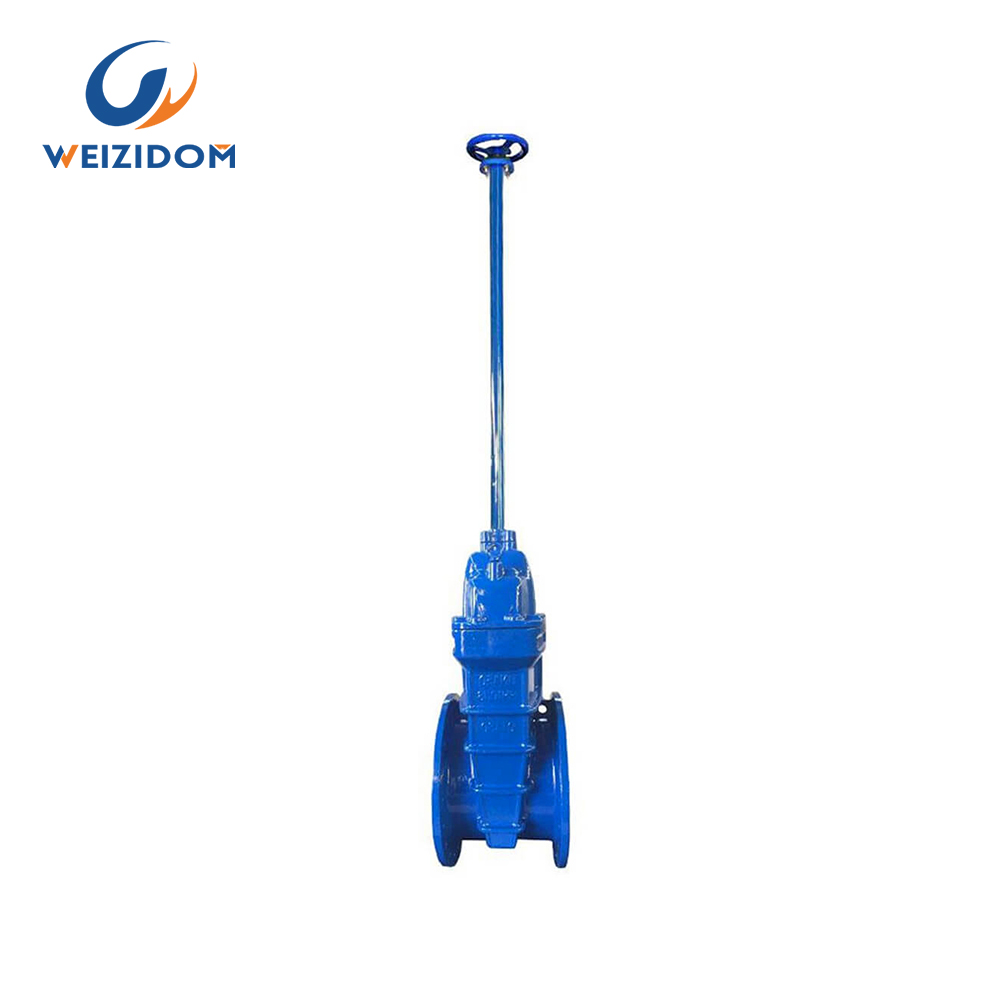

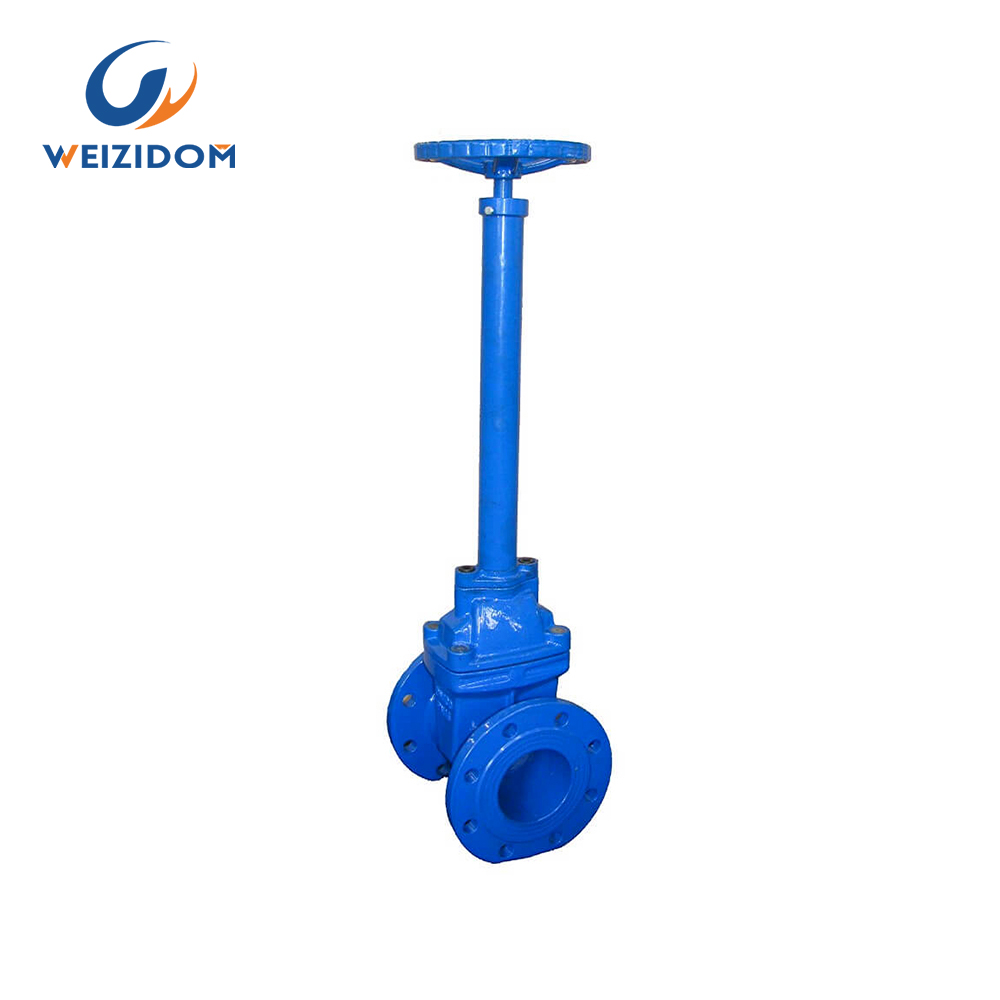

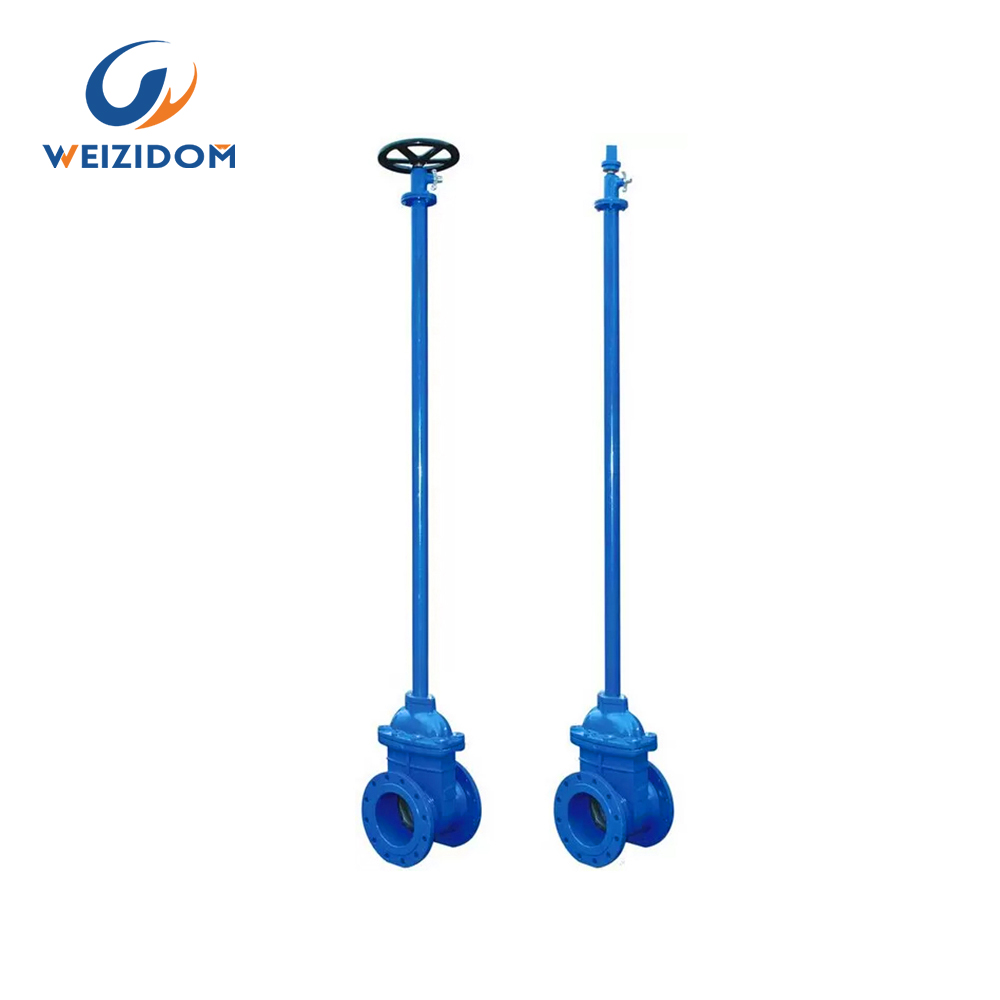

Extension stem soft seal gate valve

Product Category: Gate Valve

Diameter: DN40-300

Pressure: PN10/PN16/PN25

Valve design:BS5163

Face to Face:BS5163

Flange Drilling:EN1092/ISO7005-2

Send E-mail:info@wsdvalve.com Mobile: +86-173197327665


Product Introduction

An extension stem soft seal gate valve is a type of valve that is designed to regulate the flow of fluids in a pipeline. It is called an “extension stem” valve because it has a longer stem than a regular gate valve, which allows it to be installed in deep and hard-to-reach places.

The “soft seal” feature refers to the type of seal used in the valve, which is made of a soft material, such as rubber or plastic, that can conform to the shape of the valve seat, ensuring a tight seal and preventing leaks. This type of gate valve is commonly used in water treatment plants, sewage systems, and other applications where a reliable and durable valve is needed.

The extension stem soft seal gate valve does not need the valve well, which reduces the installation capacity and the embedded depth range can be adjusted. The telescopic rod is manipulated through the ground directly. The ground part and underground part are integrated into one, which can effectively prevent theft. The valve stem can be telescoped according to the depth of the valve well. The top of the stem is provided with a valve switch indicating that the signal remote transmission device can be installed, and the valve’s wrong switch locking device can be installed.

Why choose us!

  • WESDOM patent products, patent certification

    The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards

    for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

    W
  • The product has an independent identity to ensure traceability

    Each wesdom product has its own unique identification number, to ensure product traceability.

    E
  • Provide material inspection report

    All wesdom products can provide the material inspection report of the main parts.

    S
  • One-stop service

    One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

    D
  • WESDOM has a lot of project experience

    We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

    O
  • WESDOM has a strict quality control system

    WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

    M

Quality Control Process

quality control process

Standard Test

test



Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang

and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

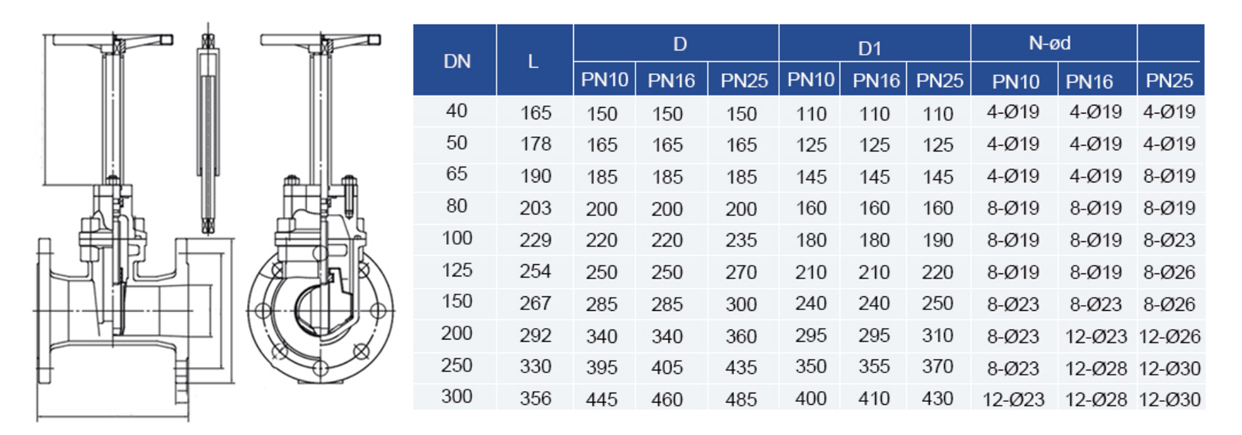

Detailed parameters

Extension stem soft seal gate valve

DN L D D1 N-ød
PN10 PN16 PN25 PN10 PN16 PN25 PN10 PN16 PN25
40 165 150 150 150 110 110 110 4-ø19 4-ø19 4-ø19
50 178 165 165 165 125 125 125 4-ø19 4-ø19 4-ø19
65 190 185 185 185 145 145 145 4-ø19 4-ø19 8-ø19
80 203 200 200 200 160 160 160 8-ø19 8-ø19 8-ø19
100 229 220 220 235 180 180 190 8-ø19 8-ø19 8-ø23
125 254 250 250 270 210 210 220 8-ø19 8-ø19 8-ø26
150 267 285 285 300 240 240 250 8-ø23 8-ø23 8-ø26
200 292 340 340 360 295 295 310 8-ø23 12-ø23 12-ø26
250 330 395 405 435 350 355 370 8-ø23 12-ø28 12-ø3ø
300 356 445 460 485 400 410 430 12-ø23 12-ø28 12-ø3ø



WESDOM GATE VALVE

Advantages of extension stem soft seal gate valve!

  • Durability

    The valve is made of high-quality materials that can withstand extreme temperatures, pressures, and corrosive environments, ensuring long-lasting performance.

    W
  • Tight seal

    The soft seal design of the valve ensures a tight seal, preventing leaks and minimizing the risk of contamination.

    E
  • Easy installation

    The longer stem of the valve makes it easy to install in deep and hard-to-reach places, reducing the need for additional equipment or manpower.

    S
  • Low maintenance

    The valve requires minimal maintenance, as the soft seal design eliminates the need for regular lubrication or tightening.

    D
  • High flow capacity

    The gate valve design of the valve allows for high flow rates and low pressure drops, making it ideal for applications where high flow capacity is required.

    O
  • Cost-effective

    The valve is cost-effective, as it requires minimal maintenance and has a long service life, reducing the need for frequent replacements.

    O



Project Name: Pakistan Sewage Treatment Plant Project

Main Products: Flanged Butterfly Valves and Gate Valves

This case is an old customer from Pakistan. Because he has purchased valve products from WESDOM many times, he has very high trust and evaluation on WESDOM. He needs a lot of butterfly valves and gate valve products in the sewage treatment plant project which he is responsible for. They sent the requirements to the businessman of WESDOM's international trade department without hesitation. Of course, WESDOM still returns this old customer in Pakistan with high-quality products and preferential prices;

After that, the customer also sent us the installation pictures of the WESDOM product in the working condition project, and feedback that the quality is still very good, and will maintain a long-term cooperative relationship with WESDOM;

Project Pictures:







wesdom butterfly valve

WESDOM GATE VALVE
