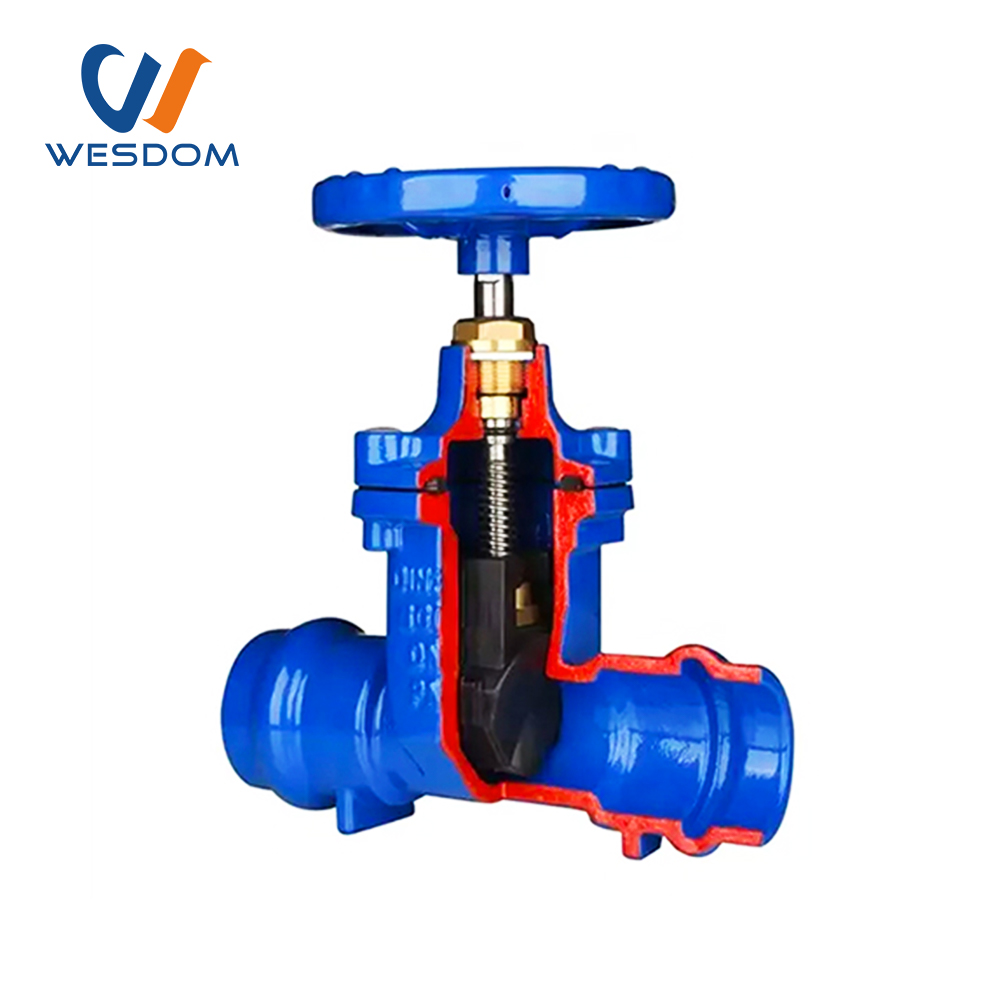

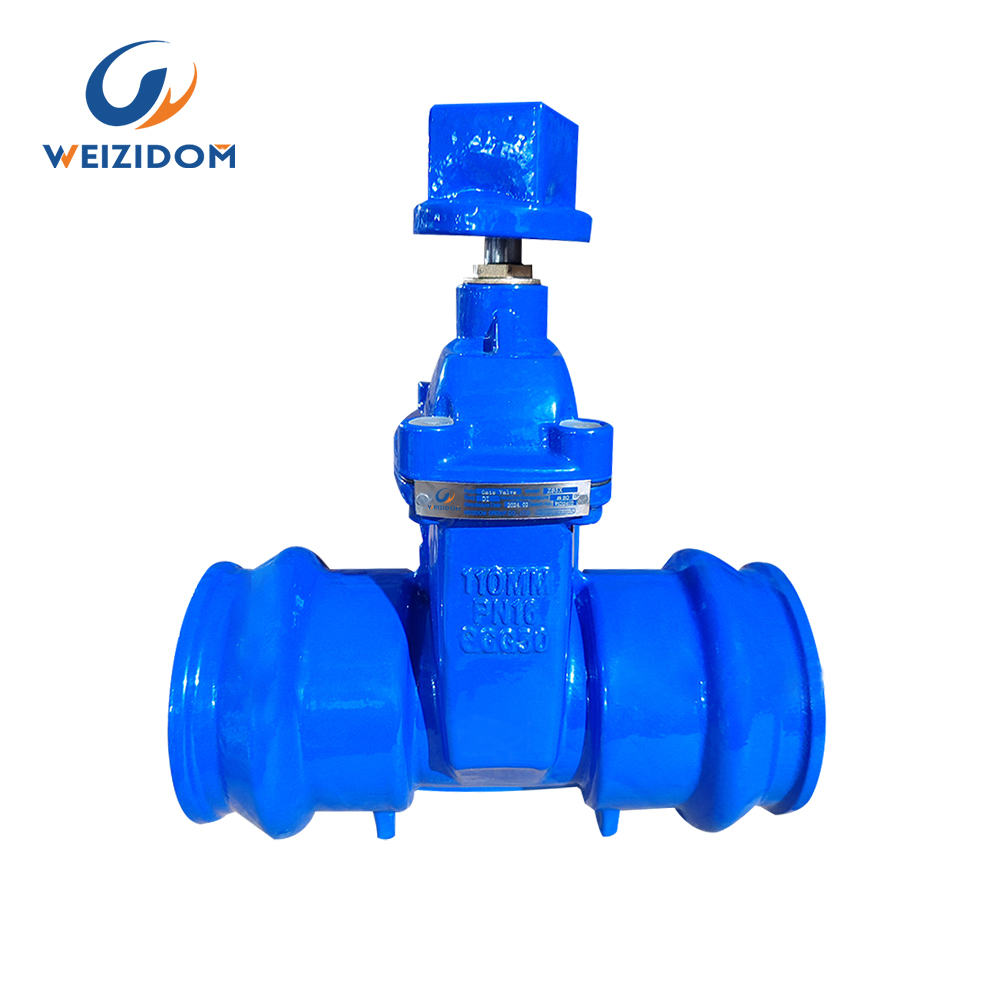

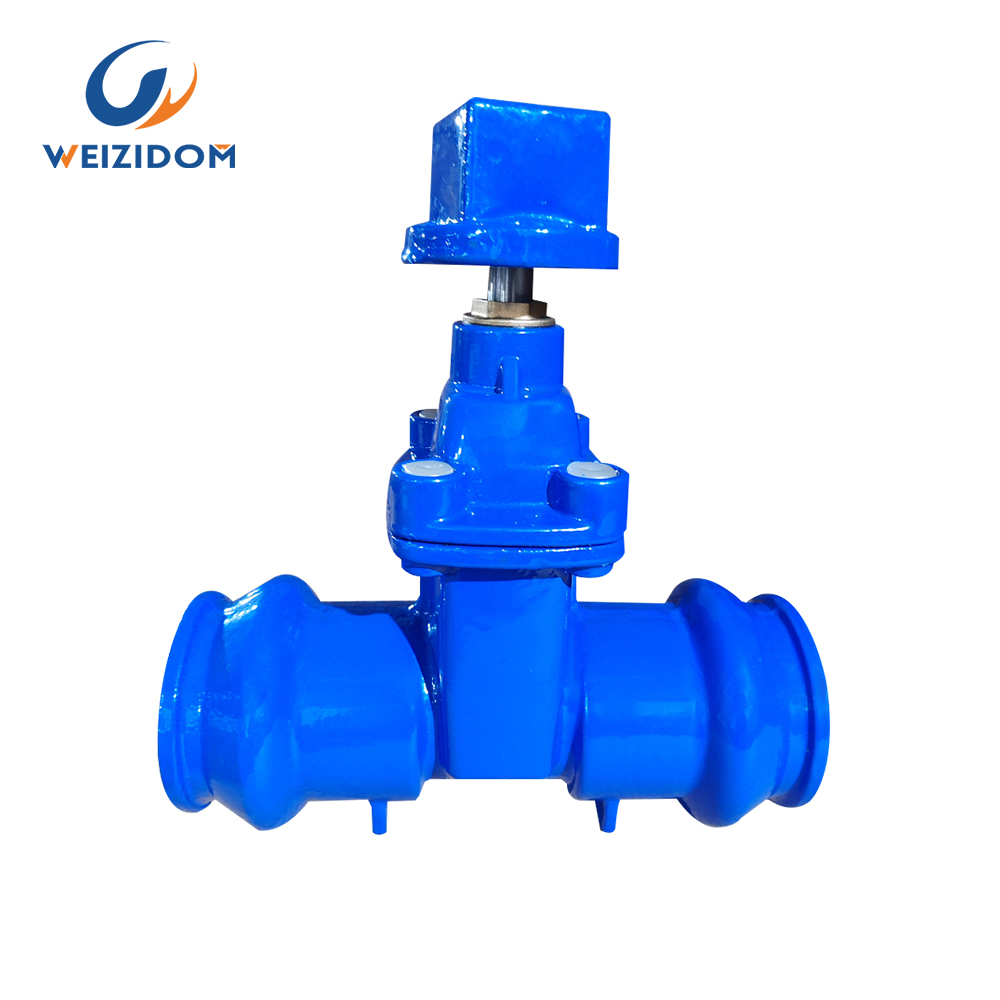

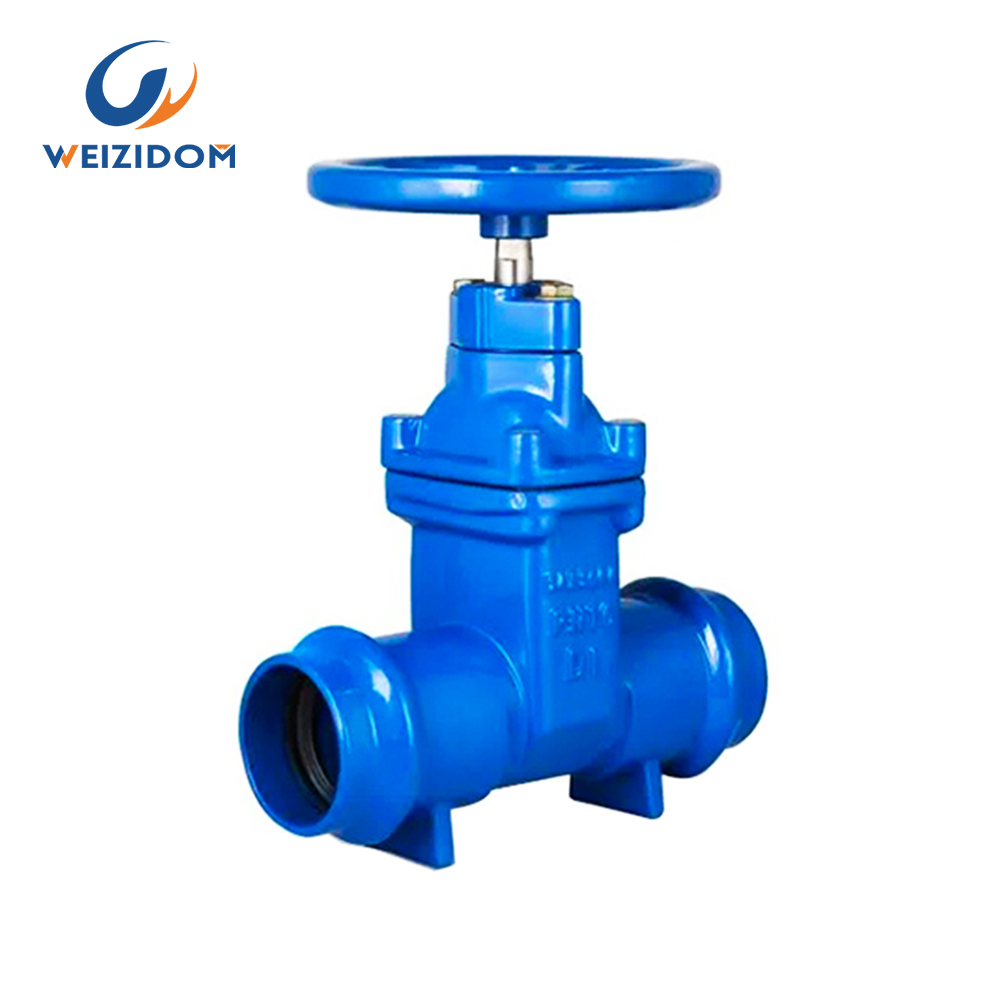

DIN F5 Socket connection soft seal gate valve

Diameter: DN50-300

Work Temperature: NBR<80℃

                                EPDM<120℃

Medium: Water, gas etc.

Test standard:DIN3230orJB/9092

Design:standard:DIN3352 Part5

Product Introduction

Gate valve is one of the most widely used valves in various fluid transportation projects.In traditional gate valves, there are common phenomena such as fluid leakage and serious internal corrosion. Common soft-seal gate valves and stems on the market The shaft seal is easy to leak, and it is impossible to replace the seal ring under the condition of constant water and any opening. WESDOM elastic seat seal gate valve adopts novel structural design, strict manufacturing technology and high-performance new materials, which overcomes the traditional gate seal failure. The internal parts, especially the gate plate, are easy to be corroded and rubber elastic. Suitable for domestic water system, water supply and drainage system, sewage treatment system, chemical fluid transportation system It can be used as a cut-off device on fluid pipelines in construction, urban environmental protection, petrochemical, pharmaceutical, food, metallurgy, textile, power and other industries (not suitable for throttling).

Why choose us!

  • Our advantage

    We’ve been in the valve industry for more than 25 years. WESDOM GROUP consists of 5 factories and 4 overseas branches. We face the global valve

    service. Its product classification is complete, the commonly used product size is sufficient, and you can buy it with confidence!

    A
  • Our Mission

    To be a high-quality supplier of fluid control systems and plan maker; To contribute our wisdom and strength to the development of the cutting-edge

    technology of fluid control systems.

    M

Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang

and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

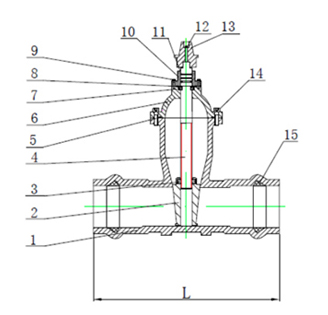

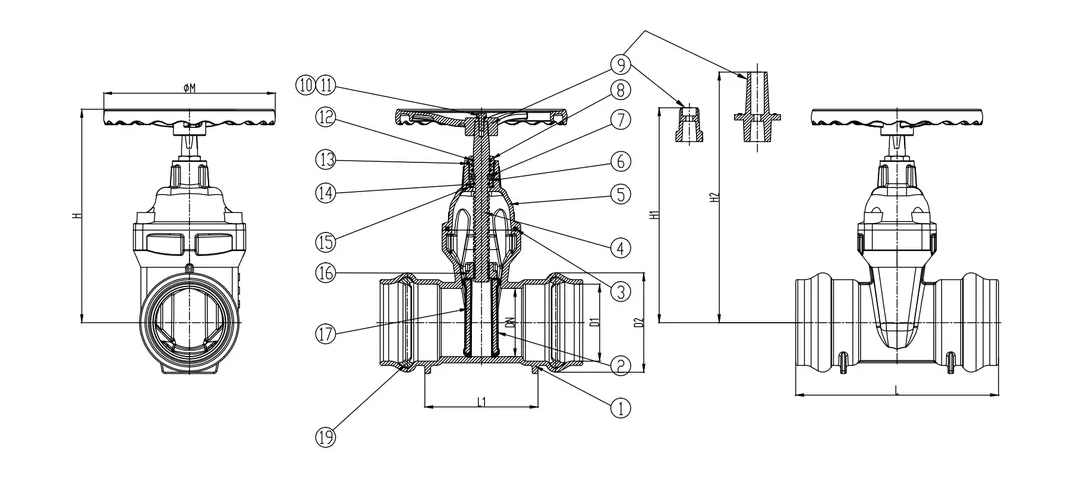

Detailed parameters

Material

Ductile iron

Design

DIN 3352/SABS 664

Bonnet Gasket

EPDM

Body

Ductile Iron

Flange

DIN EN 1092-2

Wedge

Ductile Iron + EPDM (or NBR)

O-ring seal

EPDM

Bonnet

Ductile Iron

Face to face

DIN 3302 F5/SABS664

Thrust Collar

Brass

Pressure

PN16/PN10

Working temperature

-10° C to +70° C

Size

DN50 – DN300

Operation

Hand wheel



wesdom butterfly valve



1.Three independent stem seals offering triple safety.


2.Valves could be operated by hand head capworm gear/electric actuator etc. according to the customers requirements.

butterfly valve wesdom

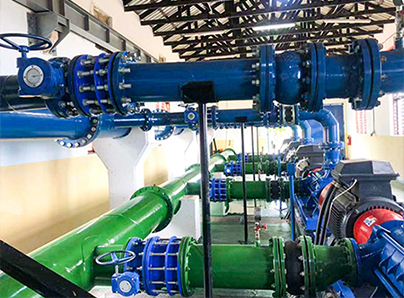

Project Name: Tanzania Water Project

Main Products: Gate Valves, Butterfly Valves, Check Valves, Pipe Fittings, etc.

Client Feedback:

The customer sent us the installation pictures of the WESDOM product in the working condition project, and the feedback quality is very good, and will maintain a long-term cooperative relationship with WESDOM;

Project Pictures:







wesdom gate valve

WESDOM GATE VALVE
