grooved butterfly valve
grooved butterfly valve

Grooved butterfly valve

Size Range: 2~12"

Body Materials: Ductile Iron

Seat Materials: NBR,EPDM

Stem Materials: SS416,304

End Connection: Grooved

Face to Face:KSB2822,MSS SP67

Send E-mail:info@wsdvalve.com Mobile: +86-173197327665

Product Introduction

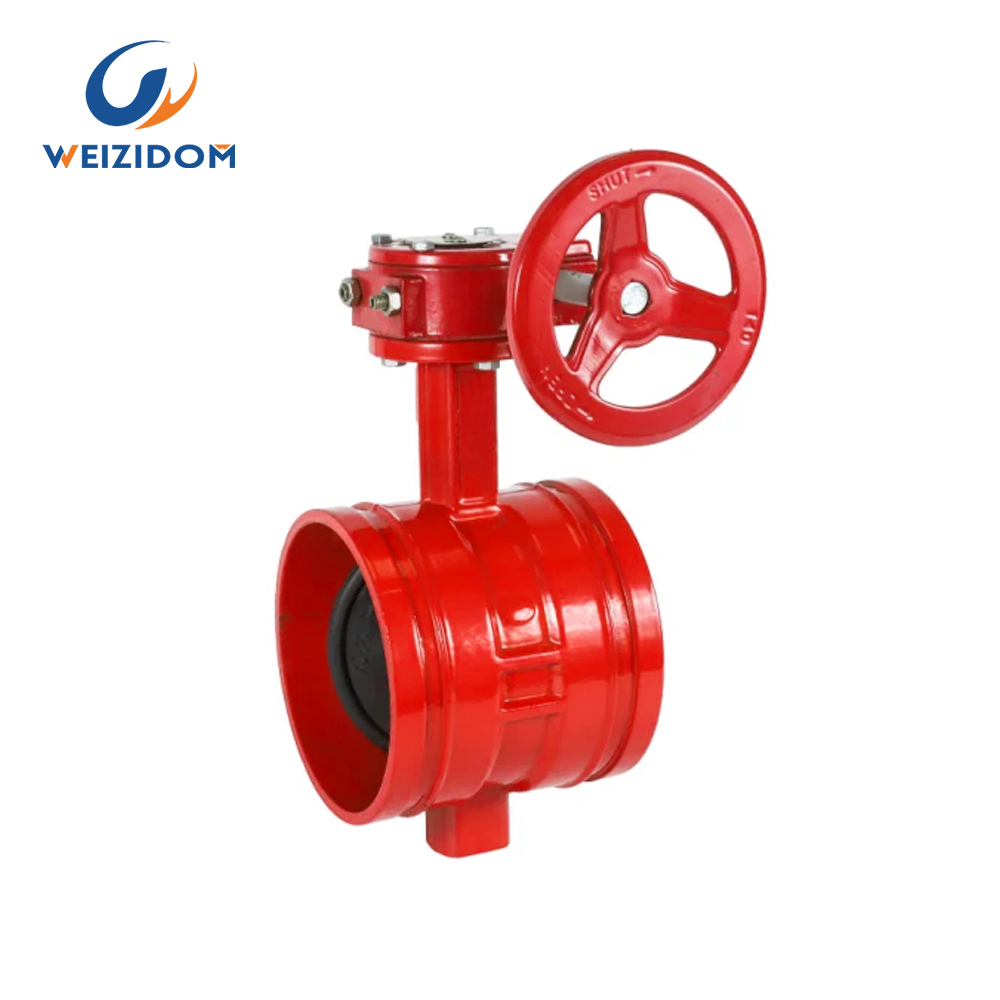

The grooved butterfly valve is driven by worm-gear and stem. Then the cam rotates according to the predetermined position of the signal device on the contact down or release. The corresponding output “on” and “off” electrical signal shows the opening and closing state of the butterfly valve. The grooved butterfly valve is divided into two types: handle grooved butterfly valve and worm-gear grooved butterfly valve.

Why choose us!

  • WESDOM patent products, patent certification

    The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards

    for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

    W
  • The product has an independent identity to ensure traceability

    Each wesdom product has its own unique identification number, to ensure product traceability.

    E
  • Provide material inspection report

    All wesdom products can provide the material inspection report of the main parts.

    S
  • One-stop service

    One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

    D
  • WESDOM has a lot of project experience

    We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

    O
  • WESDOM has a strict quality control system

    WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

    M

Quality Control Process

quality control process

Standard Test

test



Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

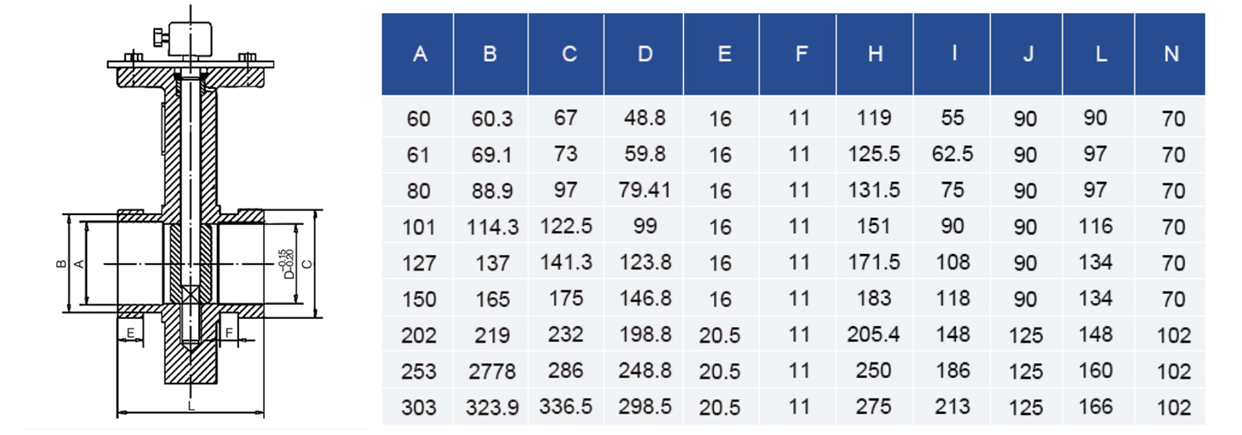

Detailed parameters

grooved butterfly valve



SIZE

A

B

C

D

E

F

H

I

J

L

N

O

P

K

2″

50

60.3

67

48.8

16

11

119

55

90

90

70

9

12

26

2.5″

61

69.1

73

59.8

16

11

125.5

62.5

90

97

70

9

12

26

3″

80

88.9

97

79.1

16

11

131.5

75

90

97

70

9

12

26

4″

101

114.3

122.5

99

16

11

151

90

90

116

70

9

14

30

5″

127

137

141.3

123.8

16

11

171.5

108

90

134

70

9

14

30

6″

150

165

175

146.8

16

11

183

118

90

134

70

9

14

30

8″

202

219

232

198.8

20.5

11

205.4

148

125

148

102

11

18

41

10″

253

278

286

248.8

20.5

11

250

186

125

160

102

11

18

41

12″

303

323.9

336.5

298.5

20.5

11

275

213

125

166

102

11

18

41



Advantages of grooved butterfly valve!

  • Fast

    Adopt groove clamp contact and corresponding pipe fitting placement pipeline, no need to weld and secondary placement, improve the placement rate.

    W
  • Light

    Clamp contact light weight, fewer bolts, convenient placement.

    E
  • Reliable

    C type rubber sealing ring, realize triple sealing, ensure the reliability of connected sealing.

    S
  • Strong security

    With the groove clamp contact and corresponding pipe fitting placement. It only needs to be mechanically assembled, no welding, no bright fire. Therefore, there is no welding slag and no turbified pipeline, can ensure the safety of the site. It is suitable for fire prohibition conditions.

    D
  • Convenient installation

    Due to the fast resettlement and the low repairs of resettlement, the comprehensive placement cost can be reduced by 30-50% compared with the flange.

    O
  • Small occupation space

    The groove clamp connection occupies about 70% of the space of the flange, and because the number of fastening bolts is small, it is especially suitable for the construction under the condition of narrow practical space.

    M

wesdom butterfly valve

Project Name: Tanzania Water Project

Main Products: Gate Valves, Butterfly Valves, Check Valves, Pipe Fittings, etc.

The customer sent us the installation pictures of the WESDOM product in the working condition project, and the feedback quality is very good, and will maintain a long-term cooperative relationship with WESDOM;

Project Pictures:





wesdom butterfly valve

wesdom butterfly valve
