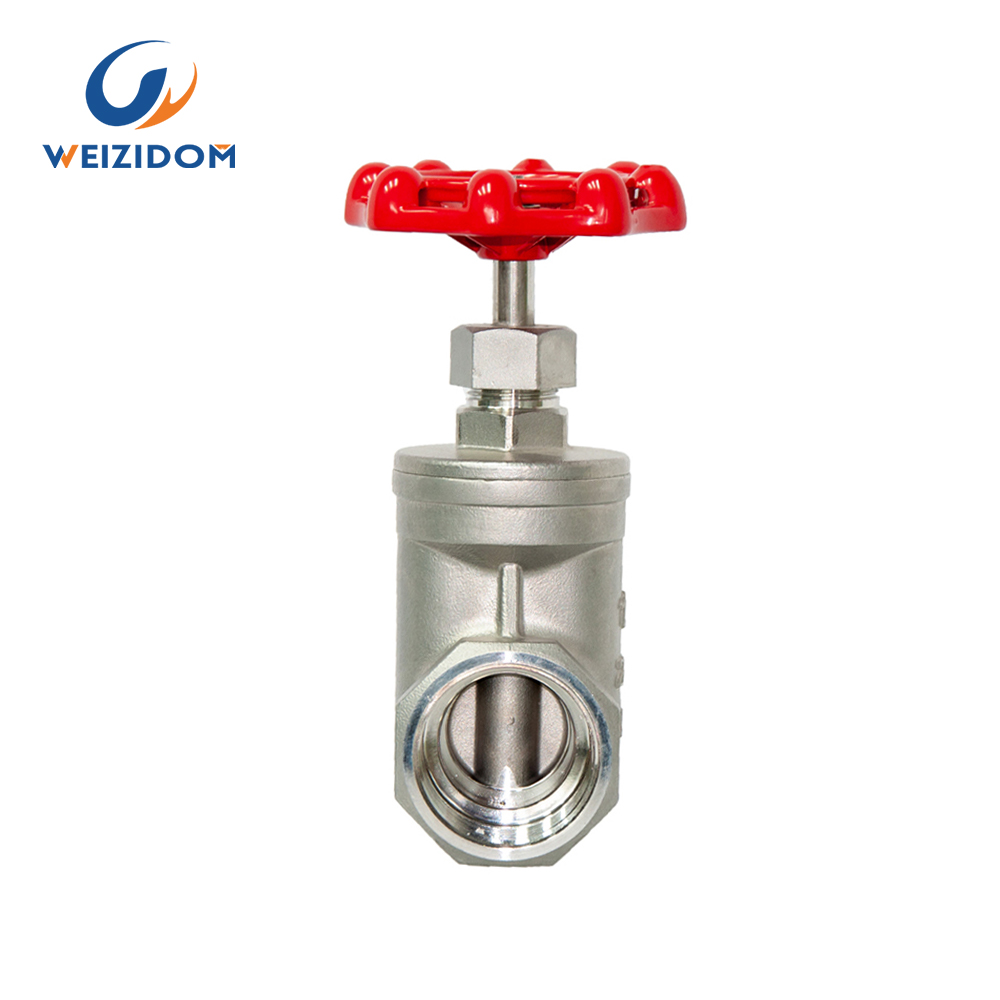

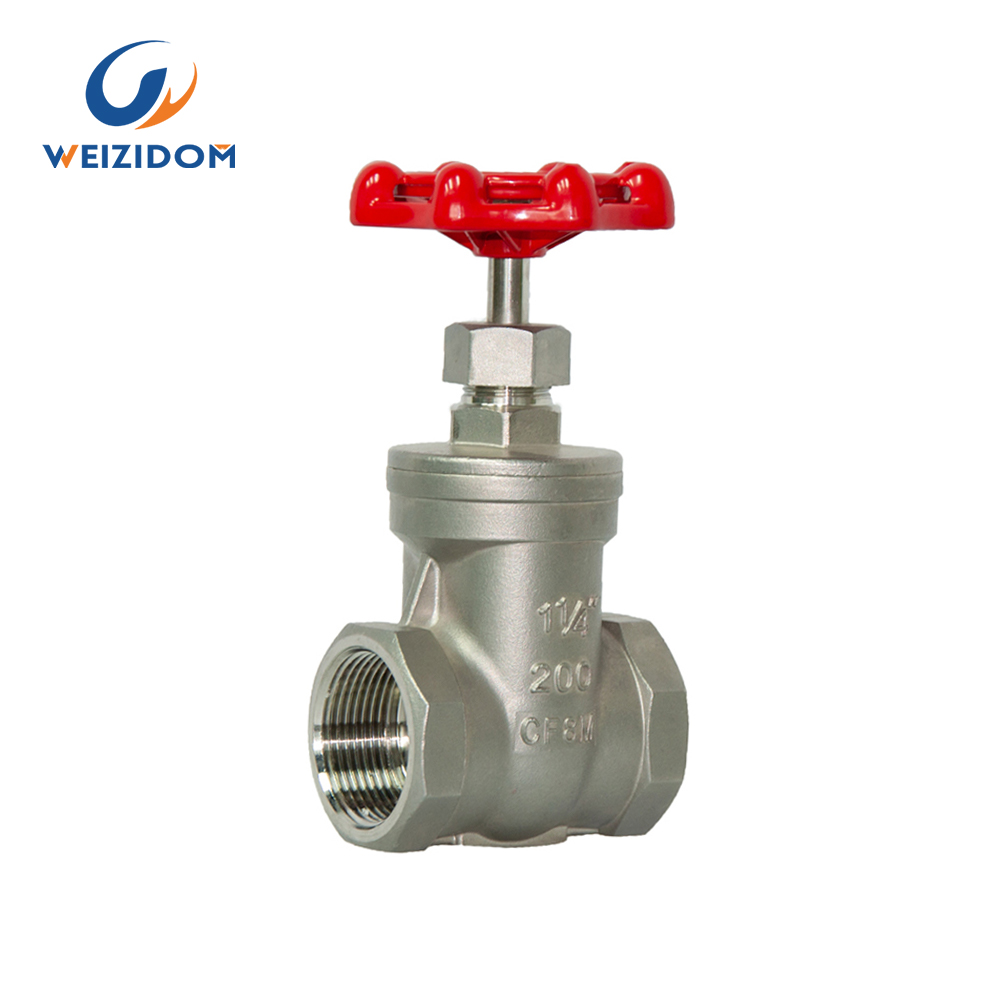

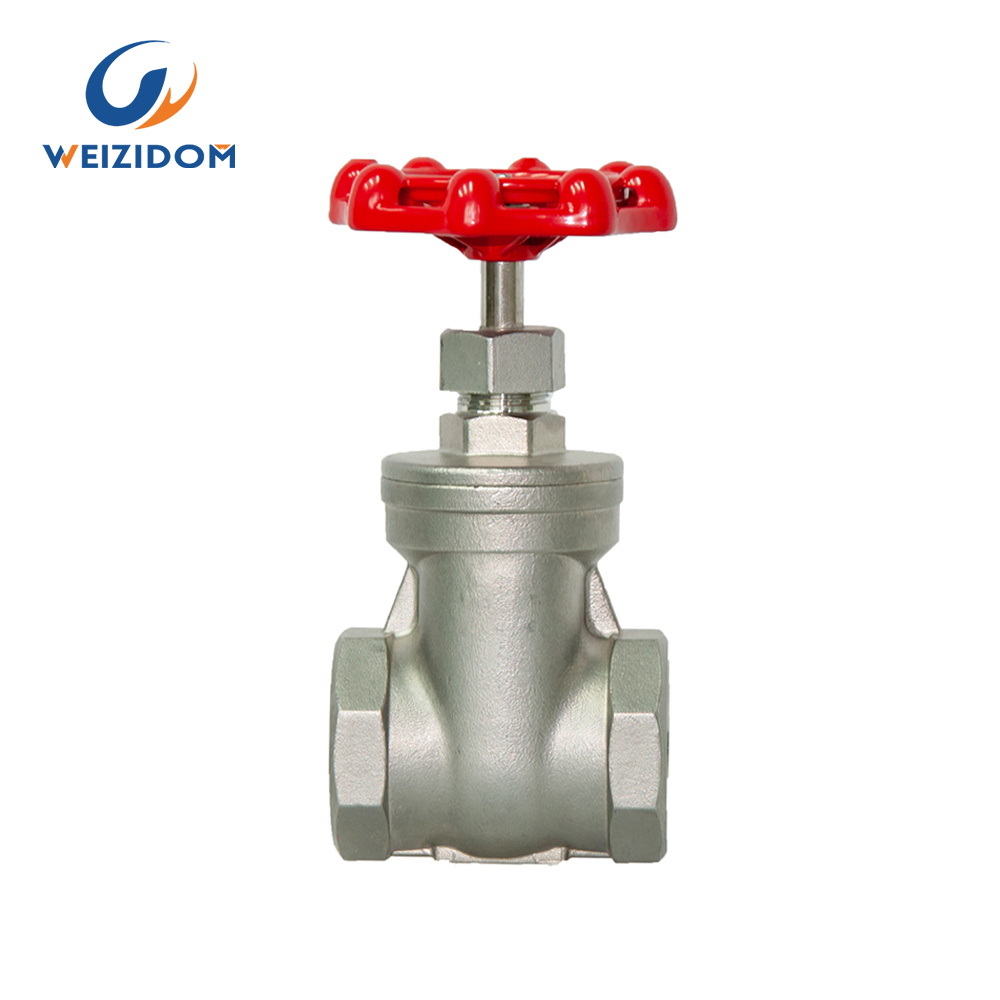

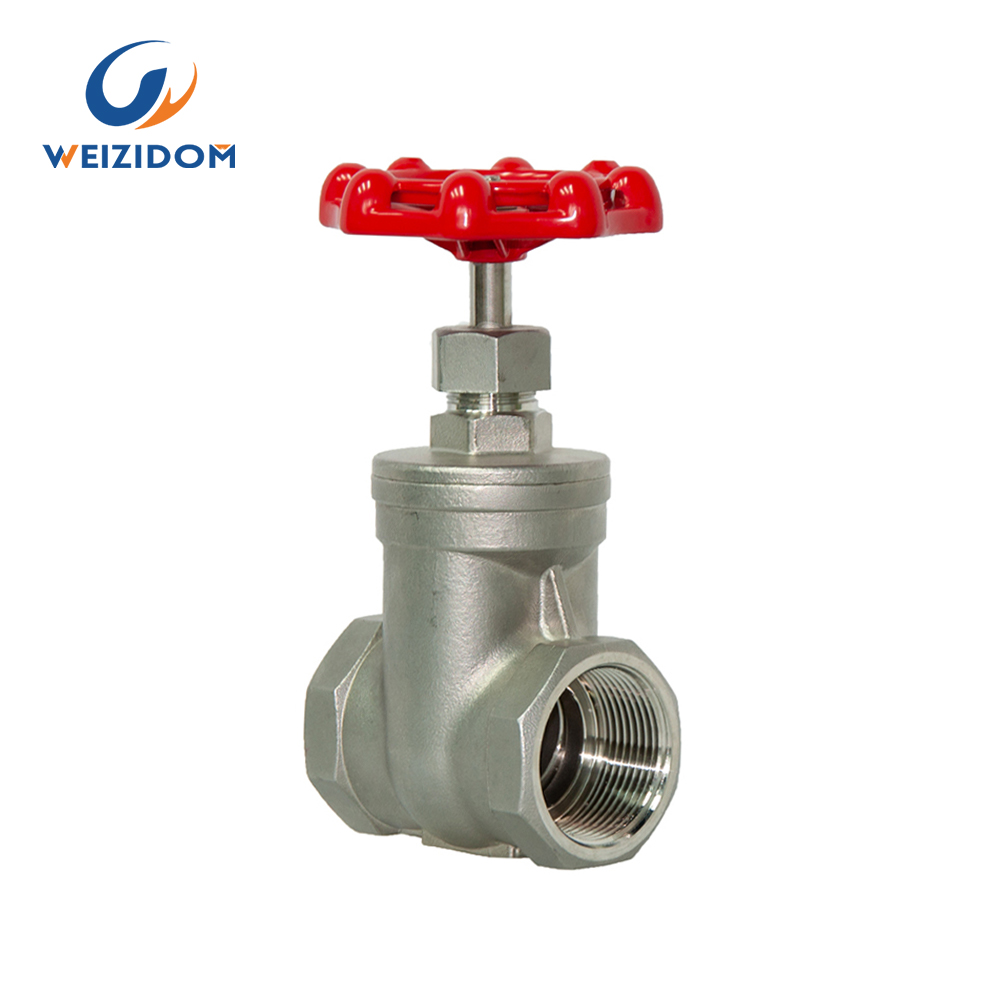

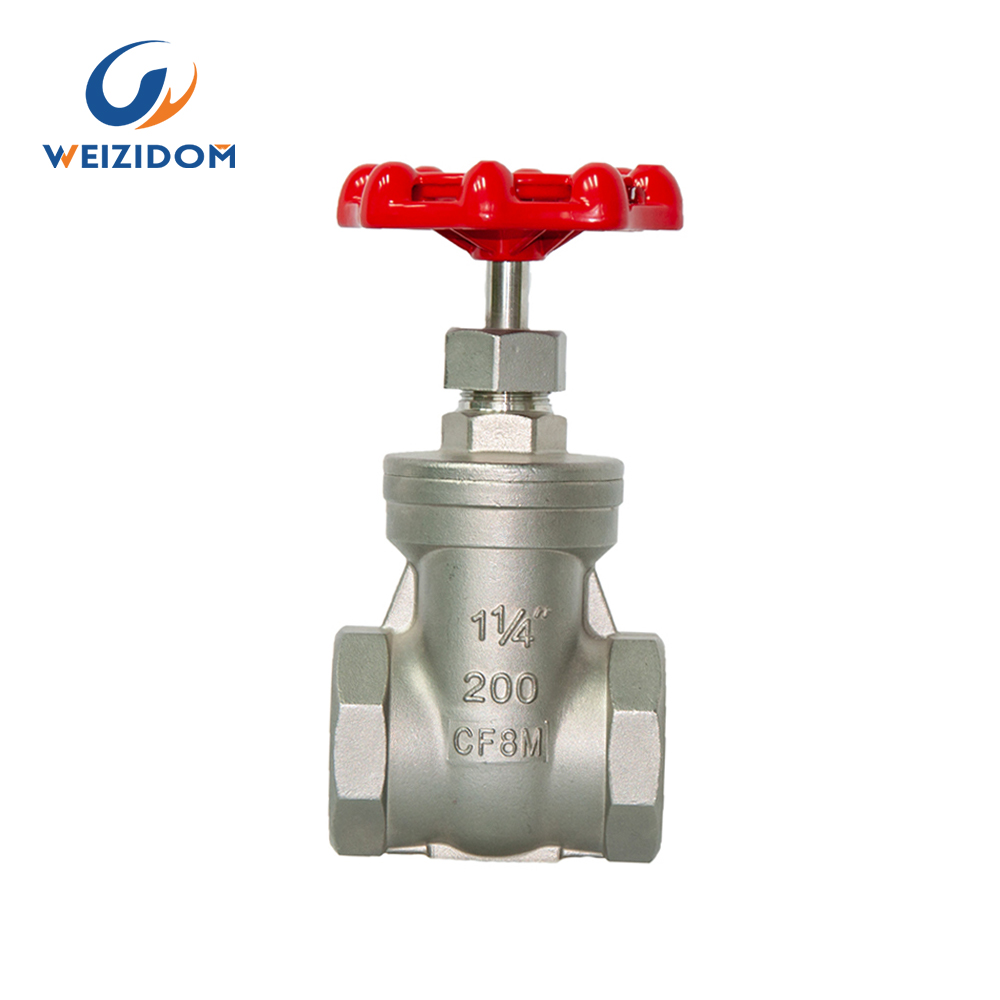

Stainless Steel Threaded Gate Valve

Size:1/2”~3”

Inspection Standard:GB/T13927,EN12266

Application medium:Water, oil, gas

Application Temperature:0-300℃

Pressure Rating:PN10,PN16

Material:Carbon steel, stainless steel

Product Introduction

Stainless steel manual internal thread gate valve, also called the cut-off gate, is the most widely used kind of valve, belongs to the forced sealing type valve, its closing principle is, relying on the pressure of valve bar, https://www.wsd-valve.com/product/Gate-Valve so that the sealing surface of the valve flap and the sealing surface of the valve seat closely fit together, stopping the flow of media. It is divided into several types according to different ways. The internal thread gate valve has a simple structure, good sealing life, fluid resistance, poor adjustment performance, etc.

Why choose us!

  • Our advantage

    We’ve been in the valve industry for more than 25 years. WESDOM GROUP consists of 5 factories and 4 overseas branches. We face the global valve

    service. Its product classification is complete, the commonly used product size is sufficient, and you can buy it with confidence!

    A
  • Our Mission

    To be a high-quality supplier of fluid control systems and plan maker; To contribute our wisdom and strength to the development of the cutting-edge

    technology of fluid control systems.

    M

Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang

and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.



Detailed parameters

Stainless Steel Threaded Gate Valve

No

Part Name

Qty

Material

1

Body

1

316 Stainless Steel

2

Core

1

316 Stainless Steel

3

Bonnet

1

316 Stainless Steel

4

Pocking

1

PTEE

5

Gland Nut

1

304 Stainless Steel

6

Hand Wheel

1

Aluminum

7

Name Plate

1

Aluminum

8

Nut

1

304 Stainless Steel

9

Stem

1

316 Stainless Steel

10

Metal Padding

1

304 Stainless Steel

11

Washer

1

316 Stainless Steel

12

Seal

1

PTEE


DN

NB

Inner diameter of thread(mm)

Outside diameter of thread(mm)

DN15

1/2

19

20

DN20

3/4

24

25.5

DN25

1

30

32

DN32

1 1/4

39

40.5

DN40

1 1/2

44

46

DN50

2

56.5

58

DN65

2 1/2

72.5

74

DN80

3

84.5

86

DN100

4

110

112
