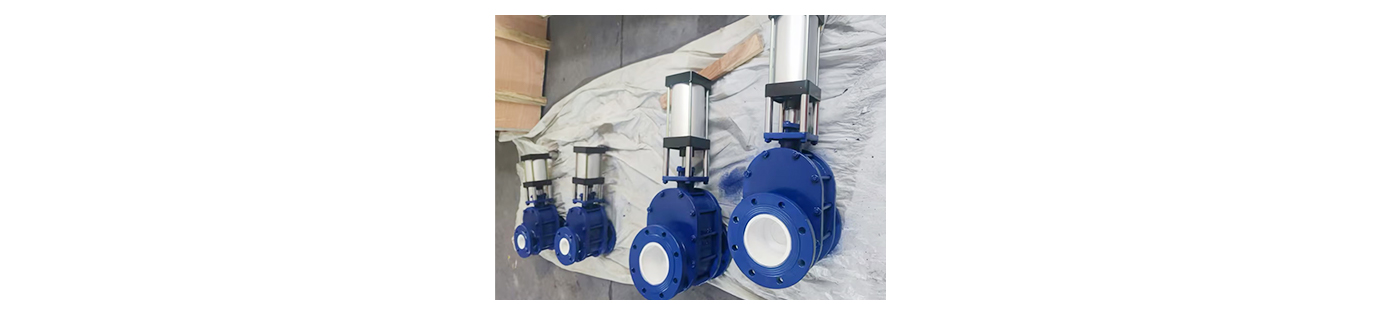

A Double Disc Gate Valve is a type of parallel slide gate valve distinguished by its two independent, spring-loaded, flat-faced discs (gates) positioned parallel to each other. Unlike a single solid wedge, these discs move simultaneously within the valve body when the stem is rotated or lifted. Key springs (located between the discs or within the disc assembly) constantly push the discs outward against the seating surfaces located on both sides of the valve body. This unique design ensures positive sealing force is maintained against the seats, regardless of pressure direction or thermal fluctuations.
|
Feature |
Double Disc Gate Valve (DDGV) |
Standard Solid Wedge Gate Valve |
|
Core Design |
Two parallel, spring-loaded flat discs |
Single solid wedge (tapered or flexible) |
|
Sealing Mechanism |
Springs force discs outward against body seats |
Wedge is forced downward/inward into seats |
|
Thermal Behavior |
Superior. Discs move independently; springs compensate for expansion/contraction. Minimal risk of thermal binding. |
Vulnerable. Thermal cycling can cause wedge expansion/contraction, leading to jamming (binding) in open/closed position. |
|
Operating Torque |
Lower & Consistent. Primarily needs to overcome stem packing & disc/seat friction. Lower initial torque, consistent opening/closing force. |
Higher & Peaky. Requires high initial torque to overcome wedge/seat friction (“breakout torque”), especially after thermal cycling or in dirty service. |
|
Seat Contact |
Flat face-to-flat face contact. Springs ensure constant loading. |
Line contact evolving to face contact under load. |
|
Pressure Direction |
Typically designed for unidirectional flow (pressure under the discs). Some specialized bidirectional designs exist. |
Generally bidirectional, but sealing efficiency may vary. |
|
Wear & Seat Damage |
Reduced risk due to parallel movement and spring compensation. Discs can “float”. |
Higher risk of scoring/galling on seats during operation, especially if misaligned. |
|
Leakage Class |
Typically achieves API 598 Class IV/V/VI or better, often suitable for ISO 5208 Rate A. |
Usually achieves API 598 Class II/III, rarely higher without special seats. |
|
Ideal Service |
High temp, high pressure, thermal cycling, critical shutoff, clean/gas services. |
General purpose, lower pressure/temp, less critical applications, some slurry (depending on design). |
|
Cost |
Generally Higher due to more complex design & components. |
Generally Lower. |
Eliminates Thermal Binding/Jamming:
Independent discs and springs allow free movement despite extreme temperature changes (common in steam, heat transfer fluids), preventing the valve from becoming stuck open or closed.
Lower and More Consistent Operating Torque:
Requires significantly less force to operate compared to wedge valves, especially noticeable during initial opening (“breakout”). Reduces strain on actuators and operators.
Superior Sealing Performance:
Achieves very low leakage rates (often meeting API 598 Class IV, V, or VI and ISO 5208 Rate A standards) due to the positive spring force ensuring constant disc-to-seat contact. Ideal for critical isolation.
Reduced Seat and Disc Wear:
The parallel sliding motion and spring loading minimize galling and scoring of seating surfaces compared to the wedging action, enhancing valve life.
Excellent for High-Pressure Applications:
The robust design and positive sealing mechanism make DDGVs highly reliable under high pressures.
Minimal Pressure Drop When Open:
Like all gate valves, provides a full port and straight-through flow path when fully open, minimizing turbulence and pressure loss.
Distinctive Features:
Parallel, Spring-Loaded Discs: The defining characteristic enabling thermal compensation and low torque.
Rigid or Flexible Disc Design: Some designs use rigid discs relying solely on springs; others incorporate slight flexibility within the disc assembly for enhanced seating.
Unidirectional Seating:
Most DDGVs are designed for pressure to be applied under the discs (flow direction pushing discs into seats). Careful attention to installation direction is crucial. (Bidirectional designs exist but are less common).
Metal-to-Metal Seating:
Standard seats are metal (e.g., Stainless Steel, Stellite). Resilient seats are possible but less common than in wedge valves.
Bolted Bonnet vs. Pressure Seal Bonnet:
Bolted bonnets are common for lower pressures/temps; Pressure Seal bonnets are used for high-pressure/high-temperature applications (ASME Class 900 and above).
Live-Loaded Packing:
Often standard or optional, maintaining stem seal integrity under thermal cycling and reducing fugitive emissions (meeting standards like ISO 15848 or TA-Luft).
Fire-Safe Design:
Many DDGVs comply with API 607/API 6FA fire safety standards, featuring secondary metal seals that engage if soft components burn away.

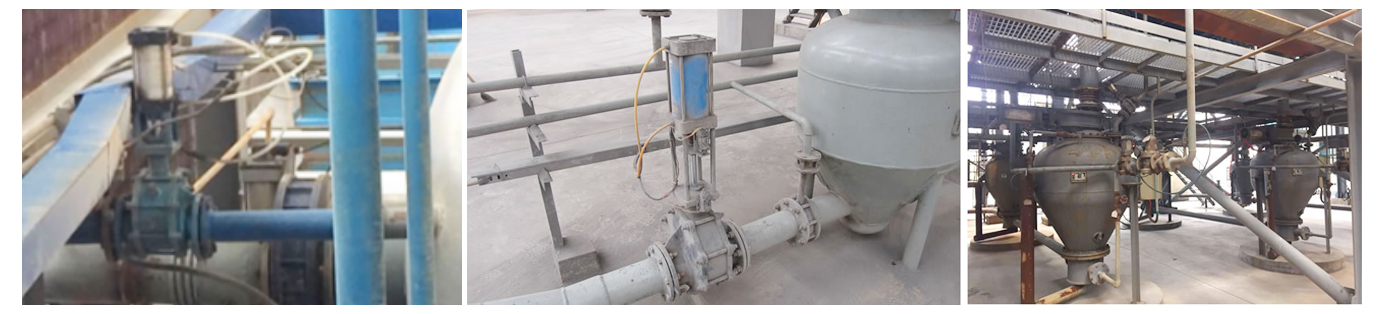

DDGVs excel in demanding services where reliability under harsh conditions is critical:
Power Generation:
Main steam lines & drains (high temp/pressure cycling).
Feed water systems.
Turbine bypass.
Oil & Gas (Upstream, Midstream, Refining):
High-pressure gas transmission & distribution.
Wellhead isolation.
Refinery process lines (critical isolation points).
Gas injection lines.
Pipeline block valves.
Petrochemical & Chemical Processing:
High-pressure/temperature reactor feeds & product lines.
Critical isolation for maintenance/safety.
Heat transfer fluid systems.
High-Pressure Steam Systems: (Beyond power plants, e.g., industrial process steam).
Clean Gas Services: Where tight shutoff is mandatory (e.g., Instrument gas, carrier gas).
Applications Prone to Significant Thermal Cycling: Any process with large temperature swings.
When standard gate valves fall short – plagued by high torque, susceptibility to thermal jamming, or inadequate sealing under extreme conditions – the Double Disc Gate Valve emerges as the engineered solution. Its unique spring-loaded parallel disc design delivers unmatched reliability in critical high-pressure, high-temperature, and thermally cyclic applications found in power plants, refineries, petrochemical facilities, and demanding pipeline services.
By offering lower operating torque, eliminating the risk of binding, and providing superior bubble-tight shutoff, DDGVs ensure safety, operational efficiency, and reduced maintenance costs. For mission-critical isolation where failure is not an option, the Double Disc Gate Valve is the proven choice.
