Gate valves are one of the most commonly used fluid control devices in modern industrial and municipal engineering systems. A seemingly simple misselection can lead to leaks and energy waste at best, or even production stoppages and safety incidents at worst, resulting in significant economic losses. However, with the myriad types, materials, and complex structures available on the market, choosing the right gate valve is a critical challenge for many engineering procurement and technical personnel. This article draws on WEIZIDOM’s over 20 years of manufacturing experience to provide a systematic and practical guide to gate valve selection.
Before selecting a gate valve, it’s important to first determine the valve’s key parameters based on the specific application scenario and operating conditions. This can effectively avoid compatibility issues during installation. These include media type (such as water, oil, steam, corrosive liquids), operating pressure, temperature range, installation location, and operating frequency. However, different operating conditions require significantly different gate valve structures and materials:
Water supply and drainage systems: Ductile iron or soft-seat gate valves are recommended for excellent sealing performance and cost-effectiveness;
Chemical and petroleum systems: Stainless steel or alloy steel gate valves are recommended for corrosion resistance and high-pressure resistance;
High-temperature steam or boiler pipelines: Carbon steel or chrome-molybdenum steel gate valves are recommended for superior high-temperature resistance.
Based on the structure of the valve stem and gate disc, gate valves are primarily classified as rising-stem gate valves and non-rising-stem gate valves. In addition, there are wedge-type gate valves and parallel-type gate valves.
Rising-stem gate valves: The position of the valve stem can be observed externally as it rises or falls, making it easy to determine the valve opening. They are commonly used on ground surfaces or in locations with ample space.
Non-rising-stem gate valves: The valve stem rotates without rising or falling, occupying a small space and are suitable for underground pipe networks or confined installation spaces.
Wedge-type gate valves offer a compact structure and strong sealing, making them suitable for high-pressure systems;
Parallel-type gate valves reduce friction and are suitable for low-pressure and large-diameter applications.
The material of a gate valve directly determines its durability and safety. Common valve body materials include ductile iron, stainless steel, carbon steel, and copper alloy. Choosing the appropriate material for the specific medium can significantly extend the valve’s service life. The sealing structure is also crucial. If the conveying medium contains particulate matter, valves with anti-blocking features should be preferred to prevent valve disc sticking or seal failure.
Soft-seal gate valves: Utilizing rubber or EPDM sealing rings, they offer excellent sealing and zero leakage, suitable for municipal water supply systems.
Metal-seal gate valves: High-temperature and wear-resistant, suitable for high-pressure applications such as petrochemicals and metallurgy.
Gate valves are available in three actuation modes: manual, electric, and pneumatic. Therefore, when purchasing, consider the appropriate actuation method based on the installation environment, ease of operation, and control system requirements.
Manual gate valves: Simple structure, economical and practical, suitable for small-diameter, low-frequency operation systems;

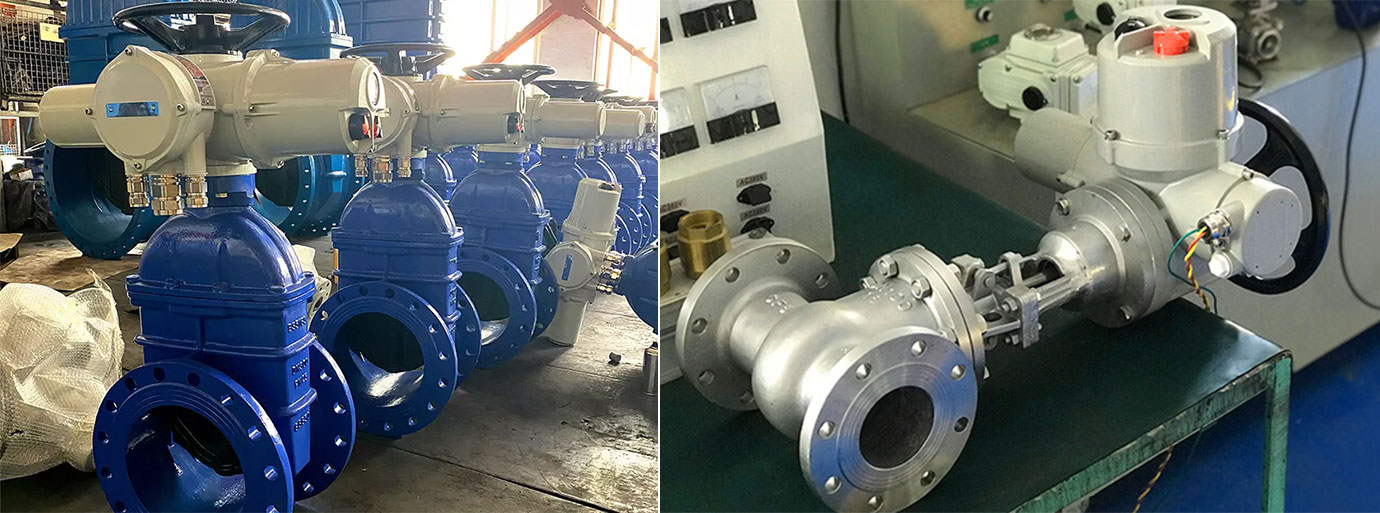

Electric gate valves: Suitable for large-diameter, remote or automated control systems, enabling precise opening and closing;
Pneumatic gate valves: Fast response, commonly used in industrial sites requiring efficient shutoff.
There are numerous valve brands on the market, but quality and after-sales service vary widely. Choosing a reliable manufacturer is essential to ensuring project safety and long-term stable operation.

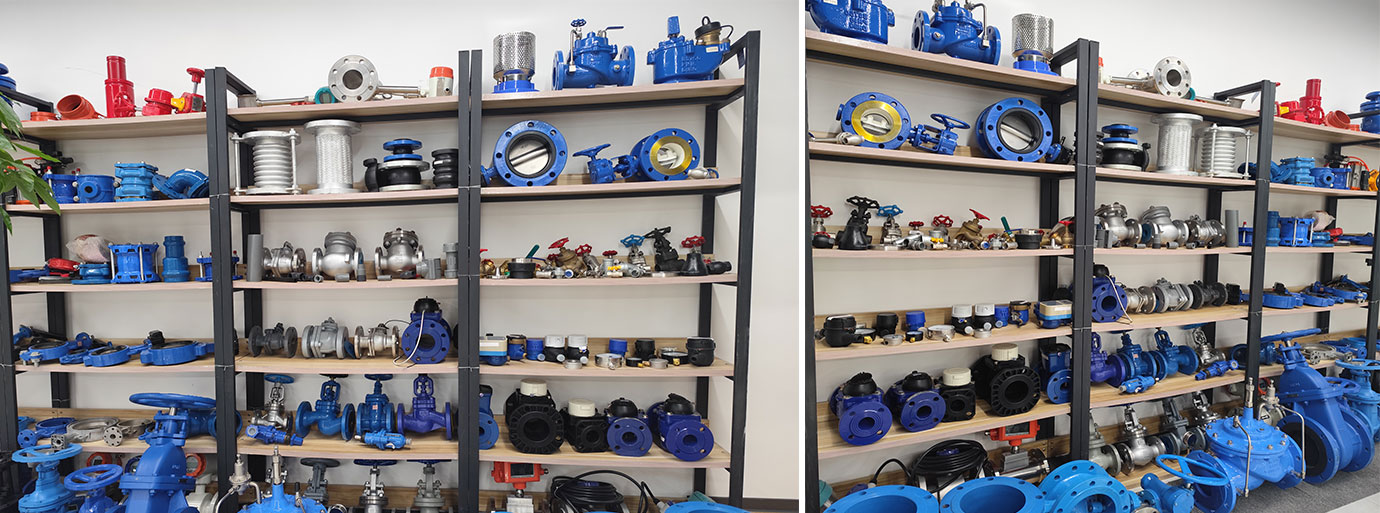

WEIZIDOM, a leading industrial valve manufacturer in China, has over 20 years of professional experience, specializing in the research, development, manufacturing, and export of gate valves, butterfly valves, and other products. Equipped with six modern production plants and a fully automated testing center, our products comply with international standards such as ISO, CE, API, and EN, and are exported to over 108 countries and regions worldwide.
WEIZIDOM adheres to the principle of “quality first,” strictly implementing quality control at every stage, from casting, processing, assembly, to testing. Each gate valve undergoes water pressure, airtightness, torque, and life tests to ensure stable operation under high-pressure, high-temperature, and corrosive conditions.
When selecting a gate valve, consider the operating conditions, material, structure, actuation, and brand comprehensively, and avoid focusing solely on price. High-quality valves can reduce ongoing maintenance costs and improve system efficiency.
WEIZIDOM offers an 18-month warranty, professional technical support, and prompt after-sales service to assist customers with every issue, from selection to installation. “The right gate valve guarantees stable system operation. Choosing WEIZIDOM means choosing quality, expertise, and trust.” If you are looking for a reliable gate valve manufacturer for your project, please contact the WEIZIDOM technical team for more detailed product information and a quote.
Based on years of experience, to help you better understand the process, we have prepared a simple “Gate Valve Purchasing Self-Checklist” for your reference at any time:
| Category | Key Questions |
| Medium Conditions | What is the medium? What are the temperature and pressure ranges? Is it corrosive or does it contain particles? |
| Pipeline Parameters | What is the nominal diameter (DN)? What type of connection is required? |
| Functional Requirements | Is the valve mainly used for full open/close operation? What is the opening/closing frequency? What sealing grade is required? |
| Technical Configuration | What are the materials of the valve body and internal parts? Rising stem or non-rising stem? Wedge type or parallel type? |
| Actuation Method | Manual, electric, or pneumatic operation? |
| Supplier | How is the brand reputation? Are there relevant certifications? How is the after-sales service? |
