The new type of butterfly valve – Anti-dew butterfly valve

2023-05-29 14:46:00

The anti-condensation butterfly valve is a specially designed valve to prevent condensation or freezing in low temperature environments. It has a similar structure to a normal butterfly valve but with improved sealing performance and material selection to suit low temperature conditions.

Differences between the anti-dew butterfly valve and the ordinary butterfly valve:

Sealing performance: The anti-dew butterfly valve uses a special sealing structure, such as double sealing or metal sealing, to ensure more reliable sealing performance in low temperature conditions. Ordinary butterfly valves usually use rubber or polymer seals, which have some limitations on sealing performance in low temperature environments.

Material selection: The main materials used for anti-dew butterfly valve are usually low temperature engineering plastics, stainless steel or high temperature alloys, and other low temperature resistant materials to ensure the reliability and corrosion resistance of the valve at low temperatures. And ordinary butterfly valves usually use more common materials, such as cast iron, carbon steel, etc.

The main materials of anti-dew butterfly valve depend on the specific working conditions and media, common materials include:

Low temperature engineering plastics: such as polypropylene (PP), polytetrafluoroethylene (PTFE), etc., with good low temperature resistance and corrosion resistance.

Stainless steel: such as 304, 316, etc., with good low temperature resistance and corrosion resistance.

High temperature alloys: such as titanium alloys, nickel alloys, etc., for very low temperatures and highly corrosive media.

The working principle of the anti-dew butterfly valve

The working principle of the anti-dew butterfly valve is similar to that of an ordinary butterfly valve, where the flow of the medium is controlled by rotating the valve flap. Its special feature is the use of special sealing structure and materials to ensure sealing performance in low temperature environments. For example, the double seal structure provides two layers of protection against media leakage; the metal seal is able to maintain a better sealing performance at low temperatures.

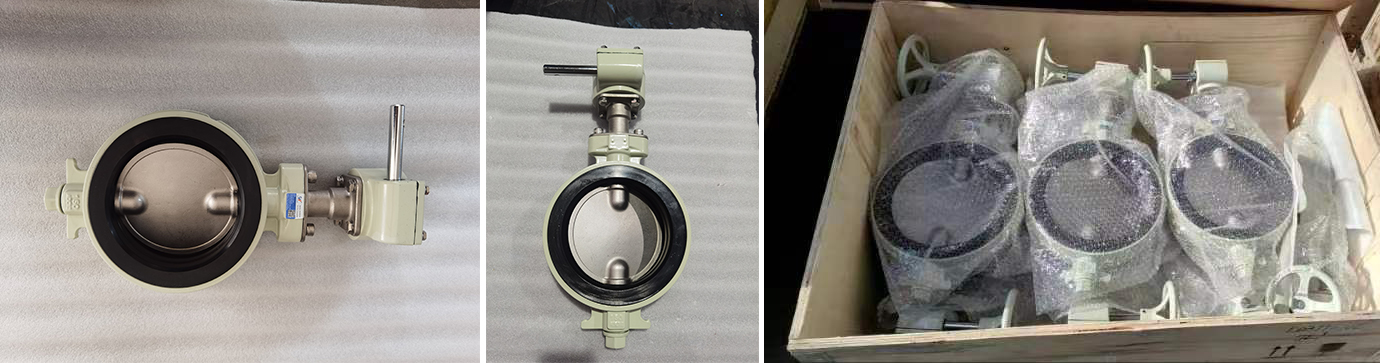

Anti-dew butterfly valve

Applicable working conditions and media for anti-dew butterfly valve:

Anti-dew butterfly valves are mainly suitable for low-temperature working conditions, especially those involving liquid or gaseous media. They are often used in low-temperature liquefied gas processing, refrigeration, and freezing equipment, chemical cooling systems, and other fields. Applicable media include liquid nitrogen, liquid oxygen, liquid hydrogen, liquefied natural gas, other cryogenic liquids, and gaseous media.

The application of an anti-dew butterfly valve in low-temperature conditions is mainly to prevent the valves’ normal operation and sealing performance from being affected by condensation or freezing. In low temperature environments, the temperature of the medium is very low, which can easily lead to condensation or freezing of valve components, affecting the flexibility and sealing performance of the valve. By using special sealing structures and materials, anti-condensation butterfly valves can effectively prevent the occurrence of condensation and ensure the normal operation of the valve.

It is important to note that the selection of a suitable anti-dew butterfly valve should be based on specific engineering requirements, media characteristics, and temperature conditions, among other factors. When using anti-dew butterfly valves, the relevant installation and operation requirements should be strictly followed to ensure the reliability and safety of the valves in low temperature environments.

The anti-dew butterfly valve has the following features and advantages for low temperature applications:

Prevention of condensation and freezing: By using special sealing structures and materials, the anti-dew butterfly valve is able to effectively prevent condensation and freezing problems caused by media temperatures below the dew point. This ensures the flexibility and reliability of the valve and avoids the adverse effects of condensation and freezing on the sealing and operation of the valve.

Good sealing performance: The anti-condensation butterfly valve is designed to improve sealing performance, using a double seal or metal seal structure to ensure a good seal in low temperature environments. This prevents media leakage and ensures the safe operation of the system.

Low temperature resistant material selection: The material selection of anti-condensation butterfly valves focuses on low temperature resistance, and common materials include low temperature engineering plastics, stainless steel, high temperature alloys, and so on. These materials have better low temperature strength, corrosion resistance, and low temperature resistance and can maintain the performance and reliability of the valve at very low temperatures.

Lightweight and compact construction: Anti-dew butterfly valves feature a butterfly valve construction that is lightweight and compact, making them suitable for applications where space is limited. They are quick to open and close and easy to operate, allowing them to adapt to rapidly changing process requirements.

In summary, anti-dew butterfly valves are special valves designed to solve the problem of condensation and freezing in low temperature conditions. They have good sealing performance, low temperature resistance, and reliable operating characteristics and are suitable for handling systems for cryogenic liquids and gases, such as liquefied natural gas storage and transportation, refrigeration equipment, cryogenic chemicals, and other fields. When selecting and applying anti-dew butterfly valves, they should be reasonably selected according to the specific working requirements and media characteristics, and follow the relevant installation and operation specifications to ensure the safety and reliability of the system.
