The Mining Challenge: Why Standard Valves Fail



Mining applications subject valves to a unique combination of destructive forces that quickly degrade standard designs. According to industry experts, mining slurries can have a solids content up to 80%, creating a highly abrasive and erosive medium that accelerates material degradation . Chemical additives used in the process may result in corrosive conditions, while continuous mechanical stress from high-pressure pipelines and long-distance transport further challenges valve integrity.



Key challenges in mining valve selection include:



Challenge	Impact on Valves
High Abrasion	Sharp rock and mineral particles wear through metal seats, gates, and discs
Erosion	High-velocity slurry erodes sealing surfaces and body cavities
Clogging	Solids settle and pack in valve cavities, preventing full closure
Corrosion	Acidic or saline slurries (e.g., sulfuric acid, cyanide) attack metal components
High Temperature	Steam lines in autoclaves and dryers exceed soft-seal limits
Remote Operation	Mines require valves compatible with PLC, DCS, or SCADA systems



To survive these conditions, mining valves must be engineered with specialized designs—knife gates that cut through solids, triple-offset metal seats that eliminate wear, and corrosion-resistant alloys—and designed with clog-free, full-bore flow paths.

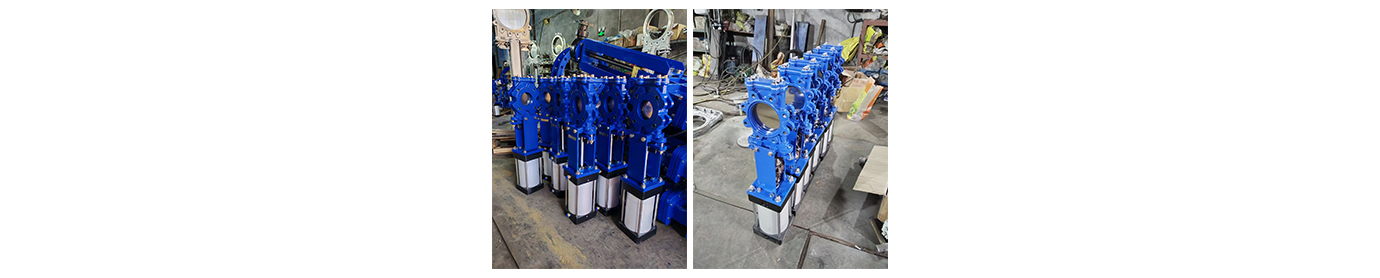

WCB Pneumatic Knife Gate Valve: Heavy-Duty Slurry Isolation



What Is a WCB Pneumatic Knife Gate Valve?



A WCB Pneumatic Knife Gate Valve is a heavy-duty, pneumatically actuated gate valve specifically designed for shut-off and isolation of slurries, particulate matter, powders, and viscous fluids. Unlike conventional gate valves that rely on a wedge-shaped gate, the knife gate valve features a sharp, beveled gate (blade) that cuts through thick, fibrous, or particle-laden media to achieve a positive seal. The valve is constructed from WCB (Weldable Cast Carbon Steel) material, providing excellent strength and durability for demanding industrial environments.

Key Specifications (WEIZIDOM):



Parameter	Details
Design Standard	JB/T8691-1998
Diameter Range	DN50 – DN700
Pressure Range	PN10, PN16, 150Lb, 10K
Media	Particulate matter, slurry, water, powder
Body Material	WCB (Carbon Steel)



Why Knife Gate Valves Are Irreplaceable in Mining



Knife gate valves are recommended for tailings and slurry service because their design inherently minimizes areas where material buildup can occur, reducing the risk of blockages or incomplete closure .



The key advantages include:



Sharp Gate (Knife Edge) – Cuts through thick slurries, fibrous materials, and particulate matter where conventional gate valves would jam or fail to close.



Unobstructed Flow Path – No body cavity eliminates solids accumulation and plugging—the gate passes through a packing chamber that is continuously purged or self-cleaning.



Pneumatic Actuation – Fast operation (1-5 seconds), remote control capable, failsafe options available, integrates with PLC, DCS, or SCADA systems.



Full Bore Design – Minimal pressure drop, allows passage of large particles.



Replaceable Seat – Extends valve life; can be replaced without removing the valve from the line.



Primary Functions in Mining:



Slurry isolation in mining and coal washing—cuts through thick, solids-laden media



Particulate matter control—sand, gravel, crushed ore, coal fines



Powder handling—cement, fly ash, lime, chemicals



Wastewater and sludge control—primary sludge, grit slurry, scum lines



Food processing—viscous food products, fruit pulp, fibrous materials



Seat Material Selection Guide:



Seat Material	Temperature Range	Abrasion Resistance	Best For
UHMWPE	-40°C to +80°C	Excellent	Mining slurries, coal slurry, sand, abrasive powders
Stainless Steel	-50°C to +400°C	Excellent	High temperature, abrasive service, steam
EPDM	-40°C to +120°C	Good	Water, mild slurries, wastewater, food
NBR (Buna-N)	-30°C to +100°C	Good	Oily slurries, petroleum-based media
PTFE	-200°C to +200°C	Fair	Chemical slurries, corrosive media



For most mining slurries and coal washing applications, UHMWPE seats provide optimal abrasion resistance and bubble-tight shut-off.



Pneumatic Actuator Options:



Actuator Type	Operation	Fail-Safe	Best For
Double-Acting	Air required to open AND close	No	Frequent cycling, applications where failsafe not required
Spring-Return (Air-to-Open)	Air opens, spring closes	Yes	Safety applications, emergency shutdown
Spring-Return (Air-to-Close)	Air closes, spring opens	Yes	Normally open applications

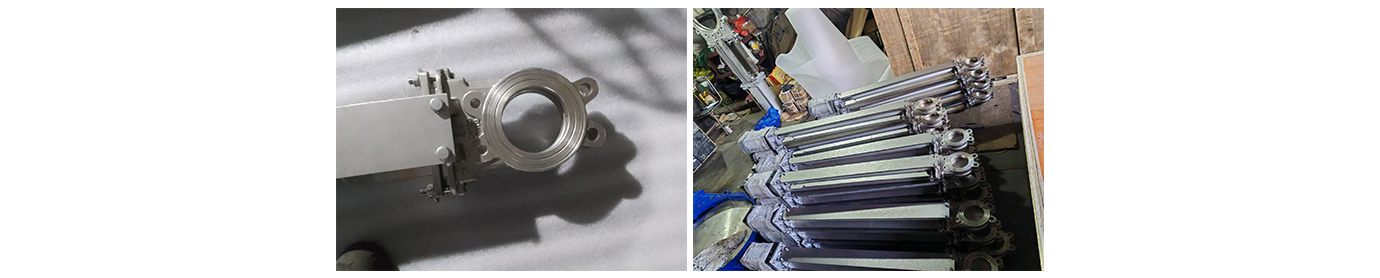

Stainless Steel Knife Gate Valve: Corrosion-Resistant Slurry Control



What Is a Stainless Steel Knife Gate Valve?



A Stainless Steel Knife Gate Valve is a heavy-duty, manually or actuated gate valve specifically designed for shut-off and isolation of slurries, particulate matter, powders, and viscous fluids in corrosive or sanitary environments. Constructed from stainless steel (304, 316, 316L) , it provides excellent corrosion resistance for acidic, caustic, or sanitary applications where carbon steel would rust or contaminate the process media.

Key Specifications (WEIZIDOM):



Parameter	Details
Design Standard	JB/T8691-1998
Diameter Range	DN50 – DN700
Pressure Range	PN10, PN16, 150Lb, 10K
Media	Particulate matter, slurry, water, powder (corrosive service)
Body Materials	304, 316, 316L Stainless Steel



Why Stainless Steel Knife Gate Valves Are Irreplaceable in Mining



For mining applications involving acidic or caustic slurries—copper leaching, gold cyanidation, nickel processing, or saline process water—stainless steel construction is essential. The stainless steel body and corrosion-resistant seats provide long service life where carbon steel would rapidly corrode.



Primary Functions in Mining:



Corrosive Slurry Isolation – Acidic ore slurries (copper, nickel, zinc), cyanide leach slurries (gold), tailings lines, concentrate transfer



Coal Washing Plant Slurry Control – Coal slurry, magnetite slurry, refuse lines—stainless steel resists corrosion from chlorides and chemicals in process water



Wastewater & Sludge Control in Corrosive Environments – Acidic or saline wastewater—stainless steel resists pitting and crevice corrosion



Powder Handling in Chemical & Mineral Processing – Chemical powders, mineral concentrates, salt, fertilizer



Corrosive Particulate & Slurry Transport – Abrasive, corrosive mixtures (acidic slurries, salt slurries, chemical precipitants)



Stainless Steel Material Selection Guide:



Material	Corrosion Resistance	Best For	Key Characteristics
304	Good	General corrosive service, mild acids/alkalis, food processing	18Cr-8Ni stainless steel—cost-effective, good general corrosion resistance
316	Excellent	Chloride environments, saltwater, acidic slurries, chemical processing	18Cr-10Ni-2Mo—molybdenum improves pitting and chloride resistance
316L	Excellent (superior weldability)	Same as 316, plus welded assemblies requiring low carbon	Low carbon version—resists carbide precipitation during welding



For mining slurries containing chlorides (salt water processing, certain ore leach circuits), 316 or 316L is strongly recommended.



Seat Material Selection Guide:



Seat Material	Temperature Range	Chemical Resistance	Abrasion Resistance	Best For
UHMWPE	-40°C to +80°C	Good	Excellent	Mining slurries, abrasive media, general corrosive service
PTFE	-200°C to +200°C	Excellent	Fair	Chemical slurries, aggressive acids/caustics
Stainless Steel	-50°C to +400°C	Good	Excellent	High temperature, abrasive service, steam

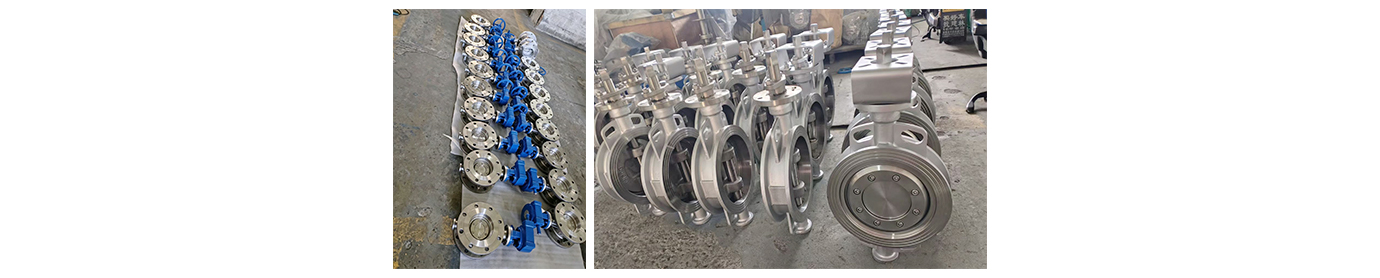

Triple-Eccentric Butterfly Valve: Zero-Wear, High-Temperature Performance



What Is a Triple-Eccentric Butterfly Valve?



A Triple-Eccentric Butterfly Valve (also known as a triple-offset butterfly valve) is an advanced, high-performance quarter-turn valve that incorporates three distinct offsets in its design, enabling metal-to-metal seating with zero rubbing, bubble-tight shut-off, and exceptional service life in demanding applications. Unlike conventional resilient-seated butterfly valves where the disc constantly rubs against the seat, the triple-offset design creates a camming action that eliminates friction, wear, and thermal binding.

Key Specifications (WEIZIDOM):



Parameter	Details
Design Standards	API 609, EN 593
Diameter Range	DN50 – DN2200
Pressure Range	Class 150 – Class 900
Media	Water, Steam, Oil, Seawater, Natural Gas
Body Materials	WCB, CF8M, CF8, C95800 (Alu-Bronze), TA2 (Titanium), 4A, 5A, 6A



The Three Eccentricities Explained



Eccentricity	Description	Benefit
First Offset	Stem axis offset from disc centerline	Creates cam action—disc lifts off seat immediately upon opening
Second Offset	Stem axis offset from pipe/valve centerline	Creates torque-seating effect—line pressure assists sealing
Third Offset	Seating cone axis offset from stem axis	Creates conical sealing geometry—eliminates friction, provides bi-directional sealing



These three offsets work together to eliminate friction between the disc and seat during operation:



The disc lifts off the seat immediately upon opening—no rubbing, no wear



The disc contacts the seat only during the final degrees of closure—no sliding, no galling



The sealing surface is bi-directional and becomes tighter as line pressure increases (pressure-assisted sealing)



Why Triple-Eccentric Butterfly Valves Are Irreplaceable in Mining



For mining applications involving high-temperature steam (autoclaves, dryers), corrosive slurries, and seawater, the triple-eccentric butterfly valve offers unique advantages:



Zero Rubbing / Zero Wear – The disc contacts the seat only at full closure—dramatically extends seat life



Metal-to-Metal Seating – No soft seals (elastomers, PTFE) to degrade—suitable for high temperatures and abrasive media



Bubble-Tight Shut-Off – Meets API 598 requirements despite metal seats



Bi-Directional Sealing – Seals equally well against pressure from either direction



Exceptional Temperature Capability – From cryogenic to high-temperature service



Primary Functions in Mining:



Mining water system isolation—mine dewatering lines, process water systems, tailings water return



High-temperature steam service—autoclaves, dryers, concentrators (metal-to-metal seating withstands high temperatures where soft-seated valves would fail)



Corrosive slurry handling—acidic slurries, caustic solutions, chemical streams (with CF8M, C95800, TA2, or high-performance alloys)



Seawater and marine applications—seawater cooling, desalination (C95800 Alu-Bronze and TA2 Titanium resist saltwater corrosion)



Throttling and flow regulation—stable, low-torque throttling with minimal vibration



Alloy Material Selection Guide for Mining Service:



Material	Equivalent	Best For	Key Characteristics
WCB	Carbon Steel	General water, steam, oil, gas—non-corrosive	Cost-effective, good strength, -29°C to +425°C
CF8	SS304	General corrosive service, oxidizing acids	18Cr-8Ni stainless steel—good general corrosion resistance
CF8M	SS316	Aggressive corrosive service, chlorides, reducing acids	18Cr-10Ni-2Mo—molybdenum improves chloride/pitting resistance
C95800	Alu-Bronze	Seawater, brackish water, marine environments, shipyards	Excellent seawater corrosion resistance, biofouling resistance
TA2	Titanium	Extreme corrosion (seawater, chlorides, wet chlorine, acids)	Highest corrosion resistance in aggressive chloride and acid environments



For seawater and marine applications (shipyards), C95800 Alu-Bronze and TA2 Titanium offer exceptional resistance to pitting and crevice corrosion.

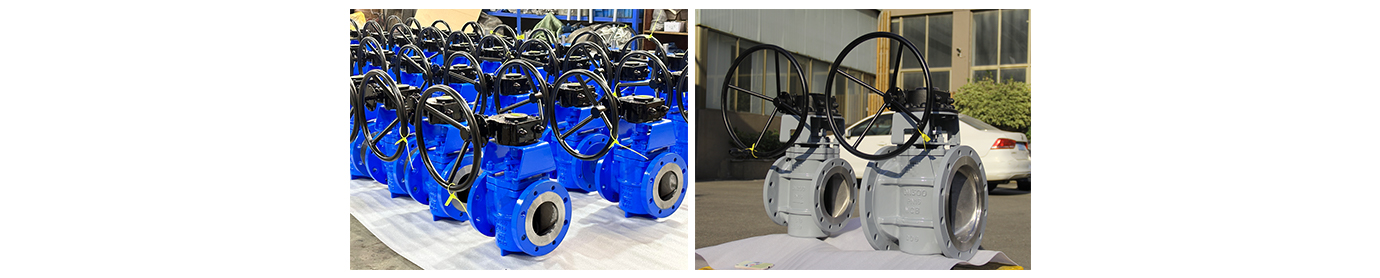

Plug Valve: Versatile Isolation and Flow Diversion



What Is a Plug Valve?



A Plug Valve is a quarter-turn rotary valve that uses a cylindrical or tapered plug with a through-port (bore) to control the flow of fluid. The plug rotates within the valve body to either align its bore with the pipeline axis (open position) or position the solid face of the plug against the flow path (closed position). This simple, robust design has been proven in demanding industrial service for over a century.

Key Specifications (WEIZIDOM):



Parameter	Details
Design Standards	API 599, API 6D, GB12240
Diameter Range	DN50 – DN350
Pressure Range	Class 150 – Class 1500, PN16 – PN160
Media	Water, steam, oil, chemical products
Body Materials	WCB, WC6, CF8, CF8M



Why Plug Valves Are Irreplaceable in Mining



Plug valves offer a combination of fast quarter-turn operation, low pressure drop, and multi-port configurability that makes them ideal for mining applications requiring flow diversion or isolation:



Quarter-Turn Operation – Fast 90-degree open/close action



Multiple Port Configurations – 2-way (straight through), 3-way L-port (diverter), 3-way T-port (mixing/distributing)



Low Pressure Drop – Straight-through flow path when open



Self-Cleaning Action – Rotating plug wipes away debris from sealing surfaces



Fire-Safe Designs Available – Metal-to-metal secondary sealing



Primary Functions in Mining:



Flow isolation in process pipelines—oil, chemical, pharmaceutical, fertilizer, power



Flow diversion (3-way L-port)—common inlet diverts to either outlet A or outlet B (one outlet closed)



Flow mixing/distribution (3-way T-port)—common port can flow to both outlets simultaneously, or combine flow from two inlets



High-pressure steam isolation—WC6 body material handles high-temperature steam (up to +540°C)



Corrosive media isolation—CF8/CF8M stainless steel construction resists chemical attack



Port Configurations:



Configuration	Ports	Function	Typical Applications
2-Way (Straight-Through)	2 ports	Standard on/off isolation	General isolation in oil, water, steam, chemical lines
3-Way L-Port (Diverter)	3 ports	Common inlet diverts to EITHER outlet A OR B	Flow switching between two destinations (filter switching, tank filling, bypass lines)
3-Way T-Port (Mixing/Distributing)	3 ports	Common port can flow to BOTH outlets simultaneously	Reagent mixing, flow combining, distribution to multiple points



Material Selection Guide:



Body Material	Equivalent	Best For	Temperature Range	Key Characteristics
WCB	Carbon Steel	General oil, water, steam, gas—non-corrosive	-29°C to +425°C	Cost-effective, good strength
WC6	Chrome-Moly Steel	High-temperature steam, power plant, refinery	-29°C to +540°C	1.25% Chrome-0.5% Molybdenum—excellent high-temperature strength
CF8	SS304	General corrosive service, oxidizing acids, pharmaceutical	-196°C to +650°C	18Cr-8Ni stainless steel—good general corrosion resistance
CF8M	SS316	Aggressive corrosive service, chlorides, reducing acids	-196°C to +650°C	18Cr-10Ni-2Mo—molybdenum improves chloride/pitting resistance



Quick Comparison: Mining Valve Selection Reference



Valve Type	Best For	Diameter Range	Key Material	Key Advantage
WCB Pneumatic Knife Gate	Abrasive slurries, tailings, coal washing	DN50–DN700	WCB + UHMWPE seat	Knife gate cuts through solids; no cavity to clog; pneumatic actuation for remote operation
SS Knife Gate	Corrosive slurries, acidic leach, saline water	DN50–DN700	316/316L SS + UHMWPE/PTFE seat	Same knife gate action + corrosion resistance; 316L for chlorides
Triple-Eccentric Butterfly	High-temp steam, corrosive slurries, seawater	DN50–DN2200	CF8M, C95800, TA2	Zero-wear metal seat; bi-directional; high temperature; pressure-assisted sealing
Plug Valve	Flow diversion, high-pressure steam, corrosive media	DN50–DN350	WCB, WC6, CF8, CF8M	Quarter-turn; multi-port options; self-cleaning; fire-safe available



Mining applications demand valves that can withstand high abrasion, erosion, clogging, corrosion, and high temperatures. The four valve types covered in this guide—WCB Pneumatic Knife Gate Valves, Stainless Steel Knife Gate Valves, Triple-Eccentric Butterfly Valves, and Plug Valves—are specifically engineered to address these challenges.



Choose WCB Pneumatic Knife Gate Valves for heavy-duty slurry isolation in non-corrosive services where remote operation and clog-free performance are essential.



Choose Stainless Steel Knife Gate Valves for corrosive mining slurries—acidic leach circuits, cyanide processing, saline tailings—where carbon steel would rapidly corrode.



Choose Triple-Eccentric Butterfly Valves for high-temperature steam, seawater, and aggressive chemical services where zero-wear metal seating and bi-directional sealing are required .



Choose Plug Valves for versatile isolation and flow diversion applications where multi-port configurability and self-cleaning action are needed.



By matching the valve type to your specific mining application—considering media abrasiveness, corrosivity, temperature, pressure, and automation requirements—you can ensure reliable operation, minimize downtime, and maximize equipment life.
