The resilient gate valve, with its rubber-encapsulated wedge, delivers bubble-tight zero leakage and low operating torque, making it the standard choice for clean water and general service. The hard seal gate valve, with metal-to-metal sealing surfaces, sacrifices zero-leakage for extreme temperature, high pressure, and abrasion resistance where rubber seals would fail.
This comprehensive guide compares these two valve types across design, materials, performance, and applications. It helps engineers, procurement professionals, and plant operators select the right gate valve for their specific water system requirements—whether for drinking water distribution, high-temperature industrial loops, or abrasive raw water intake.
A flanged gate valve is a linear-motion isolation valve used primarily for on/off service in piping systems. The valve operates by raising or lowering a gate (wedge) perpendicular to the flow direction. When fully open, the gate retracts completely into the bonnet, creating an unobstructed flow path with minimal pressure drop. When fully closed, the gate seals against the seat to stop flow.
The “flanged” end connection allows the valve to be bolted directly between pipe flanges, providing a secure, leak-proof connection that is easy to install, remove, and maintain.
Gate valves are not designed for throttling; they are intended to be either fully open or fully closed. Throttling can cause vibration, erosion, and premature wear of the gate and seats.

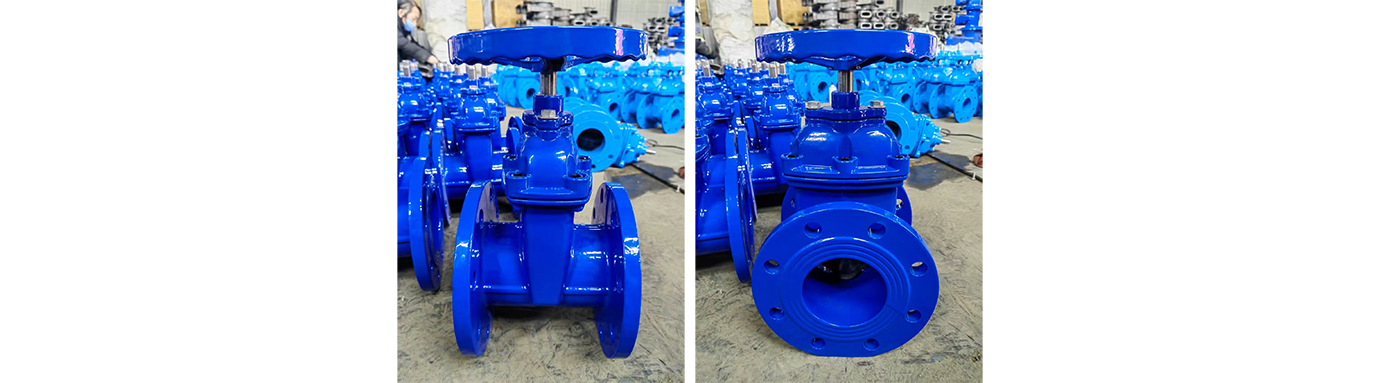

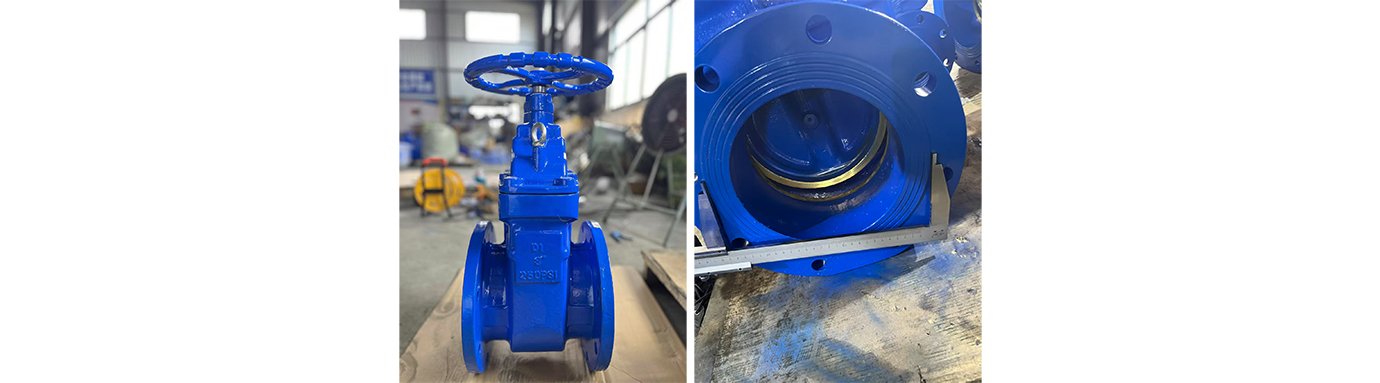

A Flanged Resilient Gate Valve features a fully rubber-encapsulated (resilient) wedge that compresses against the valve body to create a tight, bubble-proof seal. The rubber material—typically EPDM (ethylene propylene diene monomer)—provides exceptional sealing performance, particularly at low pressures where metal-seated valves may leak.
|
Parameter |
Details |
|
Design Standard |
BS5163 / DIN F4/F5 / ANSI |
|
Diameter Range |
DN40 – DN1200 |
|
Pressure Range |
PN10 / PN16 / PN25 |
|
Medium |
Water |
|
Material |
Ductile iron (DI) body, EPDM-encapsulated wedge |
|
Application Fields |
Water supply and drainage |
|
Function |
Description |
|
Flow Isolation |
Completely stops or allows water flow for maintenance, repair, or emergency shutdown |
|
Sectional Control |
Divides large water networks into manageable sections, enabling localized shutdown without affecting the entire system |
|
Pump & Station Protection |
Installed at pump stations and reservoir outlets to protect equipment from backflow or unexpected surges |
|
Pressure Management |
When fully open, offers near-zero flow resistance, helping maintain consistent pressure in transmission mains |
|
Safe Maintenance |
Provides positive shut-off for safe repair of downstream components (meters, valves, hydrants) |
✔ Municipal water supply networks
✔ Building water distribution systems
✔ Fire protection pipelines
✔ Irrigation and drainage systems
✔ Industrial water treatment plants
100% Leak-Free Sealing – The fully rubber-encapsulated wedge ensures bubble-tight shut-off even under low pressure, exceeding metal-seated alternatives.
Corrosion Resistance – Ductile iron body with fusion-bonded epoxy coating provides excellent resistance to rust, chemicals, and aggressive water conditions.
Low Torque Operation – Optimized wedge geometry and low-friction stem nut reduce operating torque, making it easy to open/close even in large diameters.
Bidirectional Sealing – Seals equally well against pressure from either direction, simplifying installation and avoiding orientation errors.
Long Service Life – Resilient rubber wedge resists abrasion, debris, and aging. With 12-step in-house testing, these valves are built for decades of reliable service.
Maintenance Convenience – If sealing parts in the bonnet are damaged, they can be replaced with the valve completely open while still in the pipeline—minimizing downtime.

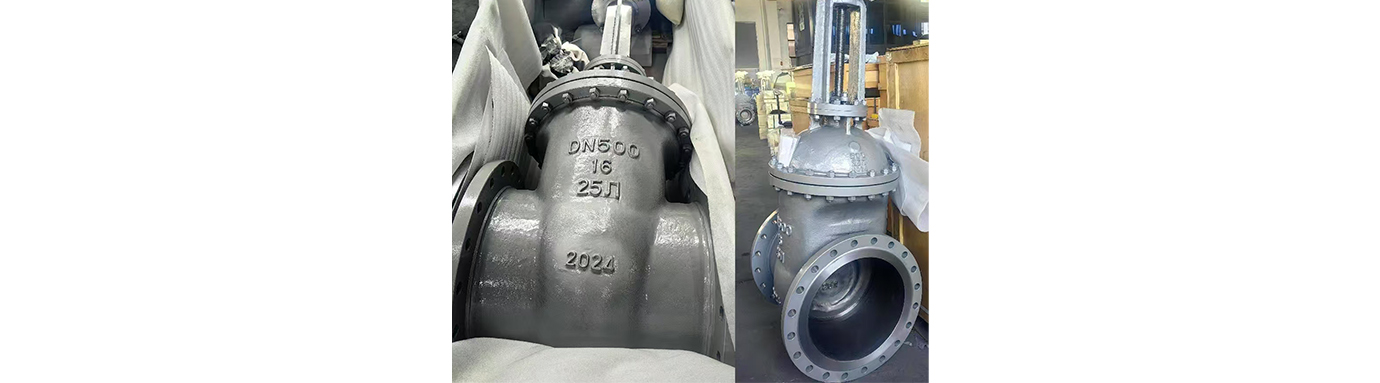

A Hard Seal Gate Valve features metal-to-metal sealing surfaces between the gate (wedge) and the valve body. Common hard seal materials include stainless steel, Stellite alloy, hardfaced chrome, or other wear-resistant alloys. Unlike resilient gate valves, hard seal valves have no rubber or elastomer components in the sealing area.
These valves are specifically designed for conditions where rubber seals would fail: high temperatures, high pressures, abrasive media, and corrosive environments.
|
Parameter |
Details |
|
Design Standard |
BS5163 / DIN F4/F5 / ANSI |
|
Diameter Range |
DN50 – DN1200 |
|
Pressure Range |
PN10 / PN16 / PN25 (up to PN40 / Class 600+) |
|
Medium |
Water (including high-temp, abrasive, or saline) |
|
Material |
Ductile iron body with hardfaced stainless steel or alloy wedge/seats |
|
Application Fields |
Water supply and drainage, demanding service |
|
Function |
Description |
|
High-Temperature Isolation |
Capable of handling hot water, steam, or high-temperature industrial water where rubber seals would degrade |
|
High-Pressure Shut-Off |
Provides reliable sealing in high-pressure water mains (PN25, PN40, Class 300+) exceeding soft-seal limits |
|
Abrasive Media Handling |
Suitable for water containing sand, sediment, slurry, or other abrasive particles that would damage a resilient rubber wedge |
|
Corrosive Water Conditions |
With appropriate alloy selection (stainless or duplex steel), resists corrosion from saline water, chemical-laden water, or aggressive wastewater |
|
Long-Term Durability |
Metal-to-metal sealing surfaces resist aging, ozone, UV radiation, and chemical attack—ensuring decades of service without seal replacement |
✔ High-temperature water transmission
✔ High-pressure booster stations
✔ Industrial cooling water systems
✔ Raw water intake with sand/sediment
✔ Desalination plants (brine handling)
✔ Wastewater treatment (abrasive sludge lines)
✔ Power plant water circuits
Metal-to-Metal Sealing – Hardfaced stainless steel or alloy sealing surfaces provide excellent wear resistance and dimensional stability, even after thousands of cycles.
High Temperature Capability – Operating range from -29°C to +425°C (or higher), far exceeding soft-seal valves.
High Pressure Rating – Available up to PN40, Class 600, or higher, suitable for high-pressure water mains and industrial systems.
Abrasion & Erosion Resistance – Hardfaced wedge and seat rings (e.g., Stellite 6, hard chrome, tungsten carbide) resist damage from sand, grit, and slurry.
Corrosion Resistance – Available in carbon steel (with coating), stainless steel (SS304, SS316), duplex steel, or other alloys to match water chemistry.
Long Service Life – No rubber components to crack, swell, or harden over time. With 12-step in-house testing, these valves are built for decades of reliable operation.
|
Parameter |
Resilient (Soft Seal) Gate Valve |
Hard Seal Gate Valve |
|
Sealing Material |
Rubber (EPDM/NBR) encapsulated wedge |
Metal-to-metal (stainless steel, Stellite, hard chrome) |
|
Temperature Range |
-10°C to +80°C (typical) |
-29°C to +425°C (or higher) |
|
Pressure Range |
Typically PN10–PN25 |
Up to PN40 / Class 600+ |
|
Abrasion Resistance |
Poor (rubber can be cut/gouged) |
Excellent (hardfaced surfaces) |
|
Corrosion Resistance |
Good (body coating) but rubber can degrade |
Good to excellent (depends on alloy) |
|
Leakage Rate |
Bubble-tight zero leakage |
Zero / minimal (metal-seated) |
|
Operating Torque |
Lower (rubber-to-metal friction) |
Higher (metal-on-metal friction) |
|
Ideal For |
Clean/cold water, general service |
High temp, high pressure, abrasive media |
|
Cost |
Lower |
Higher |
* Media is clean water (municipal supply, building distribution, fire protection)
* Operating temperature is within -10°C to +80°C
* Pressure rating is PN10–PN25
* Bubble-tight zero leakage is required
* Low operating torque is preferred
* Cost is a primary consideration
* Media temperature exceeds +80°C (hot water, steam)
* Pressure rating exceeds PN25 (Class 300 or higher)
* Water contains abrasive particles (sand, sediment, slurry)
* Media is corrosive (saline, chemical-laden, aggressive wastewater)
* No rubber components are permitted (fire-safe, high-temperature applications)
* Metal-seated durability is required for frequent cycling
Note: For most standard clean water applications (municipal water, building plumbing, fire protection), the resilient gate valve is the recommended choice due to its superior sealing, low torque, and cost-effectiveness. Choose hard seal only when operating conditions exceed soft-seal limits.

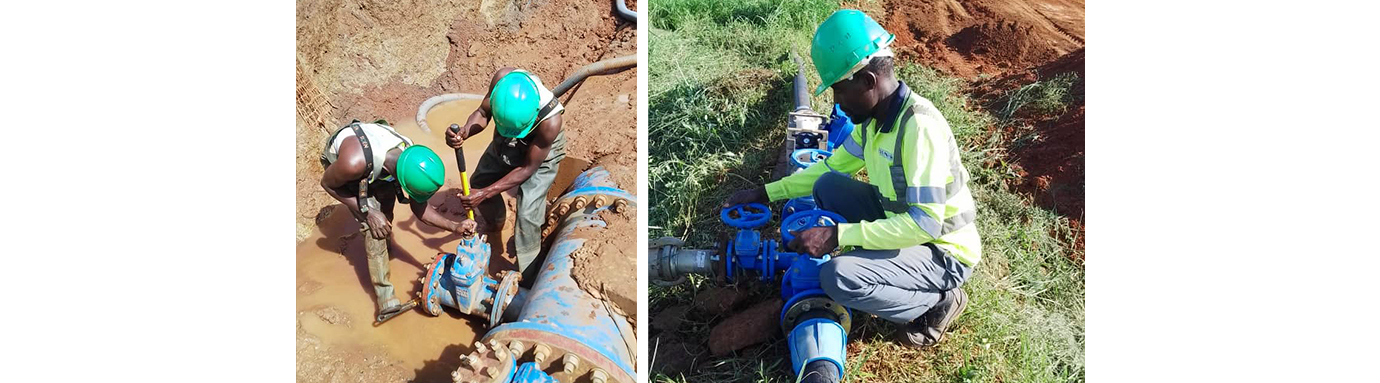

Proper installation is critical to ensure long service life and reliable performance.
|
Best Practice |
Why It Matters |
|
Thorough pipeline flushing before installation |
Removes weld slag, debris that can damage sealing surfaces (particularly for resilient wedge) |
|
Check flow direction |
Most gate valves are bidirectional, but verify body markings |
|
Use proper torque for flange bolts |
Uneven torque causes gasket failure and body distortion; tighten in star pattern |
|
Install with stem vertical (for horizontal pipes) |
Reduces risk of sediment accumulation on wedge; ensures smooth operation |
|
Do not use as throttling valve |
Gate valves are for on/off service only; throttling causes erosion and premature wear |
|
For buried service, use non-rising stem (NRS) option |
Saves space; allows operation from surface with extension spindle |
|
Test after installation |
Perform hydrostatic test (1.5× rated pressure) to verify sealing and flange joint integrity |
|
Practice |
Frequency |
Purpose |
|
Visual inspection |
Monthly |
Check for external leakage, corrosion, or physical damage |
|
Operate through full cycle |
Quarterly (for infrequently used valves) |
Prevents sediment build-up and keeps mechanism free |
|
Check packing gland |
Annually |
Adjust or replace packing to maintain stem seal integrity |
|
Inspect internal sealing surfaces |
During shutdowns |
For hard seal valves, check for scoring or erosion; for resilient, check for rubber degradation |
Flanged gate valves are indispensable components in water systems, providing reliable isolation for maintenance, emergency shutdown, and system control. The choice between resilient (soft seal) and hard seal designs depends on your specific operating conditions.
Resilient gate valves offer the best sealing performance for clean, cold water applications. Their rubber-encapsulated wedge provides bubble-tight shut-off, low operating torque, and excellent corrosion resistance—making them the standard choice for municipal and building water systems.
Hard seal gate valves are the right choice when conditions exceed soft-seal limits—high temperatures, high pressures, abrasive media, or corrosive environments. Their metal-to-metal sealing surfaces deliver unmatched durability and reliability in demanding industrial applications.
By matching the valve type to your specific media, temperature, pressure, and service conditions, you can ensure decades of reliable, leak-free operation and minimize total lifecycle costs.
