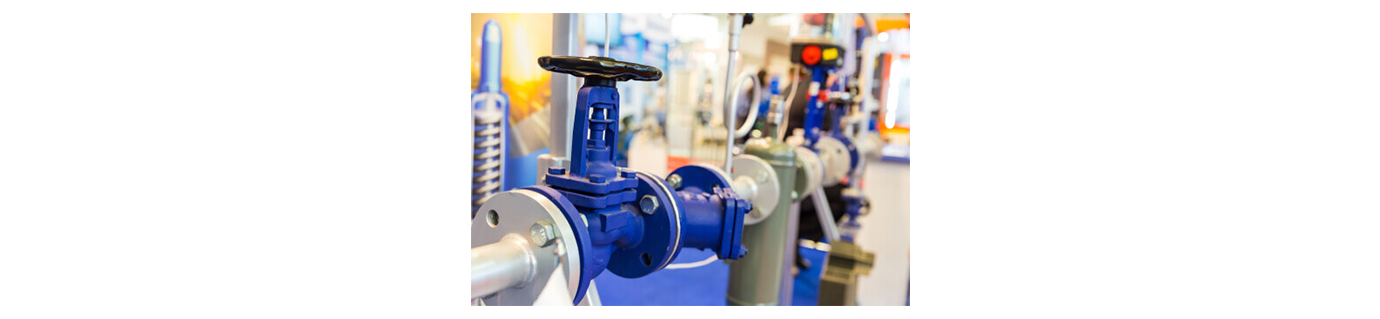

In the world of industrial flow control, few valve types offer the versatility and reliability of the globe valve. Unlike gate valves that are designed primarily for on/off service, the globe valve excels at precise flow regulation while also providing reliable shut-off capability . Its distinctive spherical body shape and internal baffle design create a tortuous flow path that enables exceptional throttling performance—a feature that has made globe valves the preferred choice across power generation, oil and gas, chemical processing, and water treatment industries .
The name “globe valve” derives from its originally spherical body shape, though modern designs have evolved to include various configurations while retaining the same fundamental operating principle: a linear-motion closure member (disc or plug) moves perpendicular to the valve seat to start, stop, or regulate flow .
Whether you are controlling high-pressure steam in a power plant, regulating corrosive chemicals in a processing facility, or managing cooling water in an HVAC system, selecting the right globe valve type is critical for operational efficiency and safety. This comprehensive guide covers six essential globe valve categories—Stainless Steel Globe Valve, WCB Globe Valve, API Globe Valve, Bellows Globe Valve, Forged Steel Globe Valve, and Y-Type Globe Valve—providing detailed insights into their applications, advantages, and selection criteria.

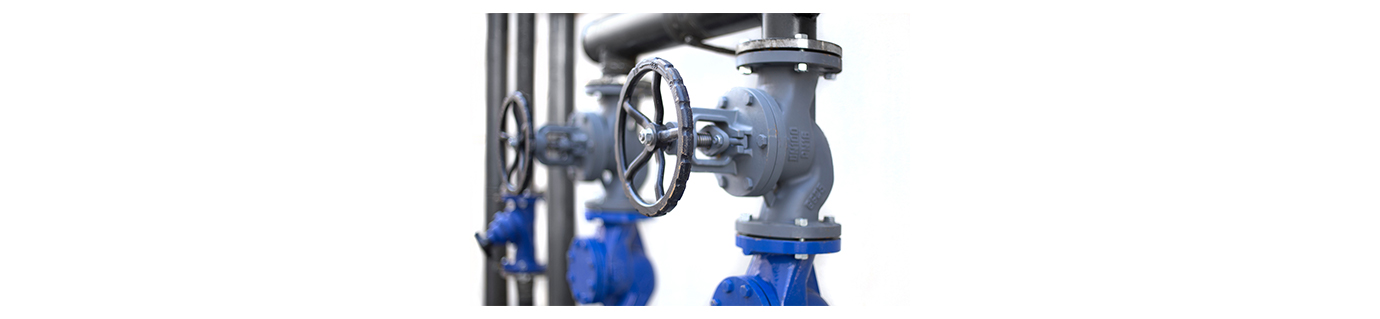

A globe valve operates through the linear movement of a disc or plug element against a stationary seat ring. When the valve stem is rotated (manually or via an actuator), the disc moves up or down, varying the distance between the disc and the seat to control flow rate . The closure mechanism typically involves a plug that can be either balanced (with holes through the plug to equalize pressure) or unbalanced (solid, providing tighter shut-off) .
Precise Throttling Capability – The globe valve’s flow characteristic—linear, equal percentage, or quick opening—allows for fine-tuned flow control across a wide range of applications .
Shorter Stem Travel – Compared to gate valves, globe valves require only about one-quarter of the stem travel to achieve full opening, making them quicker to operate .
Good Shut-off Capability – With proper seat and disc materials, globe valves provide reliable sealing, with metal-to-metal or soft seating options available .
Simple Maintenance – The valve’s construction allows for easy disassembly and replacement of internal components (seat, disc, packing) without removing the entire valve from the pipeline .
Durability – The sealing surfaces experience minimal friction during operation (the disc moves perpendicular to the seat rather than sliding across it), reducing wear and extending service life .
Higher Fluid Resistance – The tortuous flow path creates significant pressure drop compared to gate or ball valves . This makes them less suitable for large-diameter, high-flow applications where energy efficiency is critical.
Larger Size for Given Capacity – To achieve the same flow capacity as a gate valve, a globe valve typically requires a larger body, which can impact space and cost .
Constructed from stainless steel grades (304, 304L, 316, 316L, CF8, CF8M), these valves offer excellent corrosion resistance for aggressive media applications.
Key Applications:
Chemical processing handling corrosive liquids and gases
Pharmaceutical and food-grade applications requiring high purity
Marine environments with saltwater exposure
Sour gas and chloride-containing service
Core Advantages:
Exceptional resistance to corrosion, oxidation, and chemical attack
Suitable for a wide temperature range (-196°C to 700°C depending on grade)
Compatible with nitric acid, acetic acid, and oxidizing media
Easy to clean and maintain—ideal for sanitary applications
Long service life in demanding environments
Selection Tip: Choose SS316/CF8M for enhanced resistance to chlorides and acidic media. SS304/CF8 is suitable for less aggressive environments .
Featuring a cast carbon steel body (WCB – ASTM A216 Grade WCB), these valves are the workhorses of general industrial service.
Key Applications:
* Steam systems and condensate lines
* Water and cooling water distribution
* Fuel oil systems
* Boiler vents and drains
* General oil and gas pipelines
Core Advantages:
Cost-effective for general non-corrosive services
Good strength at moderate temperatures (-29°C to 425°C)
Excellent weldability and machinability
Widely available with multiple connection options (flanged, threaded, socket weld)
Reliable performance in pressure classes up to Class 1500
Selection Tip: WCB globe valves are ideal for temperature ranges up to 425°C. For higher temperatures, consider WC6 or WC9 alloy steel grades .
Designed and manufactured to American Petroleum Institute (API) standards (API 602, API 600, API 623), these valves meet stringent requirements for oil, gas, and petrochemical applications.
Key Applications:
* Refinery process lines
* Wellhead and manifold systems
* High-pressure gas transmission
* Sour service and hydrogen sulfide environments
* Critical isolation in petrochemical plants
Core Advantages:
Compliant with API fire-safe and fugitive emissions standards
Available with trim materials (hard-faced) for severe service
Suitable for high-pressure classes up to Class 2500
Rigorous quality control and material traceability
Worldwide acceptance in oil and gas projects
Selection Tip: Look for valves with API 624 or ISO 15848-1 certification for low fugitive emissions in sensitive environmental applications .
Equipped with a welded metal bellows sealing system that completely isolates the process media from the atmosphere, replacing traditional packing. This design virtually eliminates fugitive emissions.
Key Applications:
* Toxic and hazardous chemical services
* High-purity and pharmaceutical systems
* Steam and high-temperature applications where packing leakage is unacceptable
* Refrigeration and cryogenic service
* Vacuum systems
Core Advantages:
Zero-leakage stem sealing—no packing gland emissions
Extended service life compared to packed valves
Suitable for high vacuum and elevated temperatures
Reduces maintenance frequency (no packing replacement)
Meets strict environmental regulations for volatile organic compounds (VOCs)
Selection Tip: Specify bellows globe valves for applications where even minimal fugitive emissions pose safety or environmental risks. The bellows material (typically stainless steel or Inconel) should be matched to the service temperature and pressure .

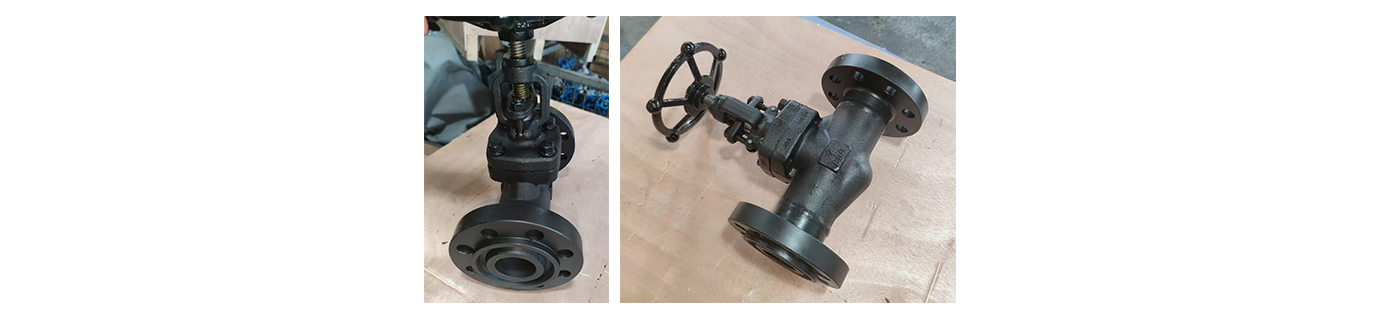

Manufactured from forged steel (A105, F11, F22, F304, F316), these valves offer superior strength and structural integrity compared to cast counterparts.
Key Applications:
* High-pressure and high-temperature systems (wellheads, boilers, superheaters)
* Small-bore instrumentation lines
* Power plant feedwater and steam systems
* Heavy-duty oil and gas applications
* Refinery critical service
Core Advantages:
Exceptional strength and resistance to thermal and pressure cycling
Compact design with higher pressure ratings than cast equivalents
Superior metallurgical quality—fewer defects (porosity, inclusions)
Available with socket weld, threaded, or flanged connections
Suitable for cryogenic to high-temperature applications
Selection Tip: Forged steel globe valves are typically used in sizes up to 2″ (DN50) and pressure classes 800 lb and above. They are the standard choice for small-bore, high-pressure services where reliability is paramount .

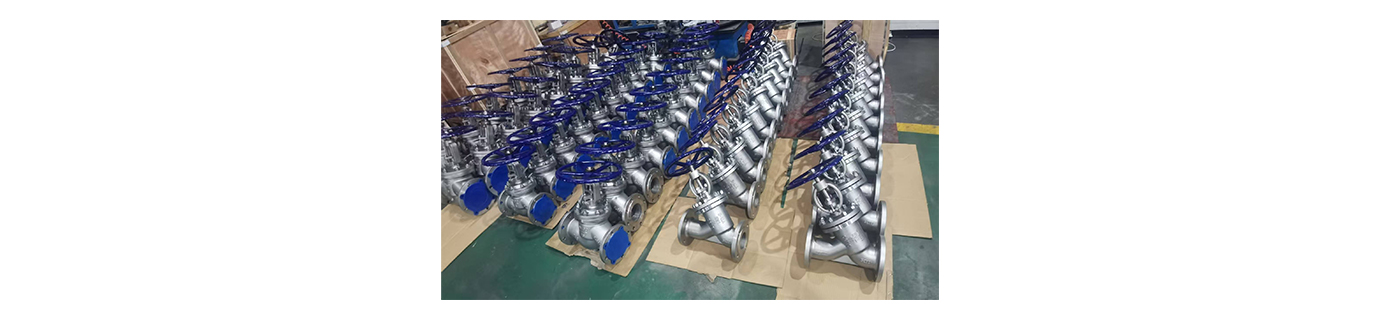

Y-Type Globe Valve (Straight-Through Globe Valve)
The Y-pattern (or oblique) globe valve features a body design where the valve stem and seat are angled approximately 45° to the pipeline axis . This design significantly reduces flow resistance.
Key Applications:
* Slurry and viscous fluid handling
* Pulp and paper processing
* Mining and mineral processing
* Chemical systems handling solids-laden fluids
* High-temperature steam and condensate (reduced erosion)
Core Advantages:
Lowest pressure drop among globe valve designs – the flow path is nearly straight
Suitable for fluids with suspended solids, fibers, and crystallizing media
Reduces erosion and wear on sealing surfaces
Self-draining configuration—no dead legs or pockets
Better flow capacity per valve size than straight-pattern globe valves
Selection Tip: Choose Y-type globe valves for applications where pressure drop must be minimized or where the service media contains particulates that would accumulate in a standard globe valve .
|
Body Pattern |
Pressure Drop |
Best For |
Flow Characteristic |
Typical Applications |
|
Straight (Tee) |
Highest |
General throttling |
Standard globe |
Chemical dosing, water systems |
|
Angle |
Moderate |
Space-limited installations, high pressure |
Reduced erosion |
Pump discharge, high-pressure drops |
|
Y-Pattern |
Lowest |
Slurry, viscous, solids-laden media |
Near-linear |
Pulp, slurry, high-viscosity fluids |
Flow Direction Matters – Globe valves are directional. For low-temperature and low-pressure applications, install with pressure below the disc to ensure smooth operation. For high-temperature and high-pressure steam applications, install with pressure above the disc to improve sealing performance .
Avoid Throttling at Very Low Openings – Operating a globe valve at very small openings can cause rapid erosion of seat and disc surfaces due to high-velocity flow, especially with abrasive media .
Mounting Position – Globe valves can be installed in any orientation, but vertical installation with the handwheel on top is preferred for accessibility. For angle-type globe valves, consider the space requirements for actuation .
Consider Actuator Selection – For automated applications, choose actuators (pneumatic, electric, electro-hydraulic) based on required speed, force, and control precision . Balanced plug designs reduce actuator force requirements .
Trim Material Matching – Ensure seat and disc materials are compatible with the process media, temperature, and pressure to maximize valve life .
|
Valve Type |
Common Material |
Typical Standards |
Temperature Range |
|
Stainless Steel Globe Valve |
SS304, SS316, CF8, CF8M |
GB/T12239, ANSI, DIN |
-196°C to 650°C |
|
WCB Globe Valve |
WCB (A216) |
GB/T12239, ASME B16.34 |
-29°C to 425°C |
|
API Globe Valve |
A105, F304, F316 |
API 602, API 600, API 623 |
-29°C to 550°C |
|
Bellows Globe Valve |
A105, F304, F316 |
GB/T12239, DIN, API |
-196°C to 650°C |
|
Forged Steel Globe Valve |
A105, F11, F22, F316 |
API 602, ASME B16.34 |
-29°C to 550°C |
|
Y-Type Globe Valve |
WCB, CF8, CF8M, A105 |
GB/T12239, ASME B16.34 |
-29°C to 550°C |
Stainless Steel Globe Valve for corrosive media, food/pharmaceutical applications, or chloride-containing environments.
WCB Globe Valve for general non-corrosive water, steam, and oil services within moderate temperature ranges.
API Globe Valve when oil and gas project specifications require compliance with API standards, fire-safety ratings, and fugitive emissions control.
Bellows Globe Valve for zero-leakage applications involving toxic, hazardous, or high-purity fluids where environmental compliance is critical.
Forged Steel Globe Valve for small-bore, high-pressure, high-temperature services demanding maximum strength and reliability.
Y-Type Globe Valve for slurry, viscous, solids-laden fluids, or applications where low pressure drop is essential.
