In the world of water management, few components are as critical as the humble gate valve. Yet, not all gate valves are created equal. The Flanged Resilient Gate Valve has emerged as the undisputed workhorse for modern water systems, offering a combination of zero-leakage reliability, corrosion resistance, and ease of operation that traditional metal-seated valves simply cannot match .
Whether you are a municipal engineer overseeing a city’s water supply, a building services consultant designing a high-rise’s distribution network, or a plant manager responsible for an industrial water treatment facility, understanding the capabilities of the flanged resilient gate valve is essential. This guide explores its critical role across five key applications, its standout features, and why it has become irreplaceable in the water industry.
A Flanged Resilient Gate Valve is a type of linear-motion valve used primarily for on/off isolation in pipeline systems. Its defining feature is a fully rubber-encapsulated (resilient) wedge that creates a tight, bubble-proof seal against the valve body when closed . Unlike traditional metal-seated gate valves where metal wedges press against metal seats, the resilient wedge deforms slightly to fill any imperfections, guaranteeing a leak-proof shut-off .
The “flanged” designation refers to the end connections. These flanges allow the valve to be bolted directly between matching pipe flanges, ensuring a secure, leak-proof connection that is also easy to install, remove, and maintain .
|
Feature |
Advantage |
|
100% Leak-Free Sealing |
The fully rubber-encapsulated wedge ensures a bubble-tight shut-off even under low pressure, exceeding metal-seated alternatives. |
|
Corrosion Resistance |
Ductile iron body with fusion-bonded epoxy coating (or as required) provides excellent resistance to rust, chemicals, and aggressive water conditions. |
|
Low Torque Operation |
Optimized wedge geometry and low-friction stem nut reduce operating torque, making it easy to open/close even in large diameters. |
|
Bidirectional Sealing |
Seals equally well against pressure from either direction, simplifying installation and avoiding orientation errors. |
|
Long Service Life |
Resilient rubber wedge resists abrasion, debris, and aging. With 12-step in-house testing, our valves are built for decades of reliable service. |
|
Flanged End Connection |
Standardized drilling (DIN / ANSI / ISO) allows direct bolting to mating pipe flanges. Easy to install, remove, and maintain. |
|
Rising or Non-Rising Stem Options |
Available in rising stem (visual position indicator) or non-rising stem (for underground or limited-space installations). |
|
Compliance with Global Standards |
Designed and tested to meet GB, JB, HB, ASME, API, AWWA, DIN, EU, ISO — ready for projects anywhere in the world. |
Design Standards: BS5163, DIN F4/F5, ANSI, GB, AWWA, ISO
Diameter Range: DN40 – DN1200 (2″ – 54″)
Pressure Range: PN10/16/25 (Class 150/250)
Body Material: Ductile Iron (GGG50) with fusion-bonded epoxy coating
Wedge Material: Ductile iron core fully encapsulated with EPDM rubber
Operation: Manual handwheel, Square Cap, or Extension Spindle
For decades, metal-seated gate valves were the standard. However, resilient seated gate valves have now become the most common choice for water and wastewater applications.
Guaranteed Zero Leakage: The rubber-encapsulated wedge provides Class A sealing, ensuring bubble-tight shut-off even under low pressure .
Low Operating Torque: Reduced friction between the rubber wedge and the valve body makes them much easier to operate, reducing the need for costly gearboxes .
Corrosion Resistance: The use of ductile iron bodies with fusion-bonded epoxy coatings provides excellent protection against rust and aggressive water conditions, both internally and externally .
Reduced Water Hammer: The rubber wedge can absorb pressure spikes better than metal, helping to mitigate water hammer effects in the pipeline .
Self-Cleaning & Full Bore: The smooth, full-bore design with no pockets or cavities at the bottom minimizes pressure loss, reduces sediment buildup, and allows for pipeline pigging .
Long Service Life & Low Maintenance: High-quality manufacturing with vulcanized rubber and robust materials means these valves are built for decades of reliable service. The design also allows for easy maintenance, and on many models, the stem seal can be replaced under pressure .
In water systems, the Flanged Resilient Gate Valve plays a critical role as a reliable shut-off and isolation device.
|
Function |
Description |
|
Flow Isolation |
Used to completely stop or allow water flow in pipelines for maintenance, repair, or emergency shutdown. |
|
Sectional Control |
Divides a large water network into manageable sections, enabling localized shutdown without affecting the entire system. |
|
Pump & Station Protection |
Installed at pump stations and reservoir outlets to protect equipment from backflow or unexpected flow surges. |
|
Pressure Management |
When fully open, it offers near-zero flow resistance, helping maintain consistent pressure in transmission mains. |
|
Safe Maintenance |
Provides a positive shut-off for safe repair of downstream components like meters, valves, or hydrants. |
The Flanged Resilient Gate Valve’s unique combination of features makes it the primary isolation device across the water cycle. Below is a breakdown of its essential role in five key areas.

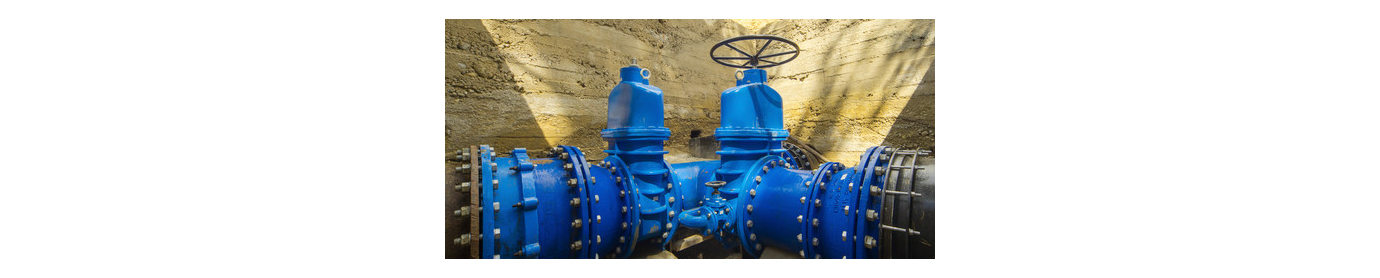

The Challenge: Cities depend on vast, complex networks of transmission mains and distribution pipes to deliver clean drinking water. Maintenance, repairs, and emergency responses require isolating specific sections without disrupting the entire system.
The Solution: Resilient gate valves are installed at critical points throughout the network. Their role is to divide the large network into manageable sections, enabling localized shutdowns . When fully open, they offer near-zero flow resistance, helping maintain consistent pressure in transmission mains. Their zero-leakage sealing is crucial for preserving treated water and preventing contamination.
Why Irreplaceable: The valves’ ability to provide a reliable, bubble-tight seal with low operating torque is indispensable for minimizing water loss and ensuring the integrity of the water supply.
The Challenge: Modern high-rise buildings and large complexes have intricate internal water networks for domestic use, heating, and cooling. Shutting down the entire building to service a single riser or floor is impractical.
The Solution: Flanged resilient gate valves act as sectional isolation valves on each riser and main branch. This allows maintenance to be performed on a single section without affecting the rest of the building. Their compact design (particularly in non-rising stem configurations) makes them suitable for tight plant rooms and riser cupboards.
Why Irreplaceable: They provide a dependable and leak-proof shut-off for essential maintenance, minimizing disruption to occupants and preventing costly water damage.
The Challenge: Fire sprinkler and hydrant systems must be absolutely reliable. Any failure, leak, or blockage could have catastrophic consequences.
The Solution: Resilient gate valves are used as the main isolation valves for fire pumps and for sectional control within fire protection systems. They provide a positive shut-off for the safe maintenance of pumps, meters, and other components .
Why Irreplaceable: The long-term reliability of the resilient wedge is paramount. Water in fire systems can sit stagnant for years. Rubber-encapsulated wedges are resistant to this stagnation and aging, providing peace of mind that the valve will function when needed. They are also often certified for use in drinking water applications, which is relevant for combined fire/domestic systems.
The Challenge: Large-scale agricultural and landscape irrigation networks cover vast areas and are exposed to the elements. Drainage systems handle stormwater and wastewater laden with debris.
The Solution: These valves provide reliable isolation for pumps and canal gates. Their corrosion-resistant coatings (internal and external) protect them against soil and weather conditions . The smooth flow path allows for the passage of water with mild debris, minimizing clogging.
Why Irreplaceable: Their durability and resistance to corrosion make them an ideal, low-maintenance choice for outdoor and harsh environments. They are also often the most cost-effective isolation solution for large diameters in these networks .
The Challenge: Treatment plants (drinking water, wastewater, and industrial process water) use a complex series of tanks, filters, and pumps. Isolating sections for maintenance is a constant requirement.
The Solution: Resilient gate valves are installed on pump stations, filter inlets and outlets, and reservoir connections to protect equipment from backflow or unexpected flow surges .
Why Irreplaceable: Their chemical resistance (EPDM rubber is suitable for a wide range of pH levels and chemicals) and their ability to withstand the wear and tear of treatment plant environments make them a long-lasting asset. Their low maintenance design is a key benefit in plants that operate 24/7.
Correct installation is critical to ensure the valve performs as expected and has a long service life. Here are the key steps to follow :
Inspect the Valve: Verify the valve model, size, and pressure rating match the design specifications. Check for any damage to the body or flanges that may have occurred during transit.
Clean the Pipeline: Ensure the pipeline is free of dirt, sand, welding slag, and other debris. This is crucial to prevent damage to the sealing surfaces .
Prepare Tools and Gaskets: Have the correct wrenches, bolts, gaskets, and PTFE tape ready.
Check Flow Direction: While resilient gate valves are typically bidirectional, ensure the valve is properly oriented for the specific system design .
Flange Alignment: Align the valve flanges between the pipe flanges. Use a level to ensure the valve stem is vertical (for horizontal pipelines) .
Insert Bolts and Gaskets: Place a suitable gasket between the valve and pipe flanges. Insert the bolts.
Tighten Bolts Evenly: Tighten the bolts in a star or cross pattern (diagonal sequence) to ensure uniform compression of the gasket and prevent twisting the valve body. Do not fully tighten one side before the other .
Hydrostatic Test: Conduct a pressure test (typically at 1.5 times the nominal pressure) to check for any leakage from the flange joints or the valve body itself .
Operate Slowly: Open and close the valve slowly to prevent water hammer and protect the sealing surfaces .
Do Not Over-Torque: Use the handwheel or gearbox as intended. Do not use a lever to force the valve, as this can damage the stem .
Regular Inspections: For valves used infrequently, operate them through a full cycle at least once a month to prevent sediment build-up and keep the mechanism free .
Check Stem Seal: Periodically inspect the stem seal area. If leakage occurs, tighten the packing nuts slightly. If tightening does not stop the leak, the packing may need to be replaced .

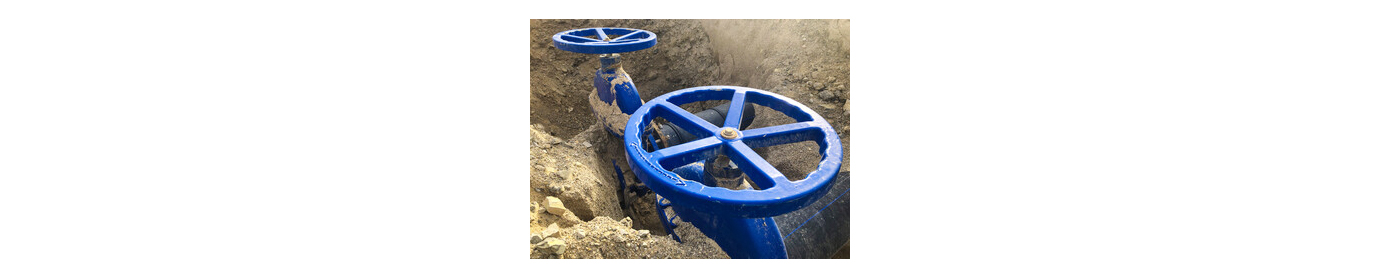

Buried Service: For underground installation, ensure the valve is designed for buried service. After installation, the valve can be operated via an extension spindle .
The Flanged Resilient Gate Valve is much more than a simple on/off device. It is a fundamental building block of modern water infrastructure. Its ability to provide a guaranteed leak-free seal, combined with its corrosion resistance, low maintenance, and ease of operation, makes it the preferred choice for engineers worldwide.
From ensuring you have clean water from your tap to protecting a city from fire, these valves work tirelessly behind the scenes. The flanged resilient gate valve has truly revolutionized water system management, and its role is irreplaceable in the quest for efficient, safe, and sustainable water use.
