In modern water systems—from municipal supply networks to industrial treatment plants—the need for reliable, efficient, and cost-effective flow control is paramount. Traditional gate valves, while effective, are bulky, heavy, and slow to operate. Enter the Multi-Standard Wafer Butterfly Valve: a compact, lightweight, and highly adaptable solution that has become the preferred choice for isolation and regulation in water applications worldwide .
What sets this valve apart is its remarkable multi-standard compatibility—it is designed to fit between flanges of various international standards, including EN1092 (PN10/PN16), ASME B16.5 (Class 150), JIS B2239 (10K/16K), and BS10, eliminating the need for project-specific customisation and simplifying global procurement . Whether you are managing a municipal water network, a chemical plant, or a shipbuilding project, understanding the capabilities of this valve is essential for making informed engineering decisions.

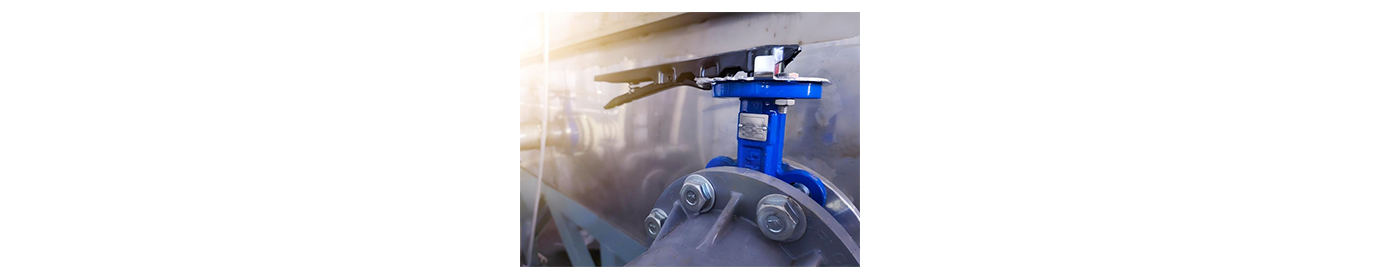

A Multi-Standard Wafer Butterfly Valve is a concentric (resilient-seated) butterfly valve designed to be clamped between two pipe flanges. Its core mechanism is simple yet effective: a circular disc rotates 90° within the pipe bore to open, close, or regulate flow .
The “wafer” body style means the valve does not have its own flanges; instead, it is secured between the flanges of the connecting pipes using through-bolts. This design, combined with the cartridge-type seat, results in a valve that is significantly lighter, more compact, and easier to install than equivalent gate valves .
|
Parameter |
Details |
|
Design Standards |
GB/T12238, API 609, JIS B2032, DIN 3354, BS 5155, DIN EN593 |
|
Diameter Range |
DN50 – DN1200 (2″ – 48″) |
|
Pressure Range |
PN6/PN10/PN16 / CLASS 150 / 5K / 10K |
|
Temperature Range |
-40°C to +180°C (depending on seat material) |
|
Body Materials |
DI (Ductile Iron), WCB, CF8, CF8M, CF3M |
|
Seat Materials |
EPDM, NBR, PTFE, VITON |
|
Media Compatibility |
Water, Oil, Gas, and mild chemicals |
The valve features alignment holes that match multiple flange standards including EN1092 PN10/16, ASME B16.5 Class 150, JIS B2239 10K/16K, and BS10. This eliminates the need for custom adapters or project-specific redesigns, making it ideal for international projects .
Compared to gate valves of the same diameter, a wafer butterfly valve is significantly lighter and has a much shorter face-to-face dimension . This results in lower material costs, reduced structural support requirements, and quicker installation. As one industry publication notes, butterfly valves tend to be cheaper and more compact than gate valves for sizes above DN500 .
The resilient seat (typically EPDM or PTFE) provides Class A sealing, ensuring zero leakage when closed. This drop-tight sealing capability is critical for water conservation and environmental protection .
When fully open, the disc offers minimal obstruction, resulting in low pressure drop and energy-saving operation. The flow characteristic approximates a linear curve, making it suitable for regulating flow in addition to simple isolation .
The concentric disc design requires significantly less torque to operate than gate or globe valves. This allows for manual operation with a simple lever handle (up to DN200) and straightforward automation with electric, pneumatic, or hydraulic actuators .
The valve body and disc can be supplied in a range of materials—including Ductile Iron, WCB, and various grades of stainless steel (CF8, CF8M, CF3M)—to suit different water qualities and chemical environments. Seat materials such as EPDM, NBR, and PTFE can be selected based on temperature and media compatibility .
The Multi-Standard Wafer Butterfly Valve is not just another valve; it has become irreplaceable in specific applications due to its unique combination of features.
Where Gate Valves Are Impractical: In large-diameter piping (DN500 and above), gate valves are extremely heavy, expensive, and require large pits for installation. Wafer butterfly valves provide a cost-effective, space-saving alternative for the same isolating function .
Space-Constrained Installations: In pump stations, treatment plants, and shipbuilding, space is at a premium. The compact wafer design fits where a gate valve simply cannot.
Frequent Operation: For systems that require regular opening and closing (e.g., filter backwashing), the quick 90° operation and low torque of a butterfly valve are far superior to the multi-turn operation of a gate valve.
Diverse Fluid Conditions: The ability to select different body and seat materials allows the same valve design to be used across various media—from potable water and sewage to seawater and mild chemicals .
Global Project Standardization: Engineers procuring for multinational projects can use a single valve design that fits multiple flange standards, simplifying inventory and reducing the risk of compatibility errors .
|

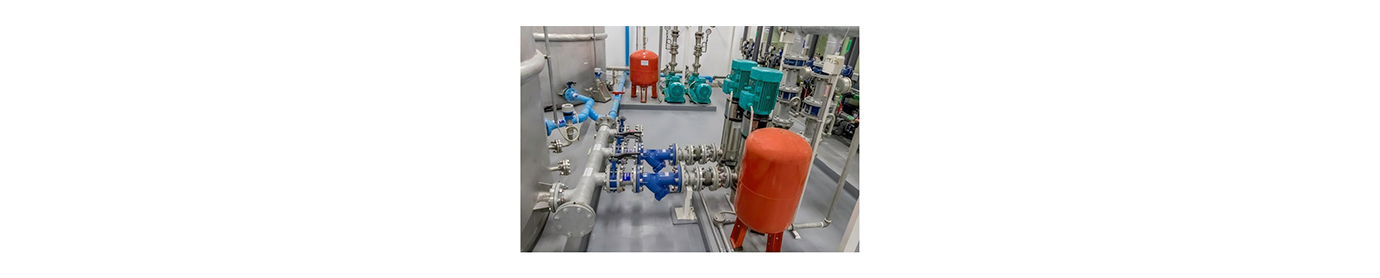

Industry / Application |
|
|
Water Supply & Drainage |
Primary isolation and flow regulation in municipal networks, pumping stations, and building water distribution systems . |
|
Sewage / Wastewater Treatment |
Isolation and control in influent/effluent lines, sludge handling, and aeration tank systems. The EPDM-lined disc and body resist corrosion and abrasion . |
|
Chemical Industry |
On/off and regulating service in pipelines handling mild corrosive media (e.g., dilute acids and alkalis). Stainless steel and PTFE options provide chemical resistance . |
|
Power Generation |
Cooling water, circulating water, and demineralized water systems. The valve’s quick operation is beneficial for emergency shut-off . |
|
Desulfurization Systems |
Handling limestone slurries and gypsum wastewater. The resilient seat provides drop-tight sealing, preventing leakage of abrasive media . |
|
Shipbuilding (Marine) |
Seawater cooling, ballast, and bilge systems. Materials such as aluminum bronze and 316 stainless steel provide excellent resistance to seawater corrosion . |

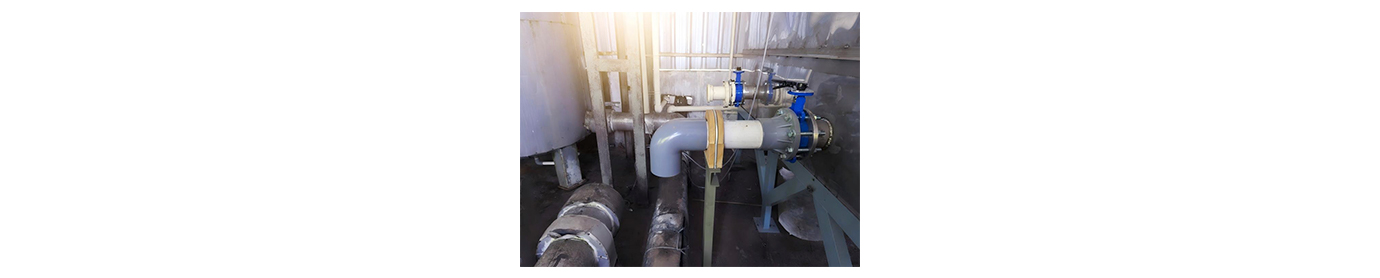

Pre-Installation:
Inspect the Valve: Check for any damage to the disc, seat, or flange faces.
Clean the Pipeline: Ensure the pipe is free from debris that could damage the rubber seat.
Positioning:
Centering: The valve must be perfectly centered between the two pipe flanges. The wafer design relies on the flanges to secure it. Do not use the valve as a pipe end or for dead-end service unless it is a lugged type .
Orientation: For horizontal pipelines, it is generally recommended to install the valve with the stem vertical to reduce wear from sediment.
Bolt Installation:
No Gaskets Required: The cartridge-style seat on many multi-standard wafer butterfly valves often serves as its own flange gasket, eliminating the need for separate gaskets .
Install in Closed Position: Insert the valve with the disc slightly closed (5-10°) to protect the seat during centering.
Tighten Bolts Evenly: Insert the flange bolts through the alignment holes. Tighten the nuts in a star pattern to ensure even compression and prevent body distortion. Do not overtighten.
The Smart Choice for Modern Water Systems
The Multi-Standard Wafer Butterfly Valve is more than just a cost-effective alternative to the gate valve; it is a technologically advanced solution that addresses the specific demands of modern water systems. Its compact size, lightweight design, and multi-standard compatibility, combined with reliable, drop-tight sealing, make it an irreplaceable component for engineers and operators worldwide. Whether you are building a new water treatment plant, upgrading a pumping station, or designing a marine system, this valve offers a proven and versatile solution for your flow control needs.
